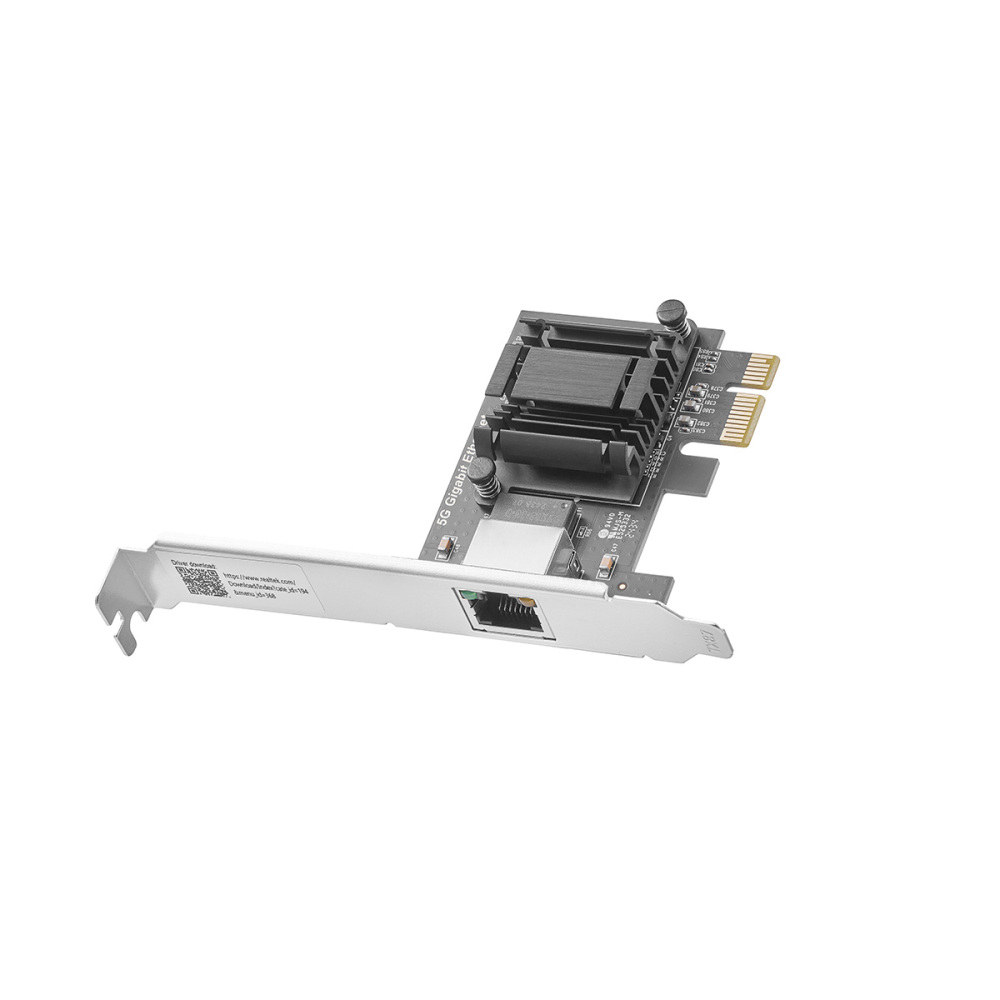

Single-Port 5Gbps PCIe Ethernet Adapter - RTL8126 Controller, RJ45 NIC with Low-Profile Bracket, PXE Support for Windows 11/10 & Linux

SKU: NA5G1

$48.99

5Gbps Network Performance - This network card delivers up to 5 Gigabits of speed, powered by the Realtek RTL8126 chip. It supports auto-negotiation for 5Gbps/2.5Gbps/1Gbps/100Mbps/10Mbps and is compatible with standard Cat5e or higher UTP cables over distances up to 100m (328 feet).
PCIe Slot Compatibility - Compatible with PCIe X1, X4, X8, and X16 slots. It comes with a standard bracket and a low-profile bracket, supporting versatile installations in devices such as PCs, servers, workstations, and NAS. Note: Not compatible with PCI slots.
Multi-OS Support - Supports Windows 11/10 and Linux kernel up to 6.4. Drivers are easily downloadable via CD-ROM, the driver link provided on the bracket, or Realtek’s official website.
Network Features - Supports PXE, Auto MDIX, IEEE 802.1Q VLAN tagging, IEEE 802.3bz (2.5GBASE-T/5GBASE-T), full-duplex flow control (IEEE 802.3x), Wake-on-LAN, and 16 KB jumbo frames.

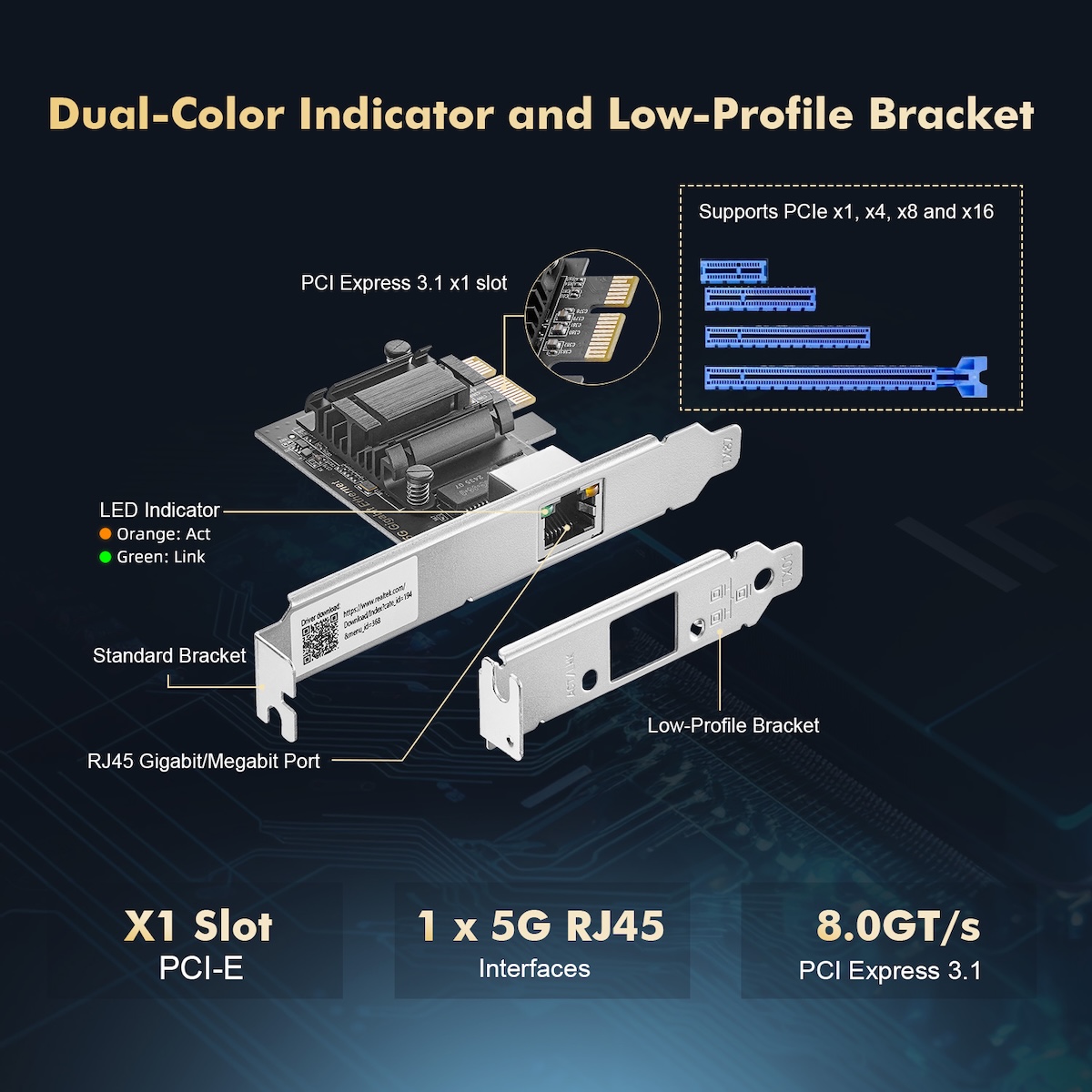

Easy to Use - Select the suitable bracket based on your chassis size, insert it into the PCIe slot, install the driver, and connect to the network. LED indicators display link status and speed. If you have any questions, feel free to contact us.

Received successfully

Coupon Code

Product Specifications

Multi-Gigabit Ethernet connectivity with four network speeds: 5G, 2.5G, 1G, 100Mbps, 10Mbps\

Compatible with both 5GBASE-T and NBASE-T specifications

Support 5Gbps network speed on CAT5e and CAT6a cabling

Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az and IEEE 802.3bz standards

Supports IEEE 802.1Q VLAN tagging, and IEEE 802.3x Fully Duplex Flow Control

Supports IEEE 802.1ad Double VLAN

Full and half duplex support

PXE network boot support

Transmit/Receive on-chip buffer support

Jumbo frame supports up to 16Kbytes

Wake-on-LAN (WOL) support

Complies with Microsoft and Linux platforms

Product Specifications

Model	NA5G1
Bus Type	PCI Express 3.1 (8 GT/s)
Bus Width	x 1 lane PCI Express, operable in x4, x8 and x16 slots
Card Type	Standard/Low Profile
Chipset ID	Realtek – RTL8126
Industry Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab IEEE 802.3az, IEEE 802.3bz
Interface	1x RJ45
Power Consumption	5Gbps – 1.8W
System and Cable Requirements	PCI Express enabled computer with an available PCI Express x 1 slot Gen 2.0 or higher (x4, x8, x16)
OS Compatibility	Windows® 10, 11 Linux kernel up to 6.4
Product Height	120 mm x 84mm x 22mm
LED Indicators	Link (Green) Act (Orange)
Humidity	20~80% RH
Operating Temperature	5°C to 50°C (41°F to 122°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
Included in Package	Single Port 5Gbps PCIe Network Card
