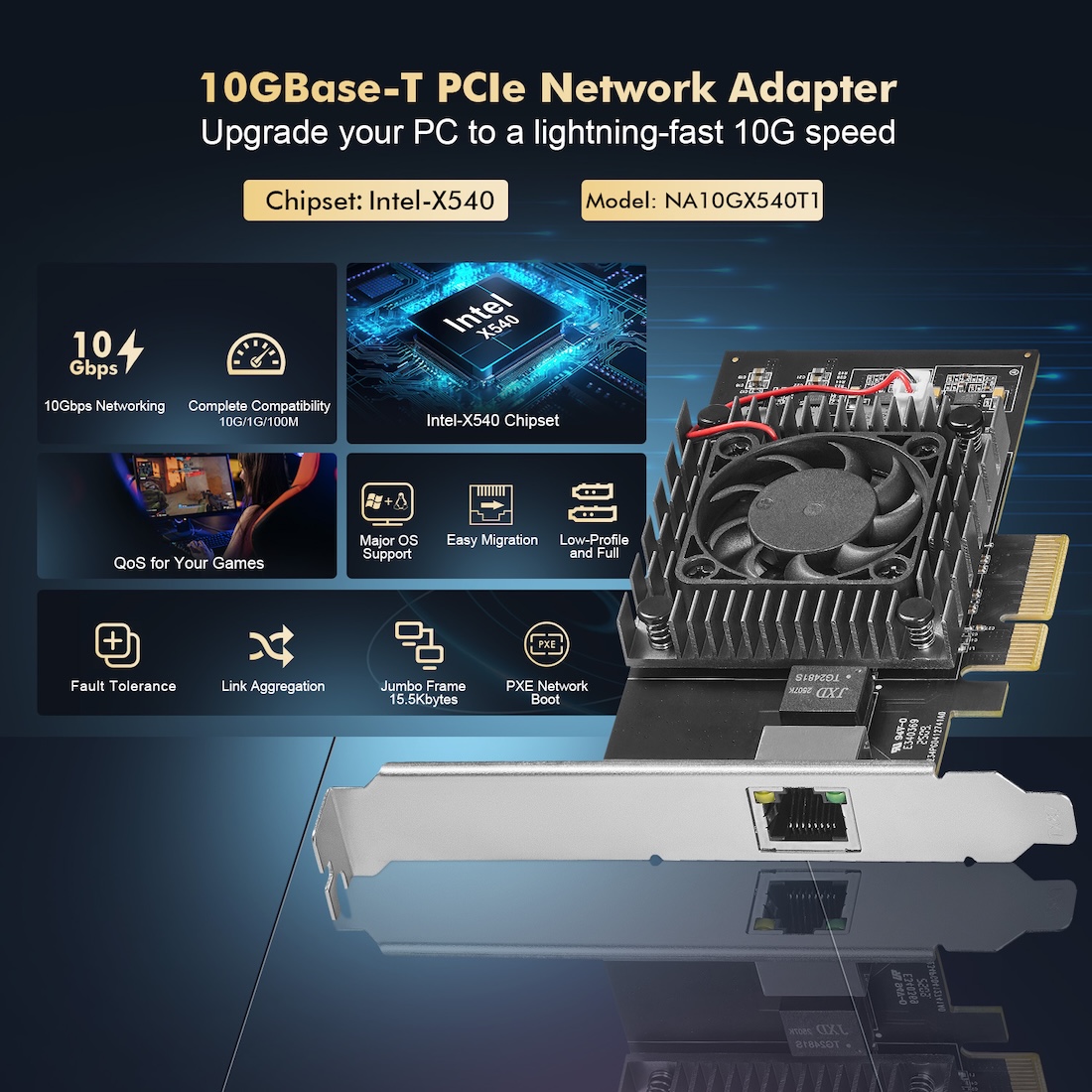

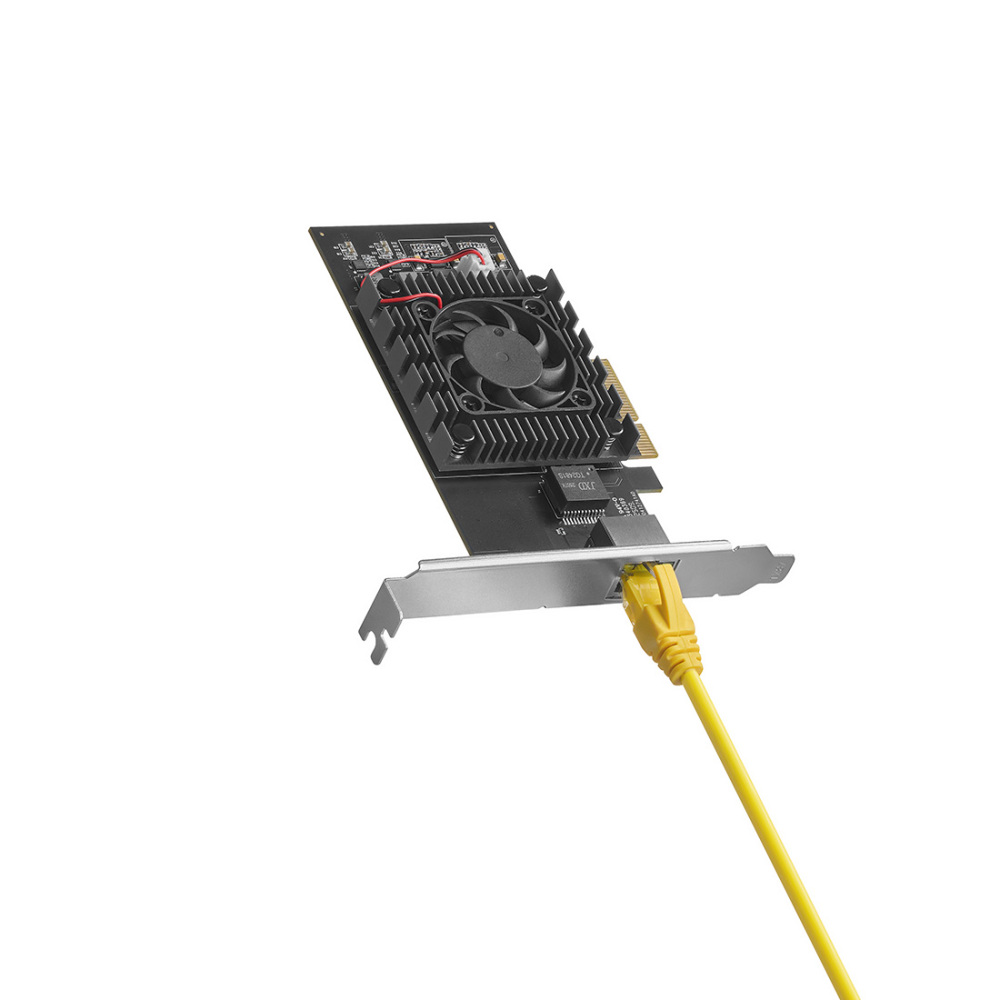

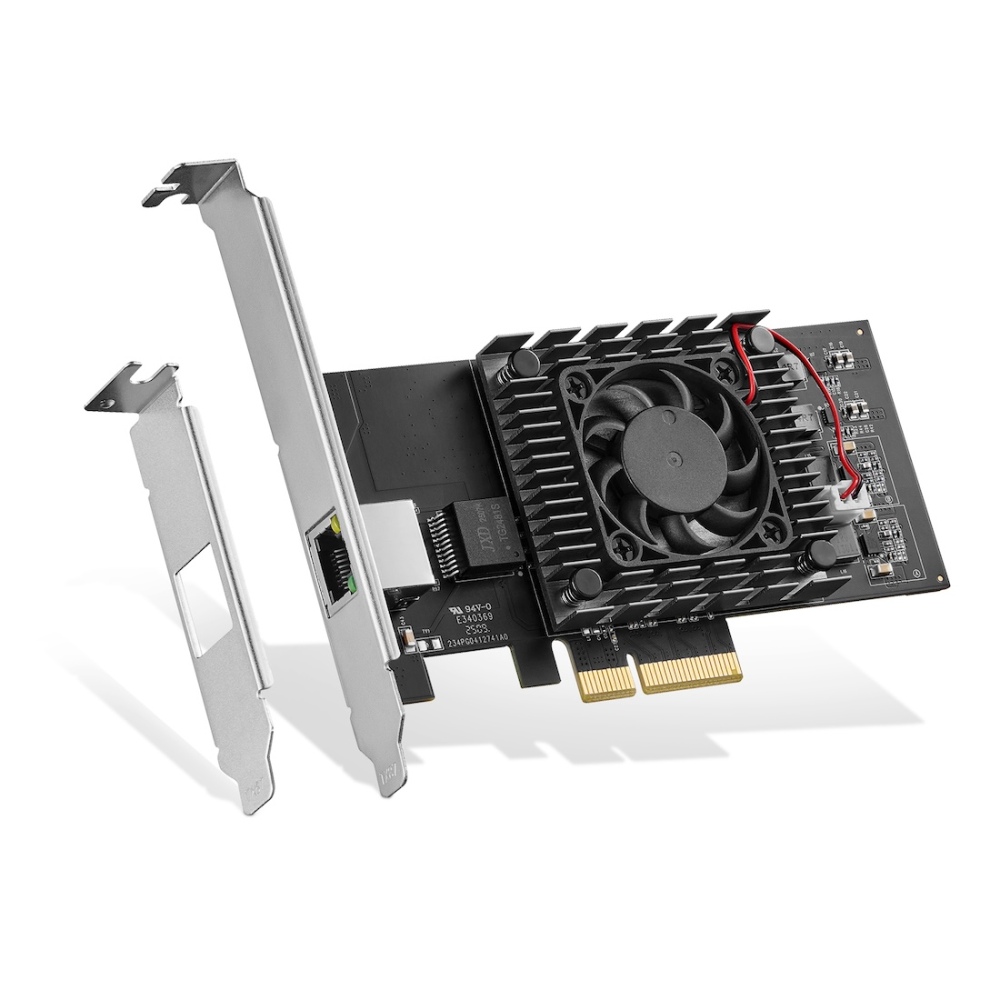

Single-Port 10Gbps PCIe Ethernet Adapter - Intel X540 Chipset, RJ45 NIC (10G/1G/100Mbps) for Windows & Linux
SKU: NA10GX540T1
$69.99
- 10Gbps Network Performance - This adapter features a single 10 Gigabit port, powered by the Intel X540 chip. It delivers 10Gbps over 100m Cat6a cables, and 1Gbps/100Mbps over 100m Cat5e/Cat6 cables. Note: 5Gbps/2.5Gbps speeds are not supported.
- PCIe x4 Slot Compatibility - Equipped with a PCI Express 8.0 GT/s bus, it is compatible with PCIe X4, X8, and X16 slots. It comes with a standard bracket and a low-profile bracket, supporting versatile installations in devices such as PCs, servers, workstations, and NAS. Note: Not compatible with PCI slots.

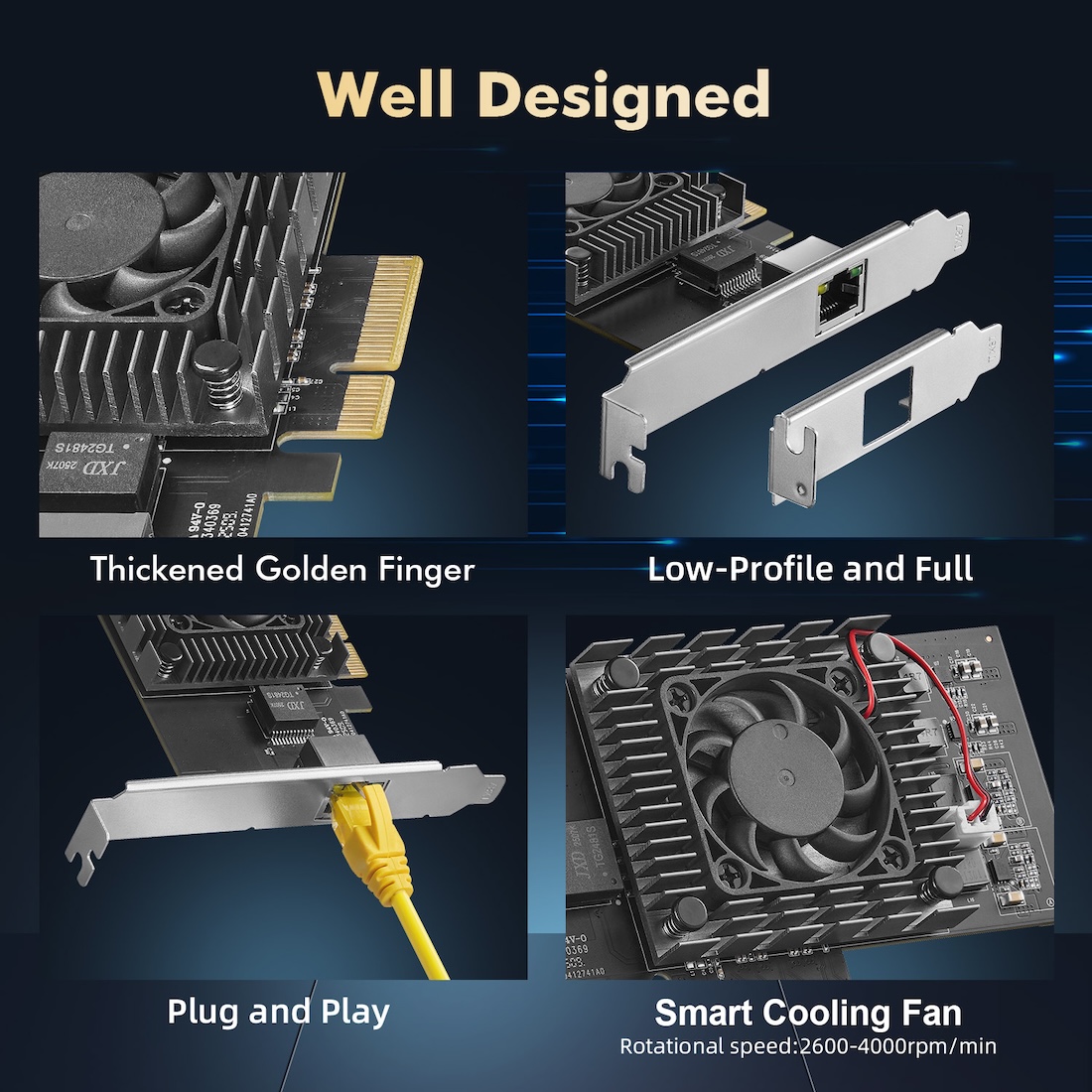

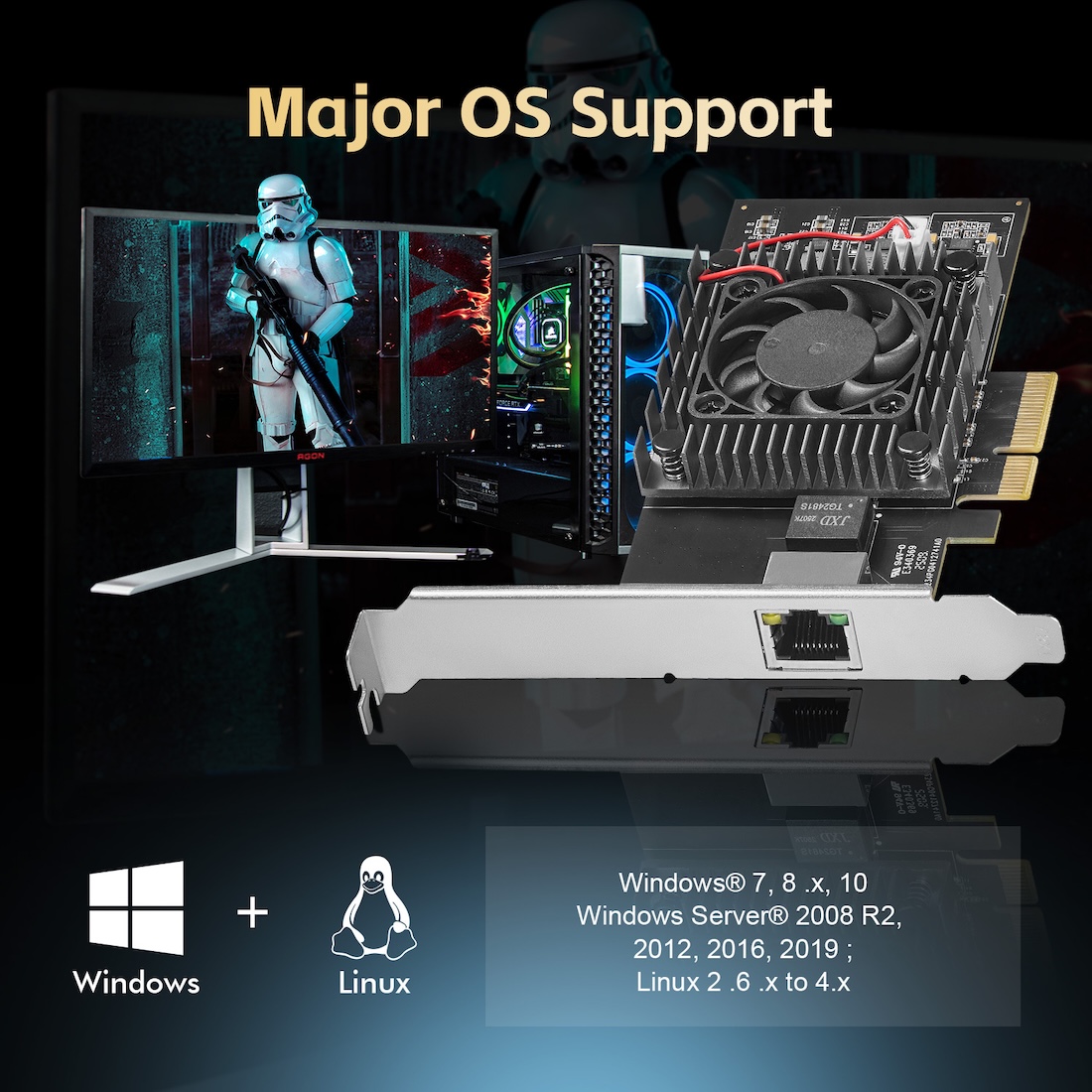

- Multi-OS Support & Efficient Heat Dissipation - Supports Windows 11/10/8.1/8/7/Server 2016/2012/2008 and Linux. Drivers are easily downloadable via CD-ROM or Intel’s official website. Additionally, it is equipped with an industrial-grade intelligent speed-control fan (noise ≤ 18dBA) for enhanced heat dissipation and long-term stable operation.
- Network Features - Supports PXE, Auto MDIX, QoS, IEEE 802.3an (10GBASE-T), full-duplex flow control (IEEE 802.3x), IEEE 802.1Q VLAN tagging, IEEE 802.1P Priority, 15.5 KB jumbo frames, Microsoft Hyper-V virtualization, and iSCSI.

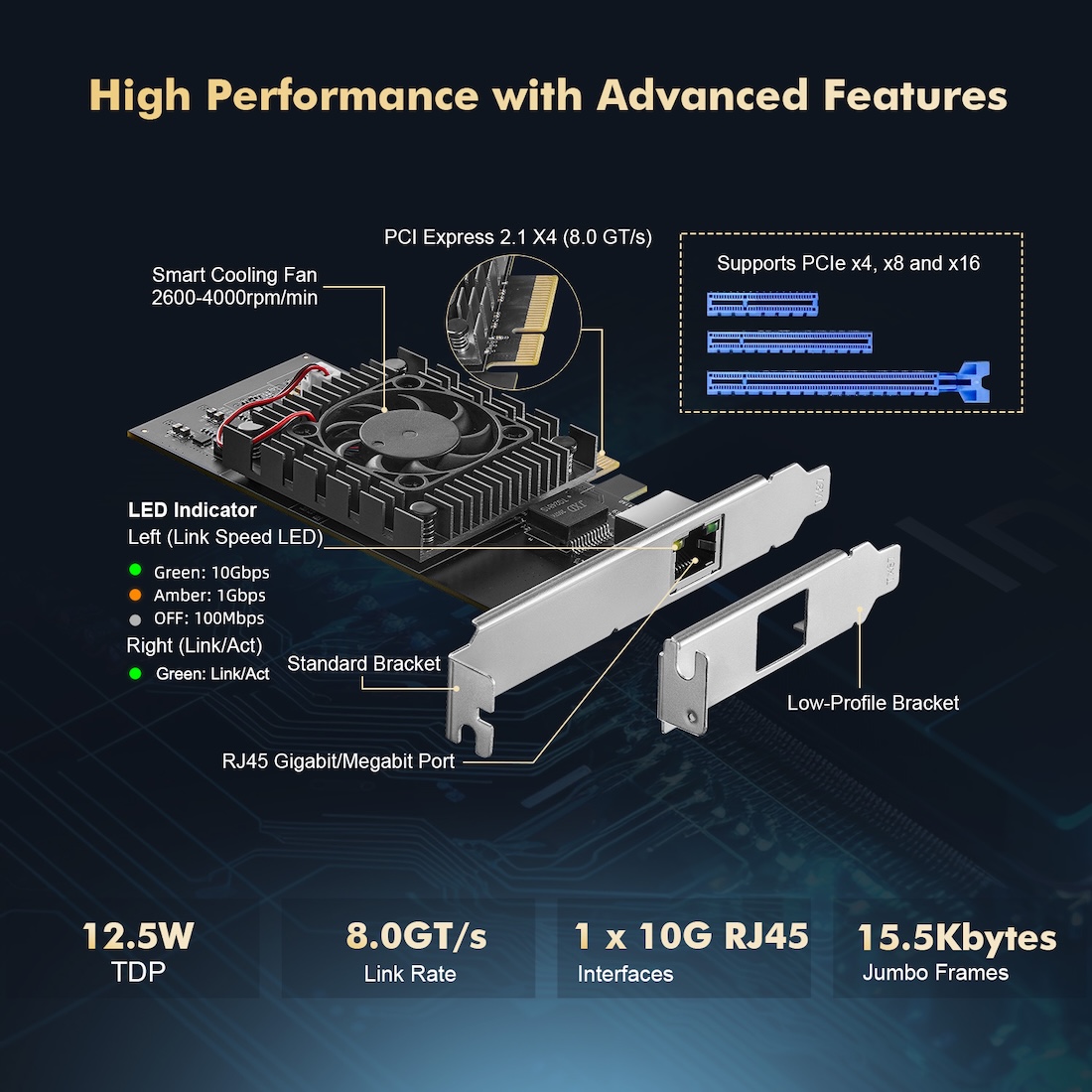

- Easy to Use - Select the suitable bracket based on your chassis size, insert the adapter into the PCIe slot, install the driver, and connect to the network. LED indicators display the link status and speed.
