PoE Passthrough Switch, 1 PoE in 4 PoE Out Extender, IEEE802.3af/at/bt PoE Powered 90W, 100Mbps Ethernet, Din Rail & Wall Mount Plug and Play
SKU: POE-BT14F
$38.99

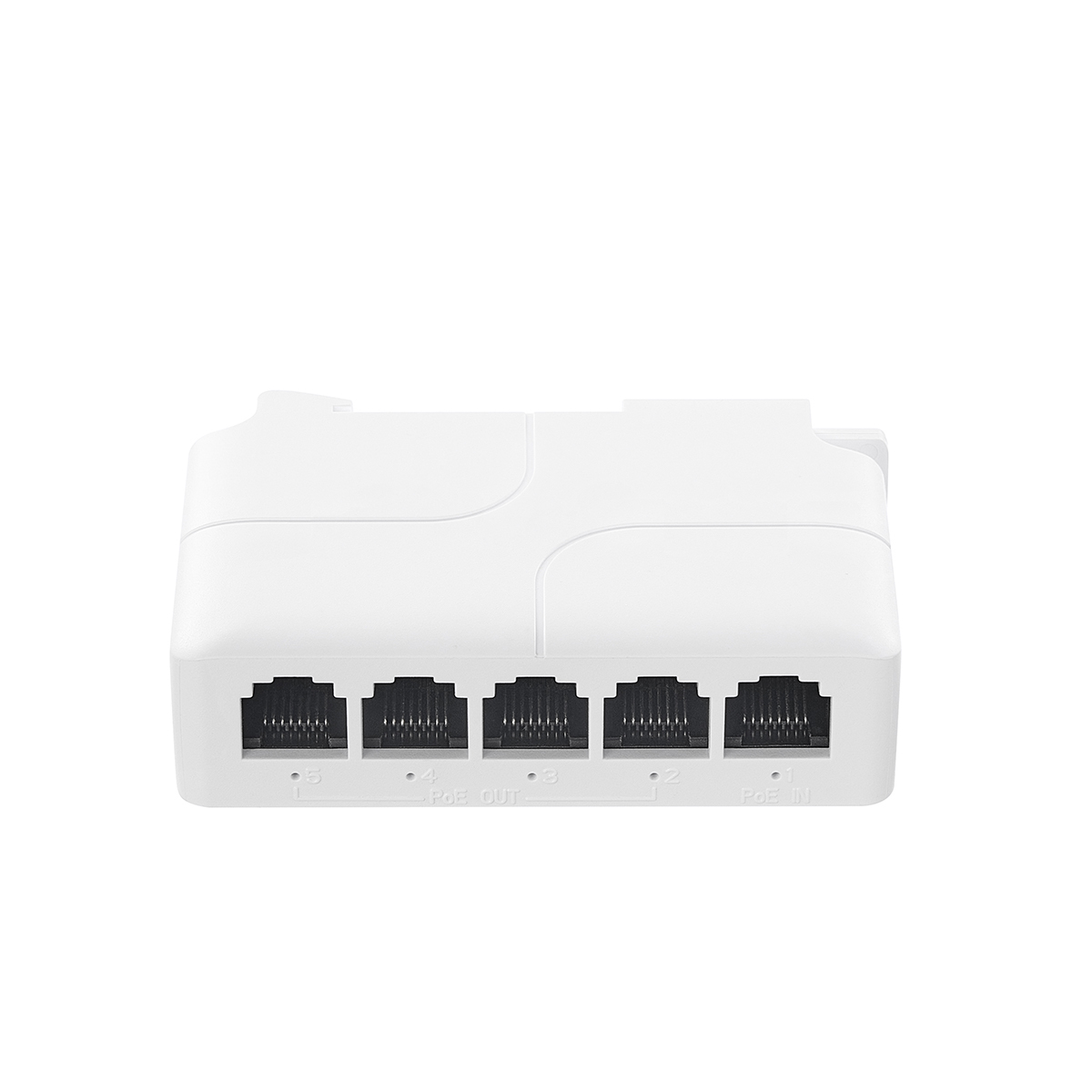

- PoE Passthrough - 1 PoE Input & 4 PoE Output Ports, 10/100Mbps Auto-Negotiation Rate. Powered via PoE Network, no AC power supply required

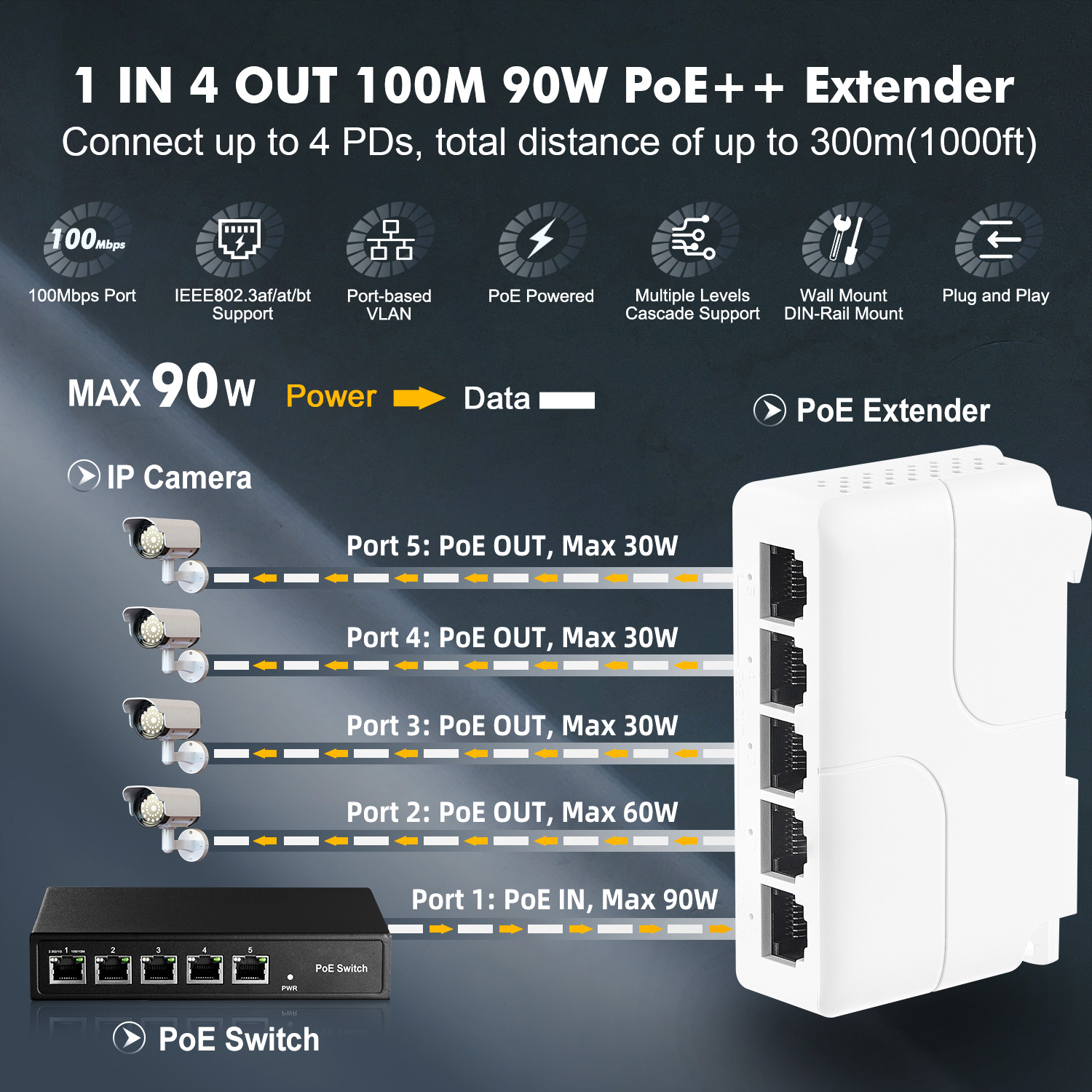

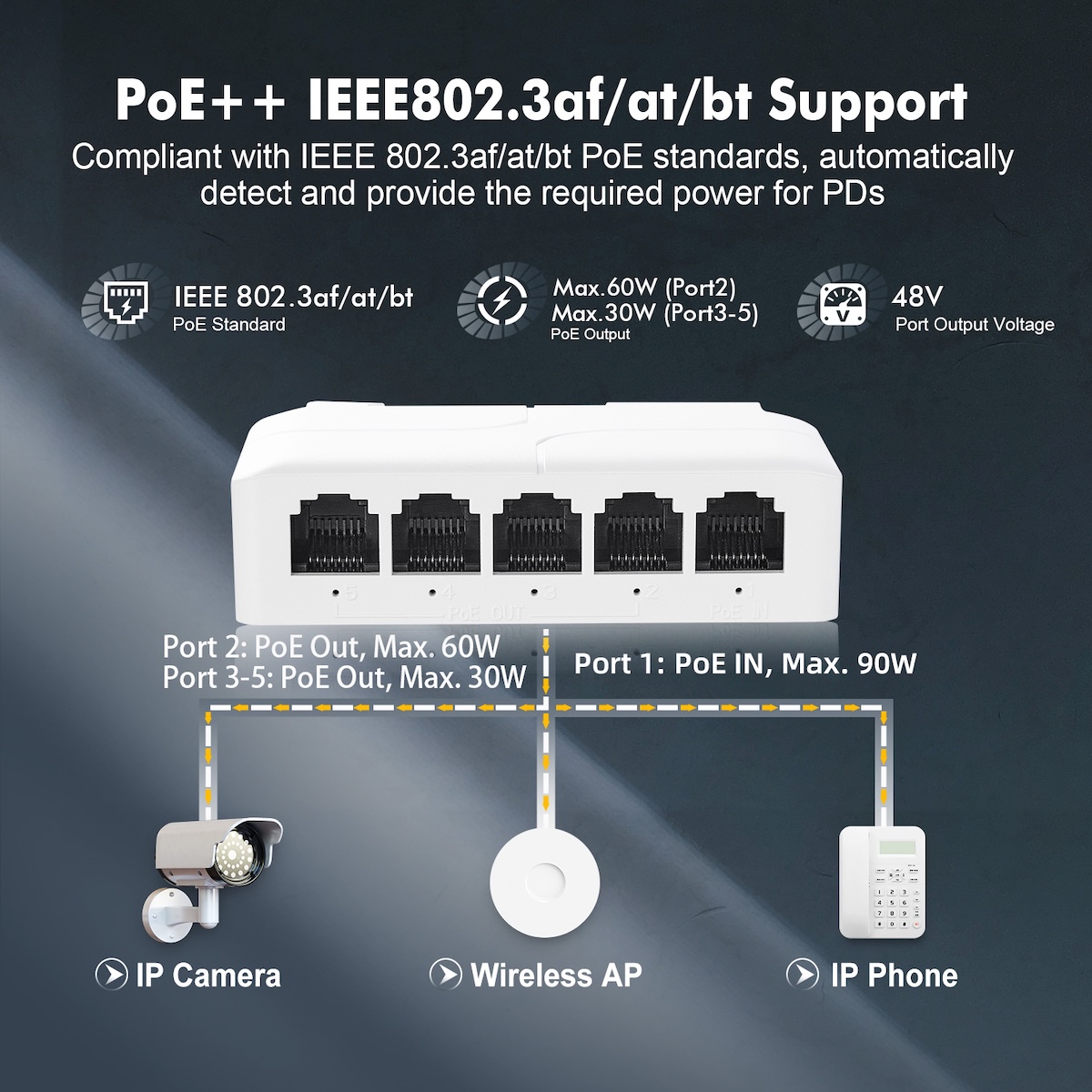

- IEEE 802.3 af/at/bt - Supports standard PoE protocols. Key specs: Port 1 (Input): Max. 90W (IEEE 802.3bt), Port 2 (Output): 60W (IEEE 802.3bt), Ports 3-5 (Output): Max. 30W each (IEEE 802.3at), PoE Voltage: 44-57 Vdc

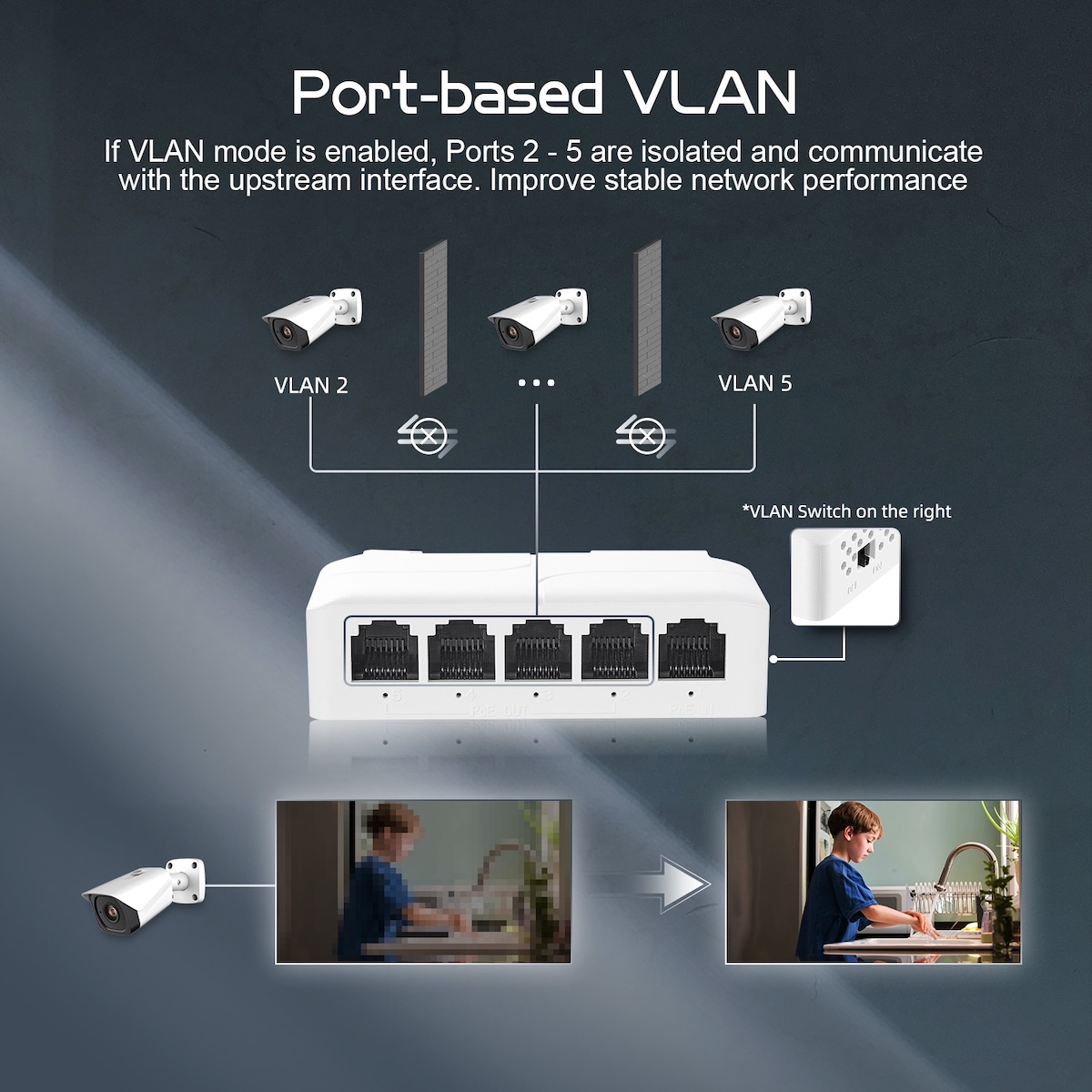

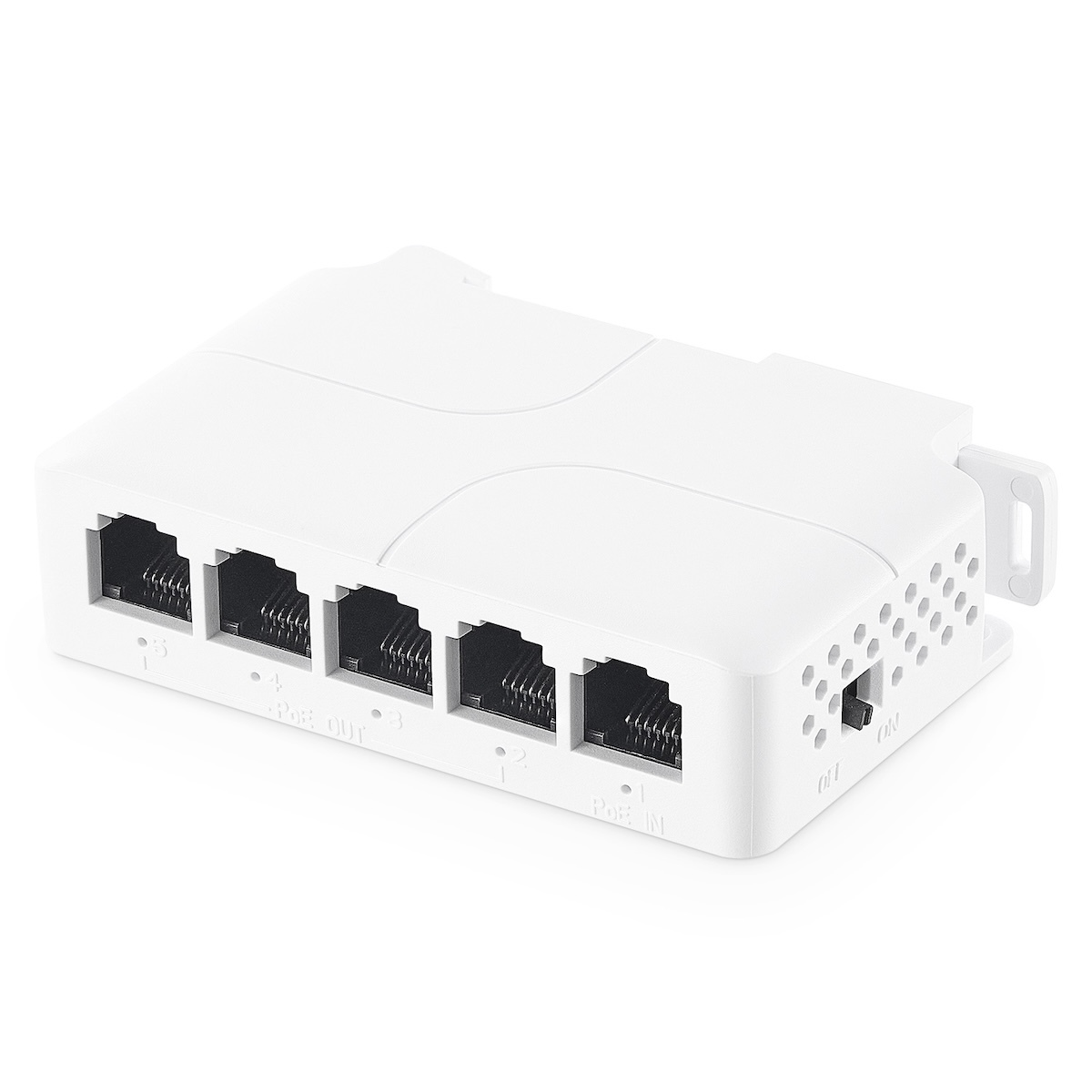

- VLAN & 250m Extend Mode - Supports VLAN Mode and 250m Extension Mode, controlled via DIP switch. When VLAN is enabled: PoE Output Ports 2-5 are mutually isolated, enhancing network security and improving port utilization. In Extend Mode: PoE transmission extends up to 250 meters at 10Mbps.

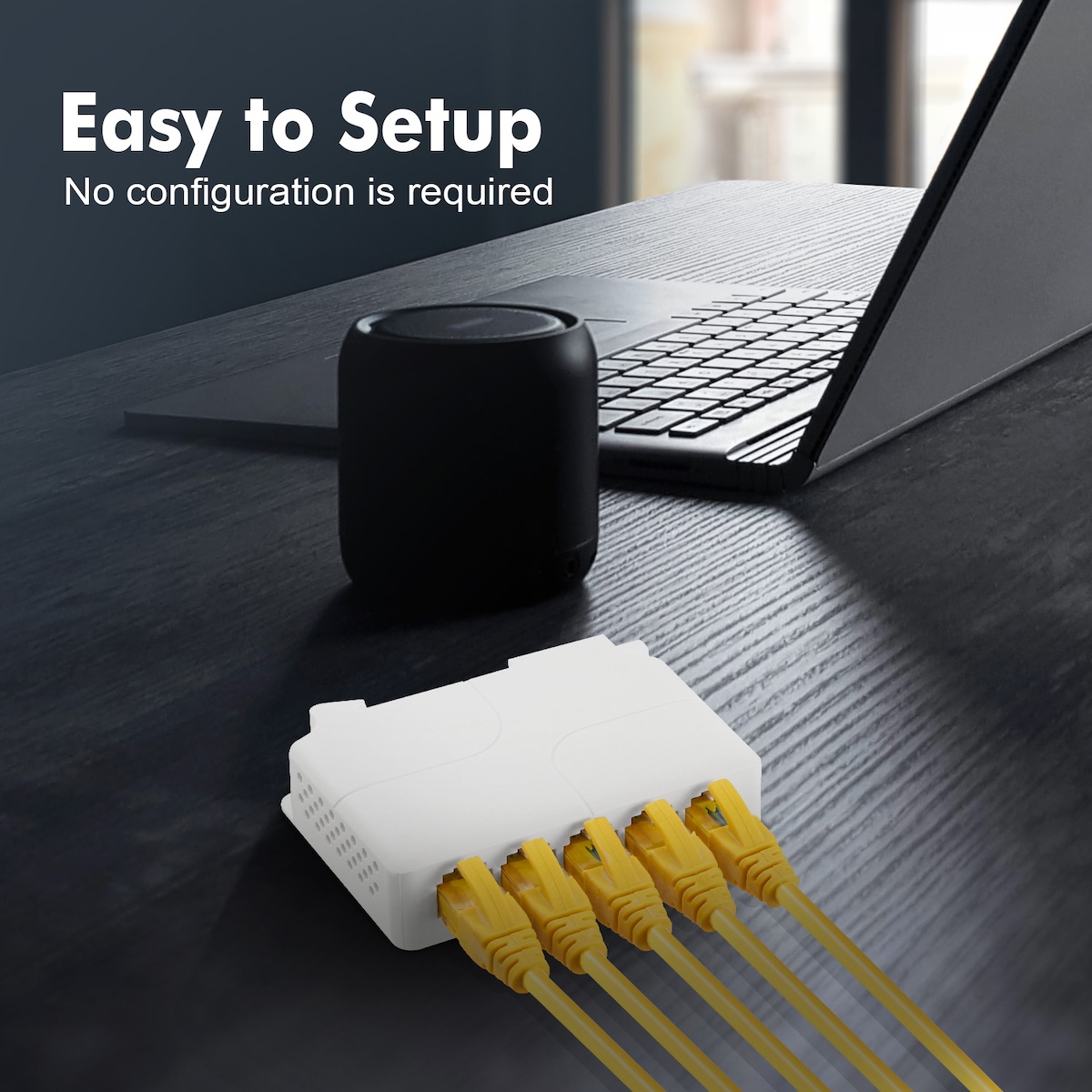

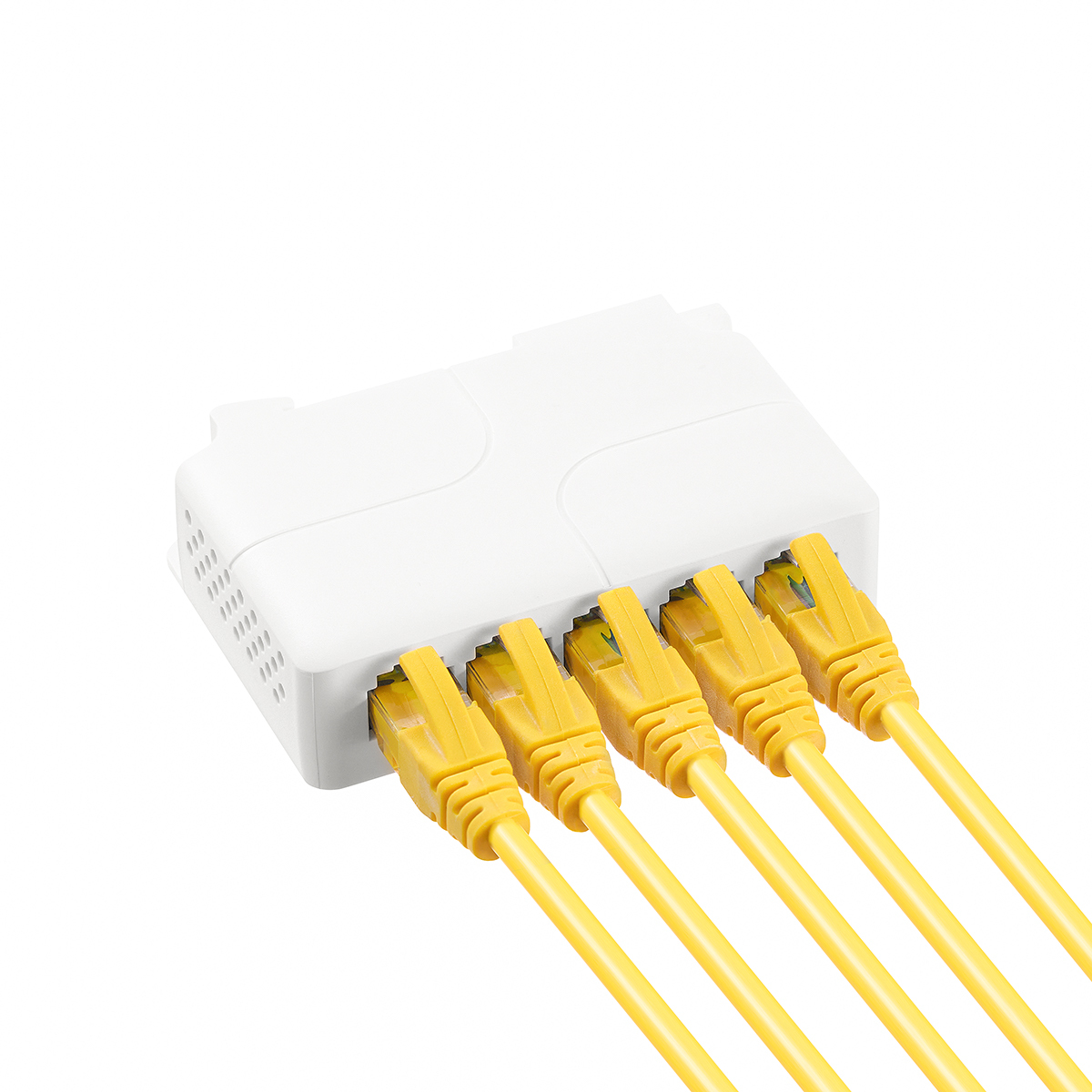

- Plug & Play - Supports automatic power detection for connected devices. Simply plug in the Ethernet cable and connect directly to the device (no manual configuration required); LED indicators display real-time port status. Note: Does not support 24V Passive PoE.

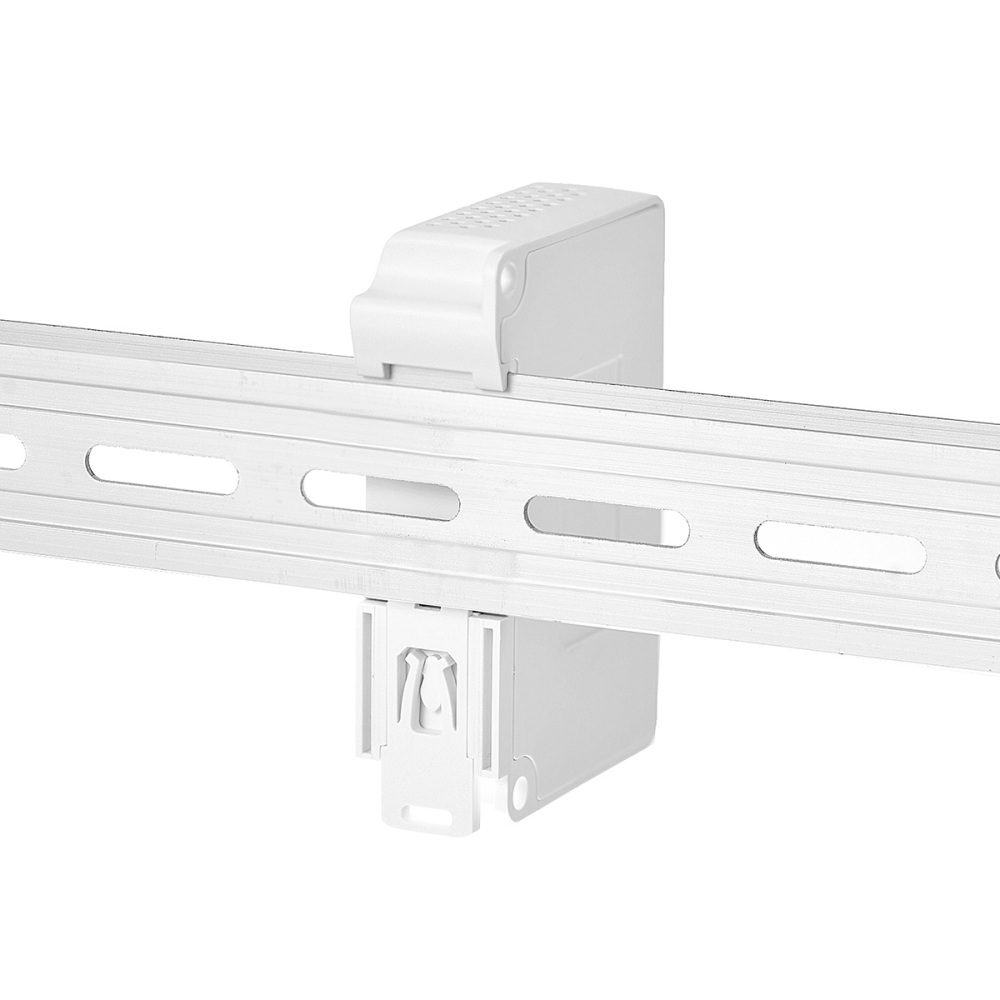

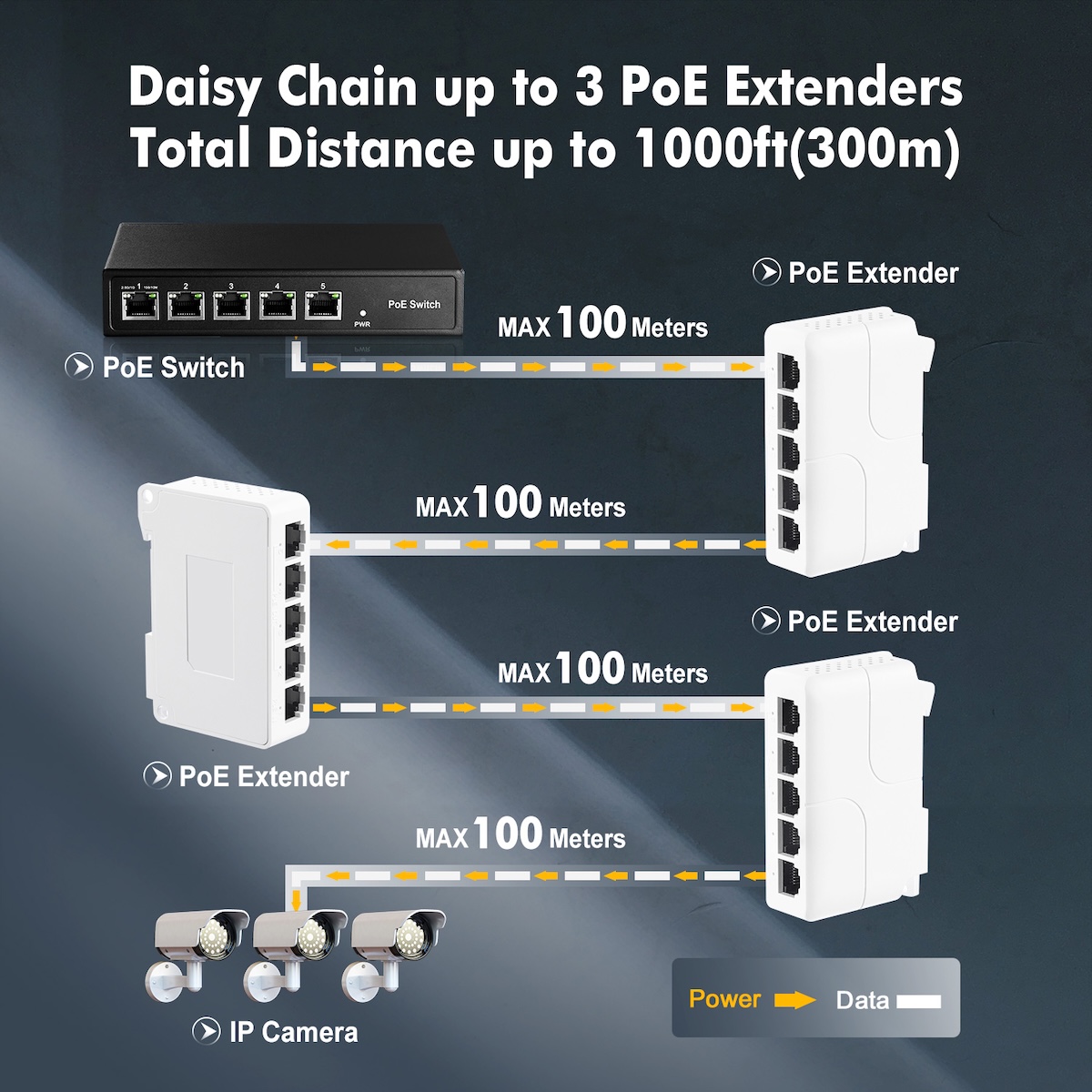

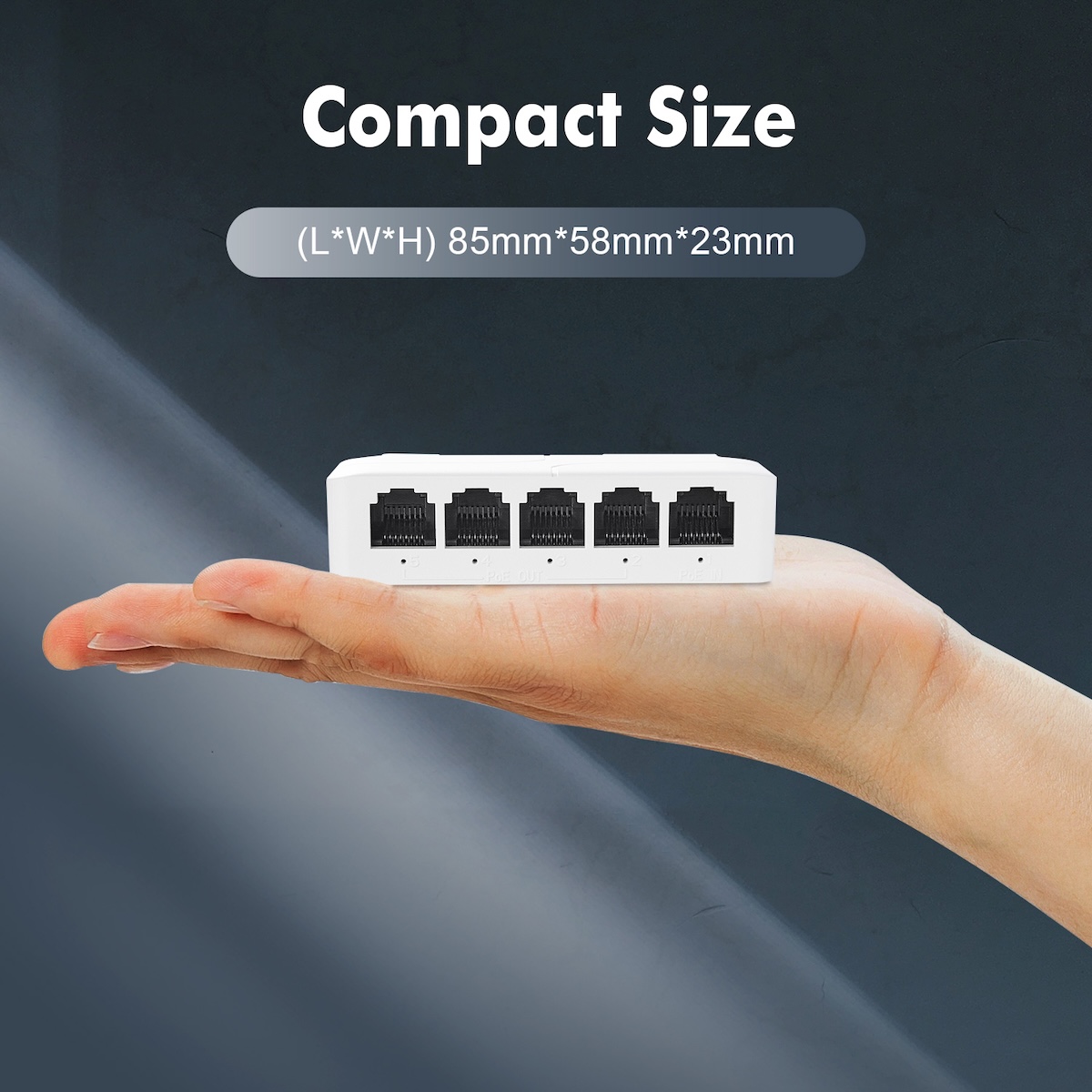

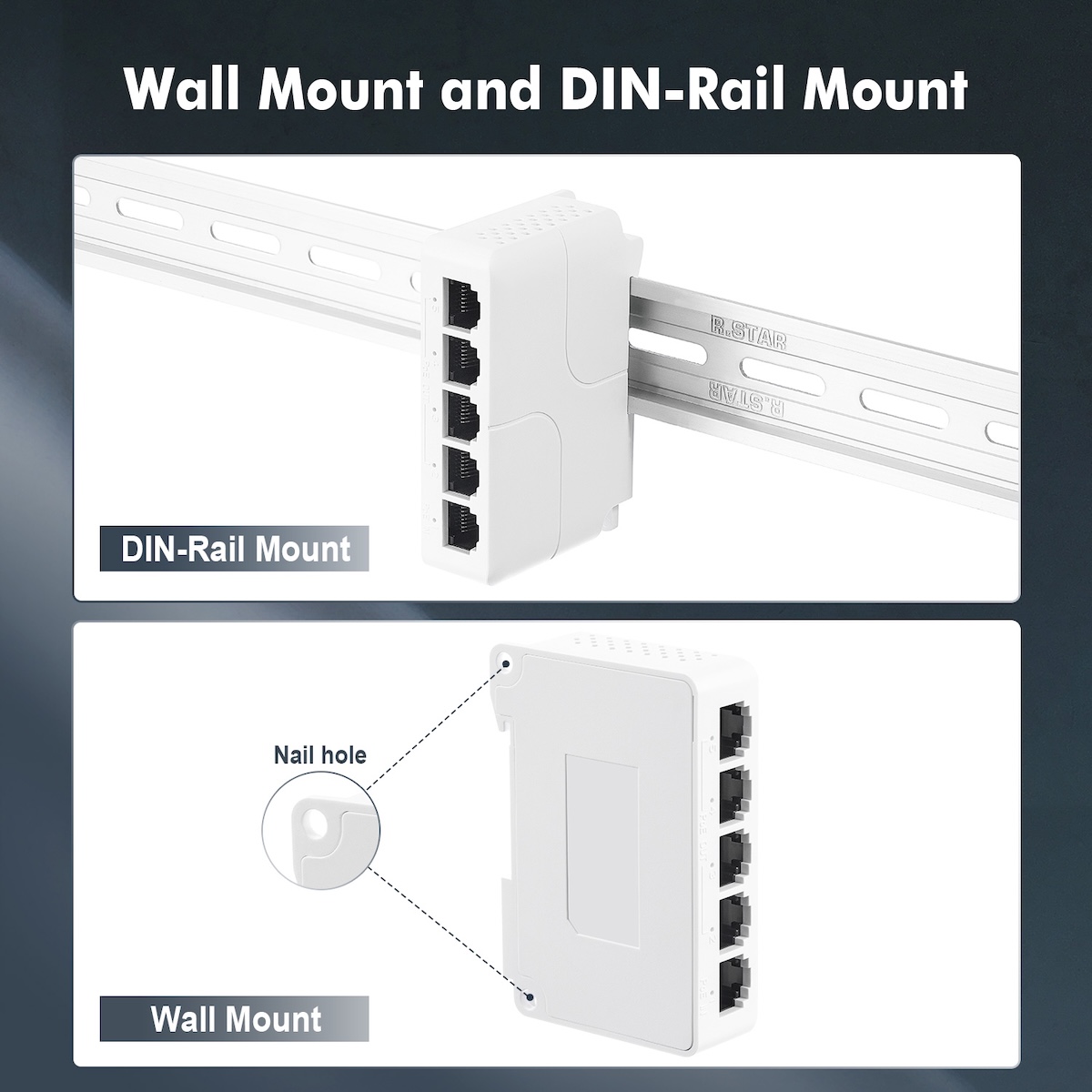

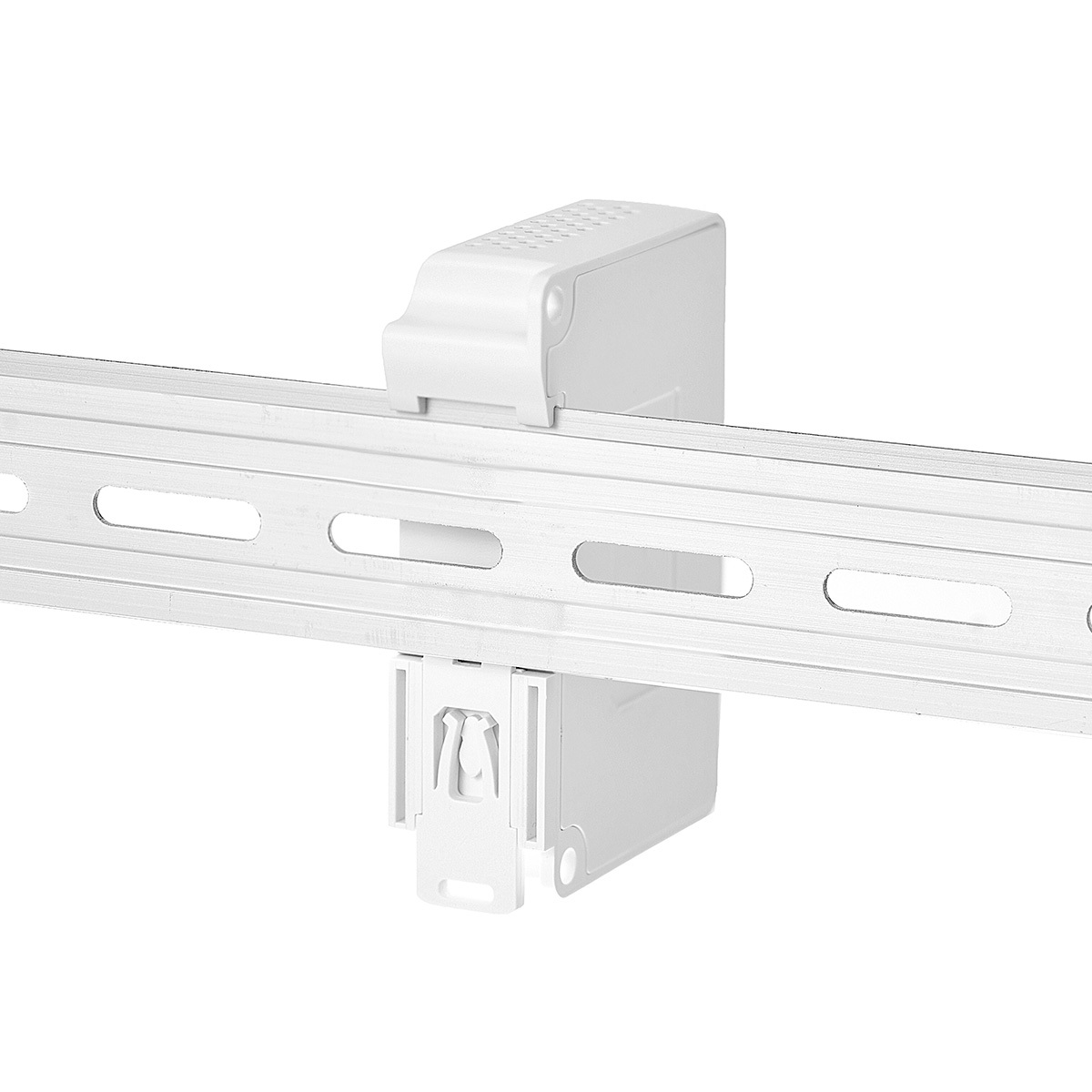

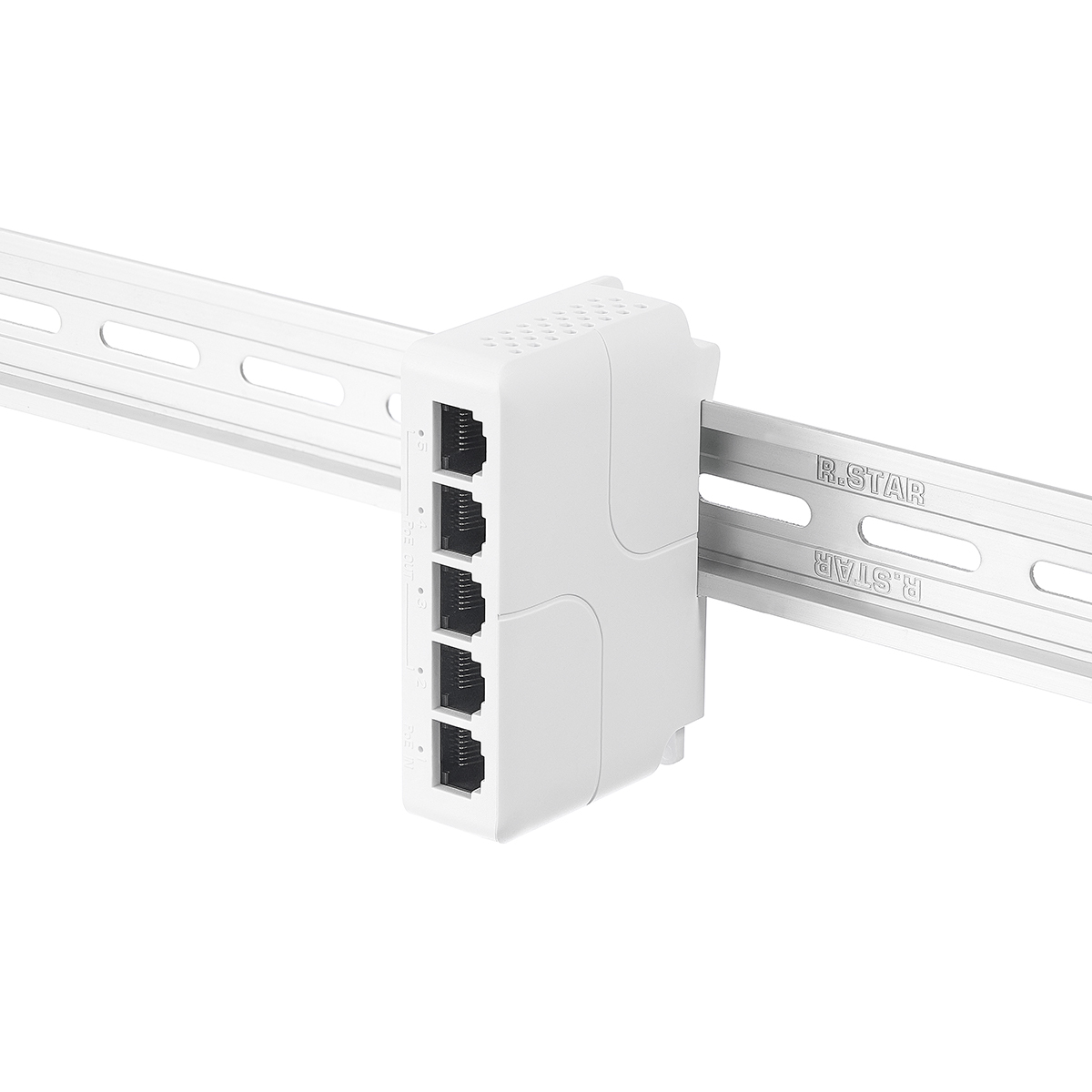

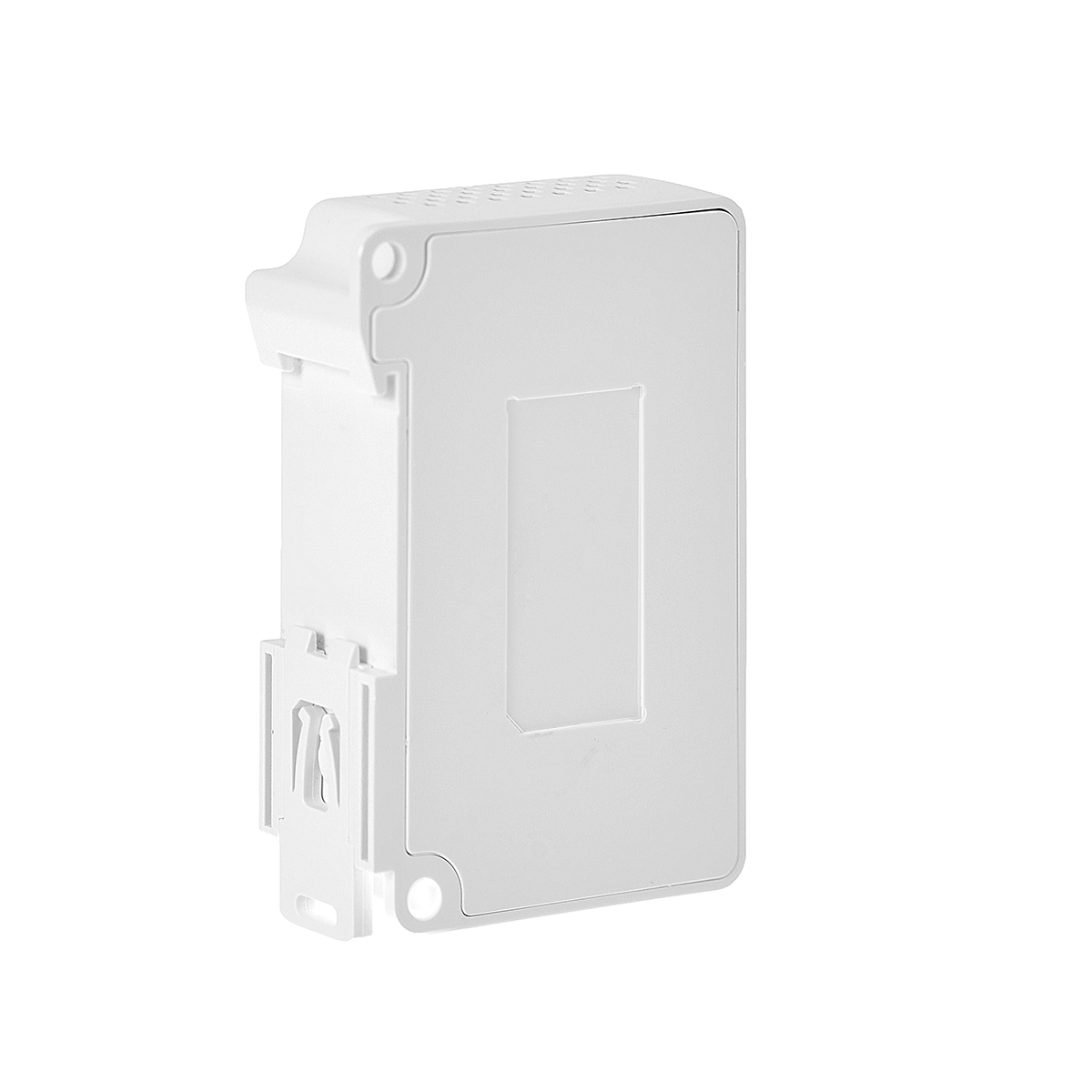

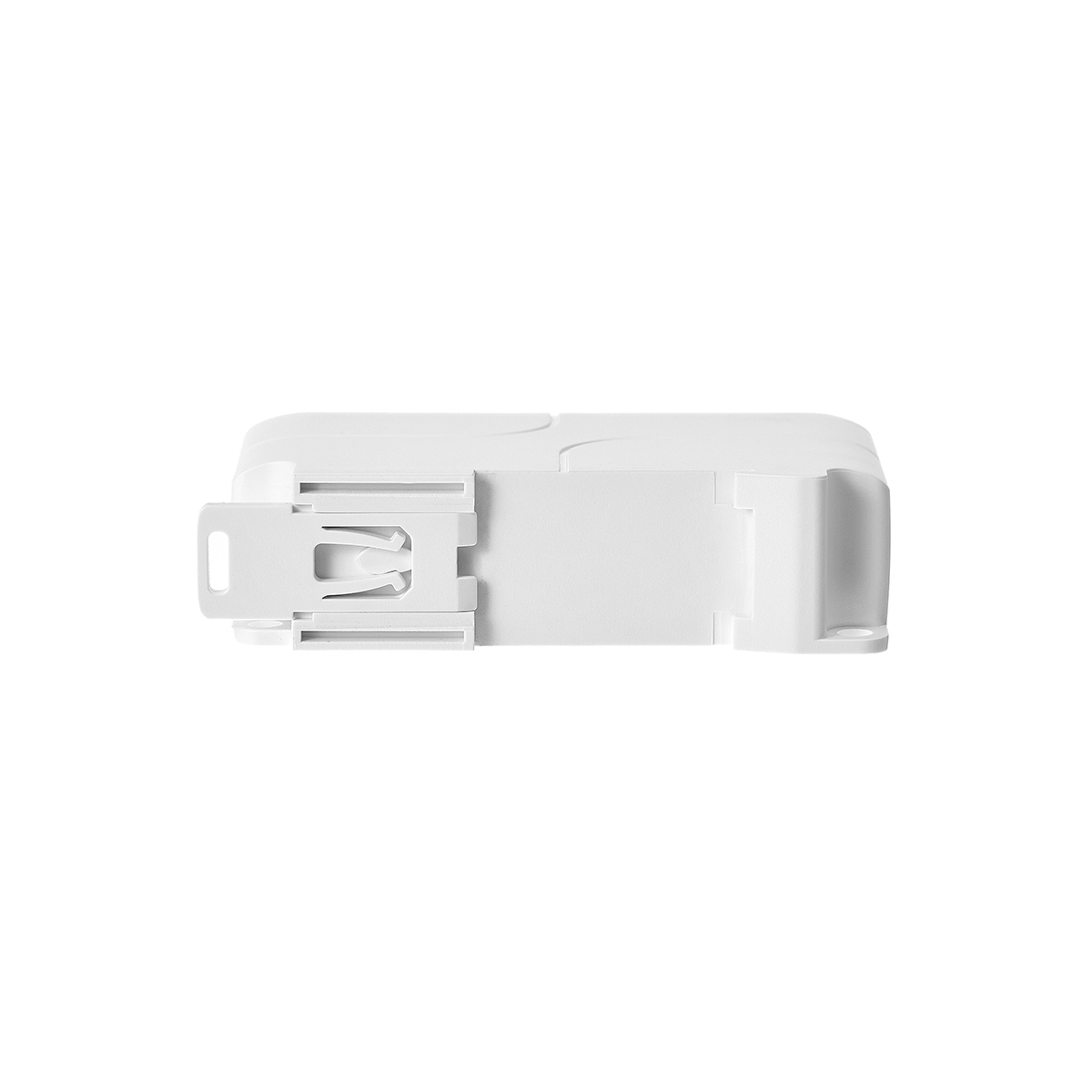

- Easy Installation - Supports Wall Mounting & DIN Rail Mounting; compact size saves space, suitable for various installation locations. Supports 3-level cascading, compatible with PoE devices (e.g., PoE APs, cameras, phones) to expand PoE coverage at low cost.
