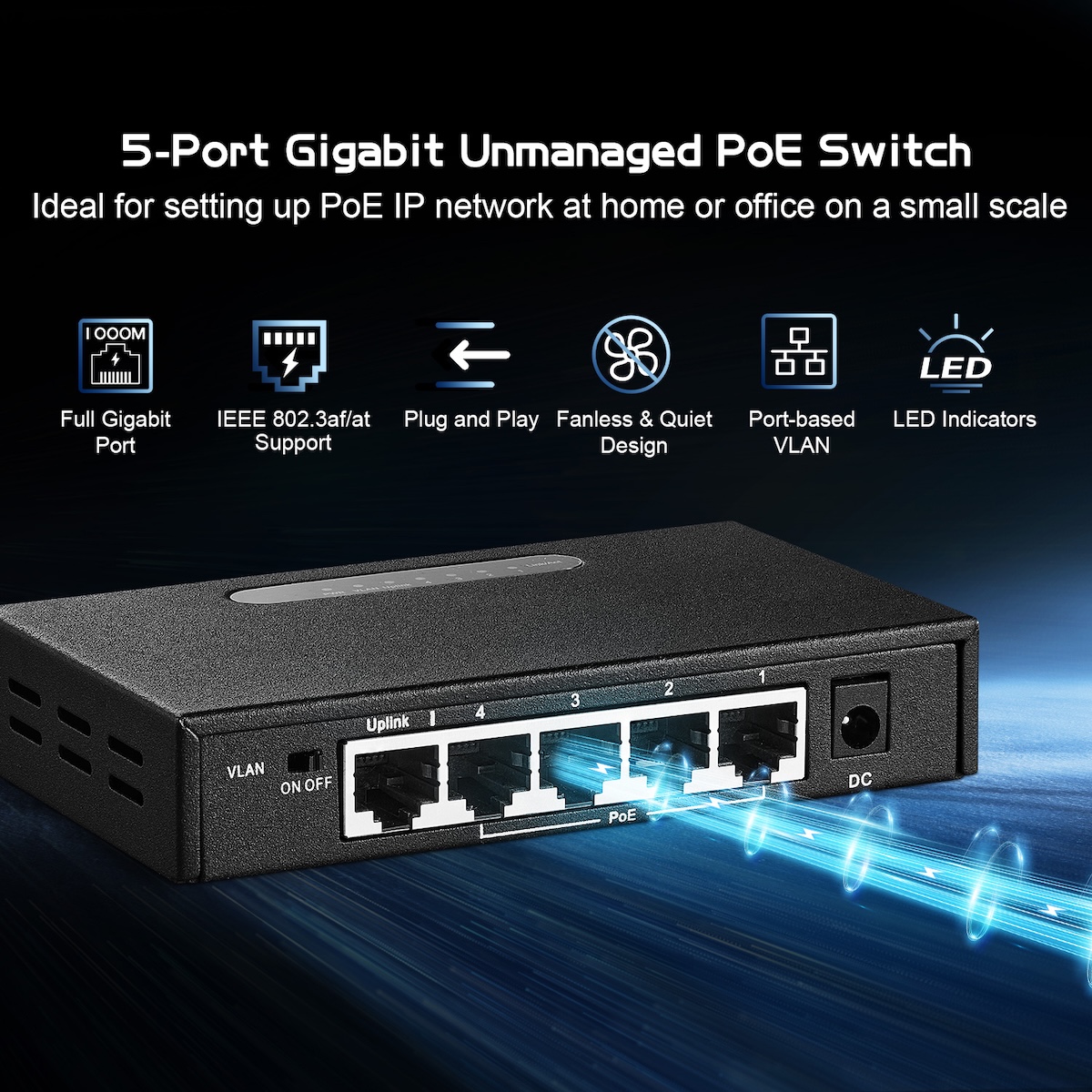

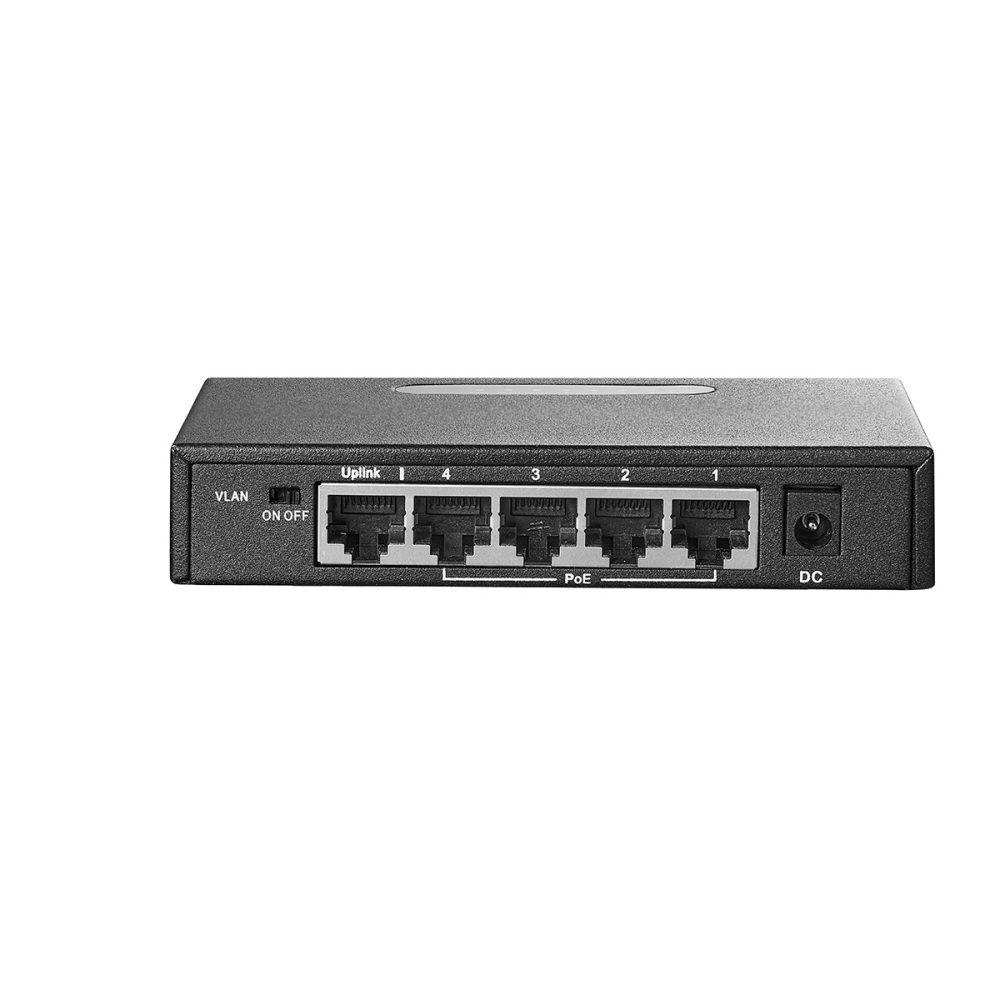

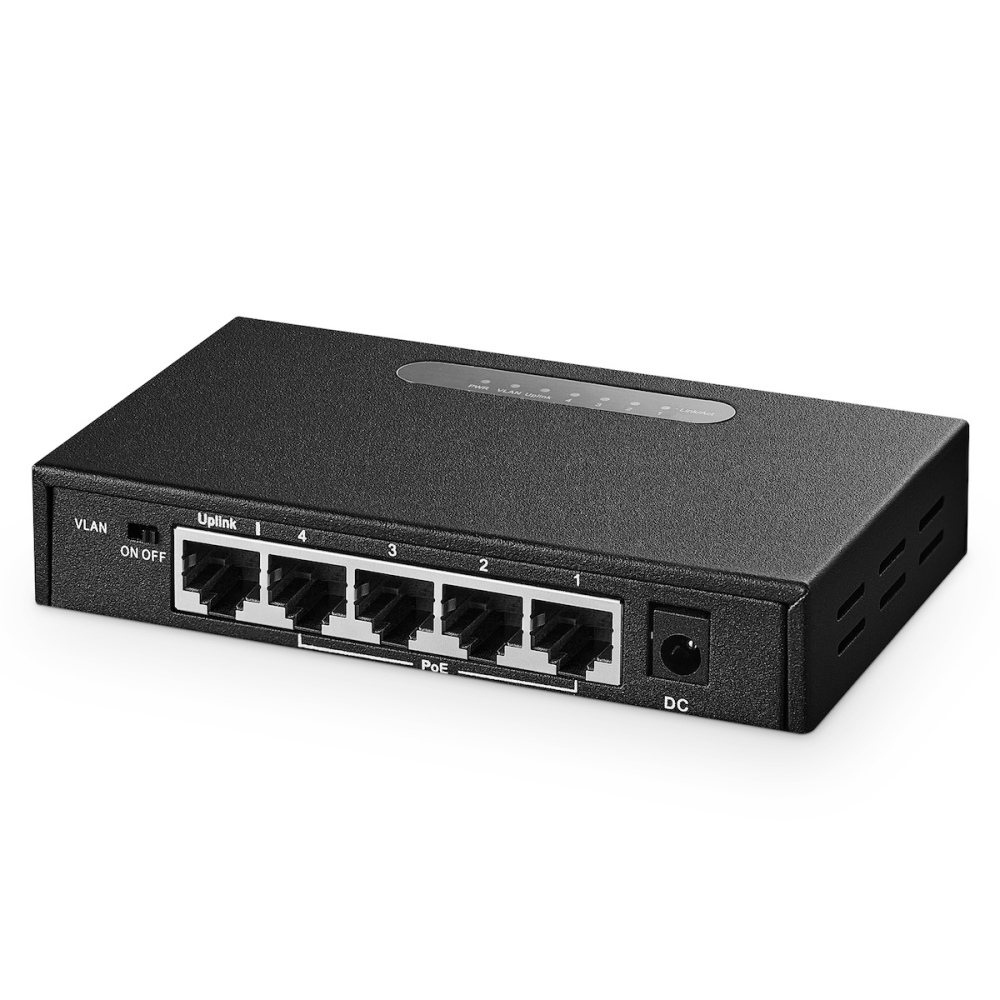

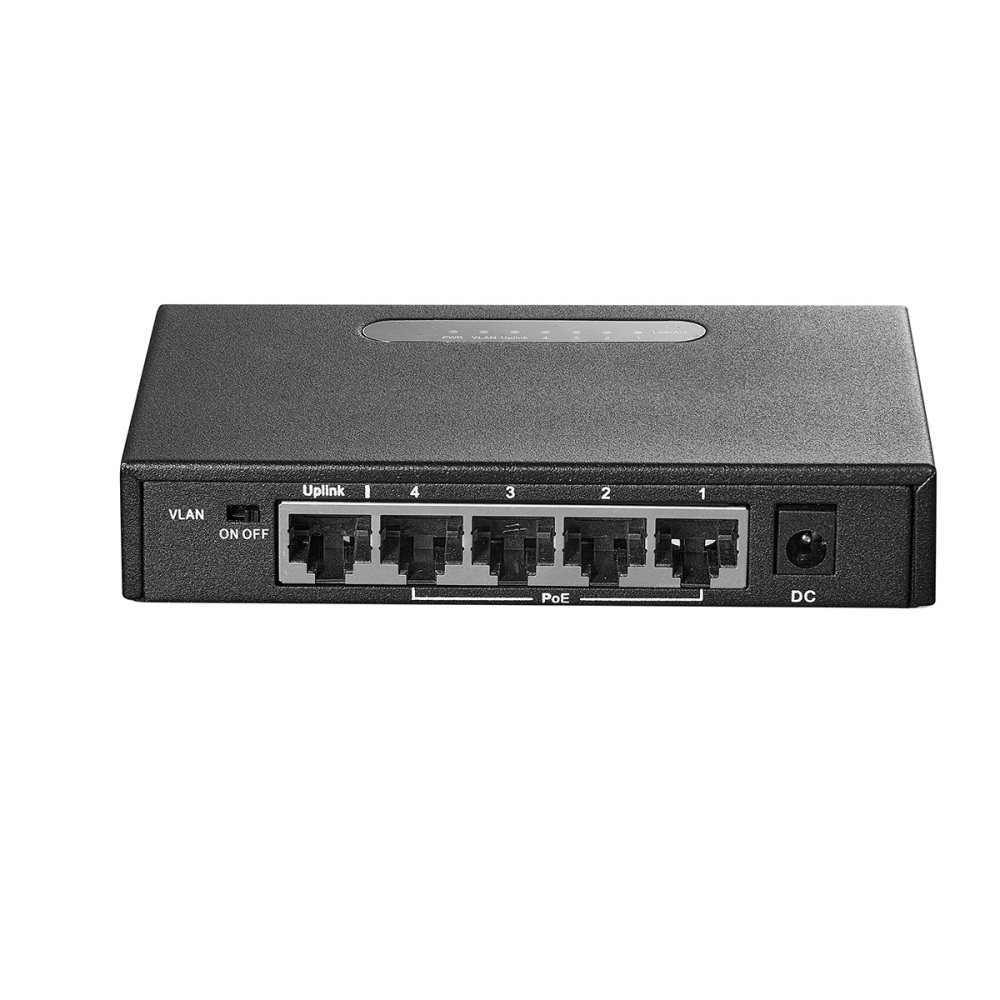

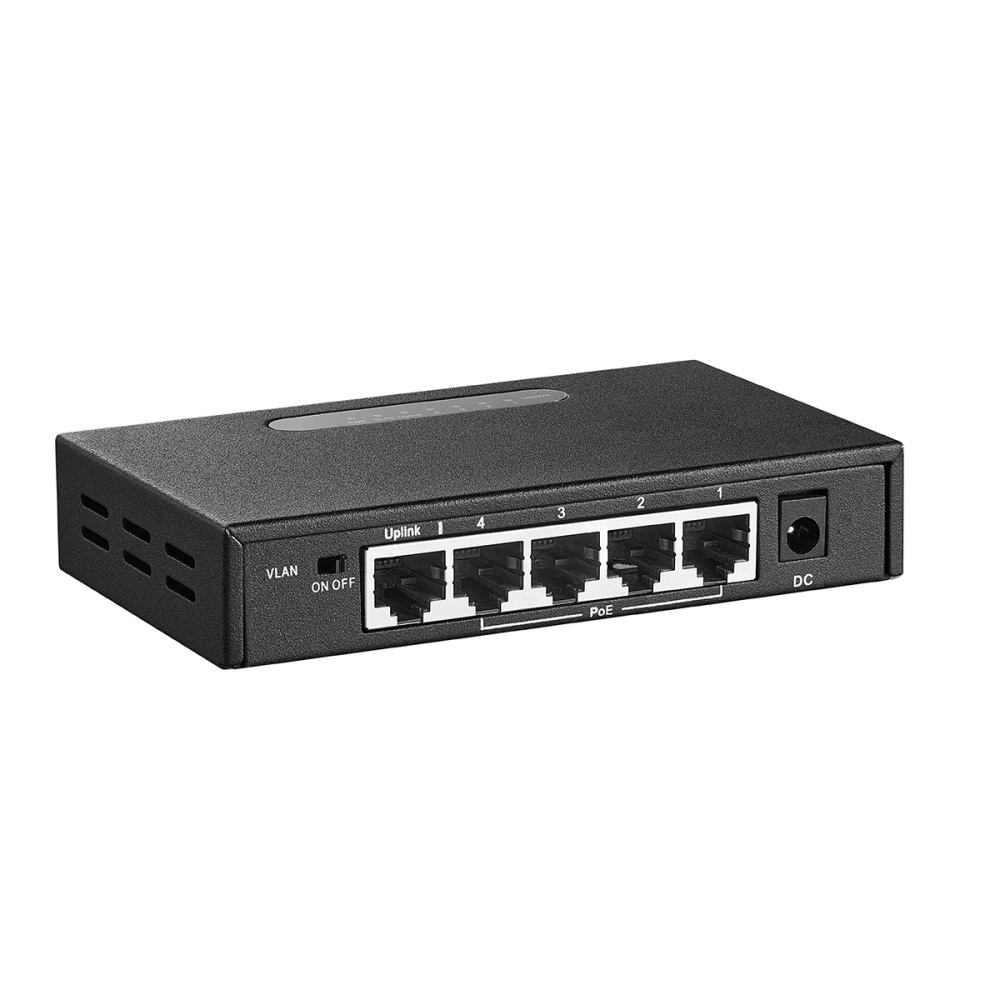

Binardat 5 Port Gigabit POE Switch, 4 Ports 1000Mbps IEEE802.3af/at, 1 Uplink, 65W Power Supply, Mini Metal Case Unmanaged Plug and Play

SKU: G05-041GP

$48.99

5 Gigabit Ports - Equipped with 4 Gigabit PoE ports and 1 Gigabit uplink port (non-PoE). All ports support 10/100/1000Mbps speeds, with a total bandwidth of 10Gbps—ensuring each port delivers consistent gigabit-performance for smooth data transmission.

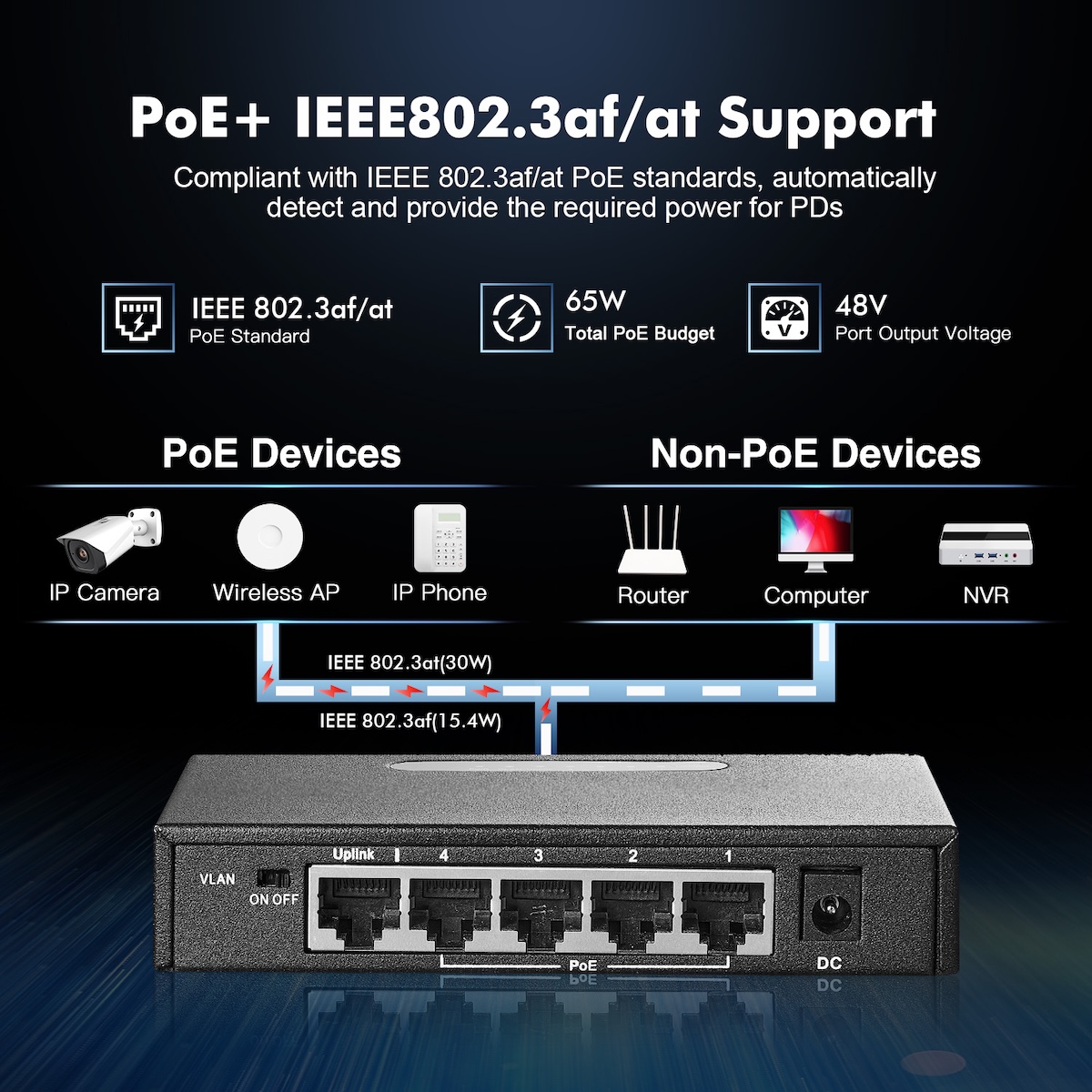

IEEE 802.3af/at Compliance - Delivers IEEE 802.3af/at-standard PoE power, paired with a dedicated 65W power supply. Each port supports a maximum power delivery of 30W, with an output voltage range of 44V to 57V. Note: This switch does not provide power for passive 24V PoE devices.

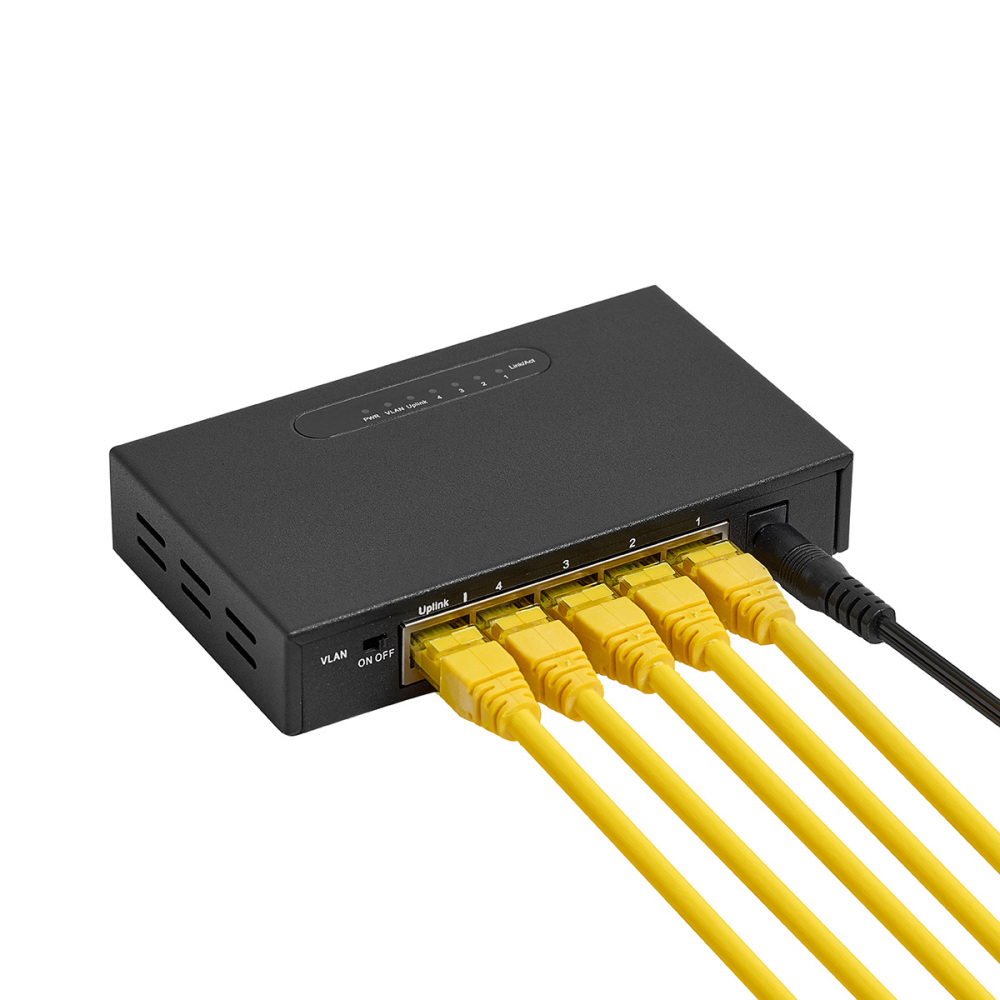

Unmanaged Plug-and-Play - Features built-in Power Detection technology that automatically identifies PoE-enabled devices. It is also compatible with non-PoE devices (for data transmission only). Enjoy true plug-and-play convenience: simply connect the power supply and Ethernet cables to your devices—no complex configuration required.

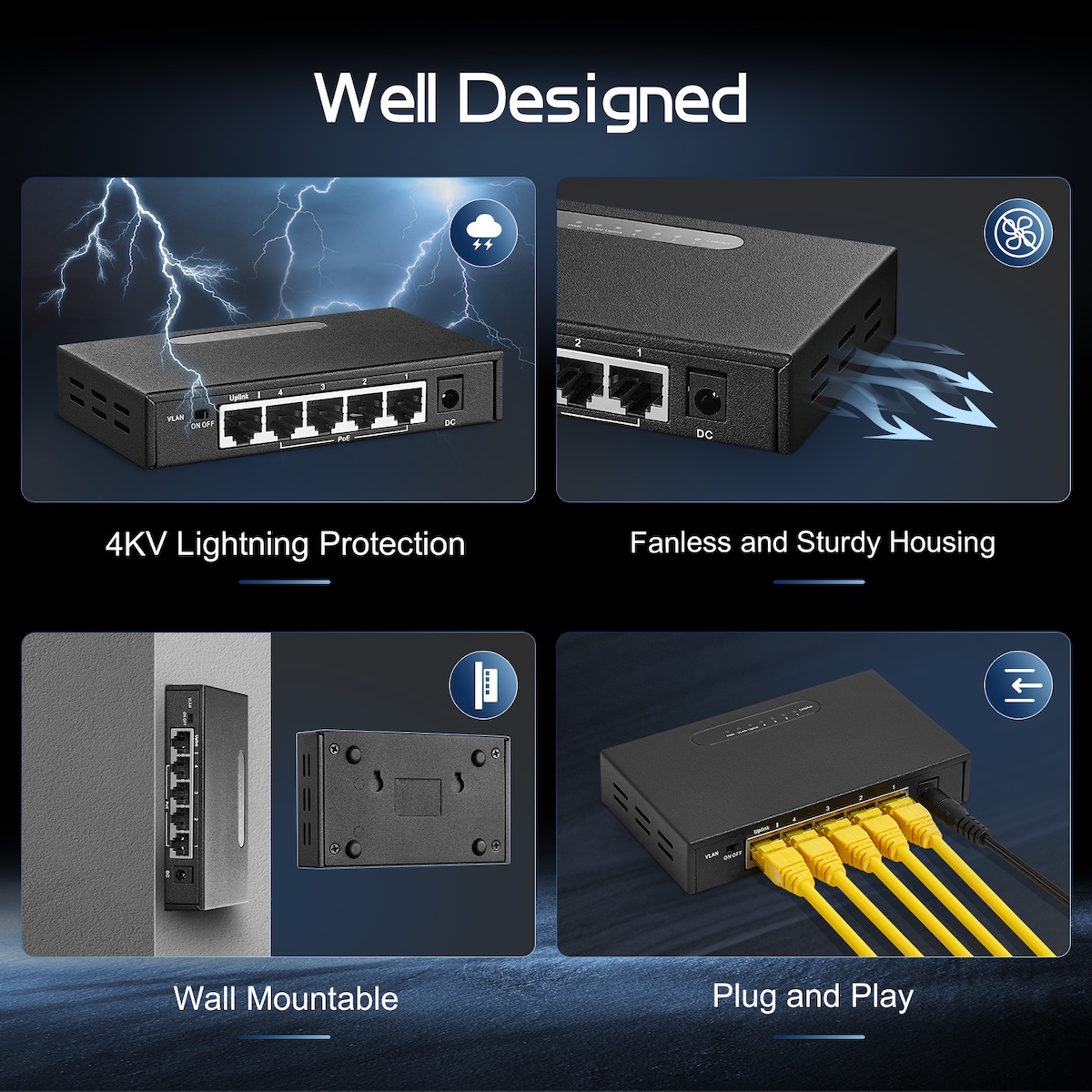

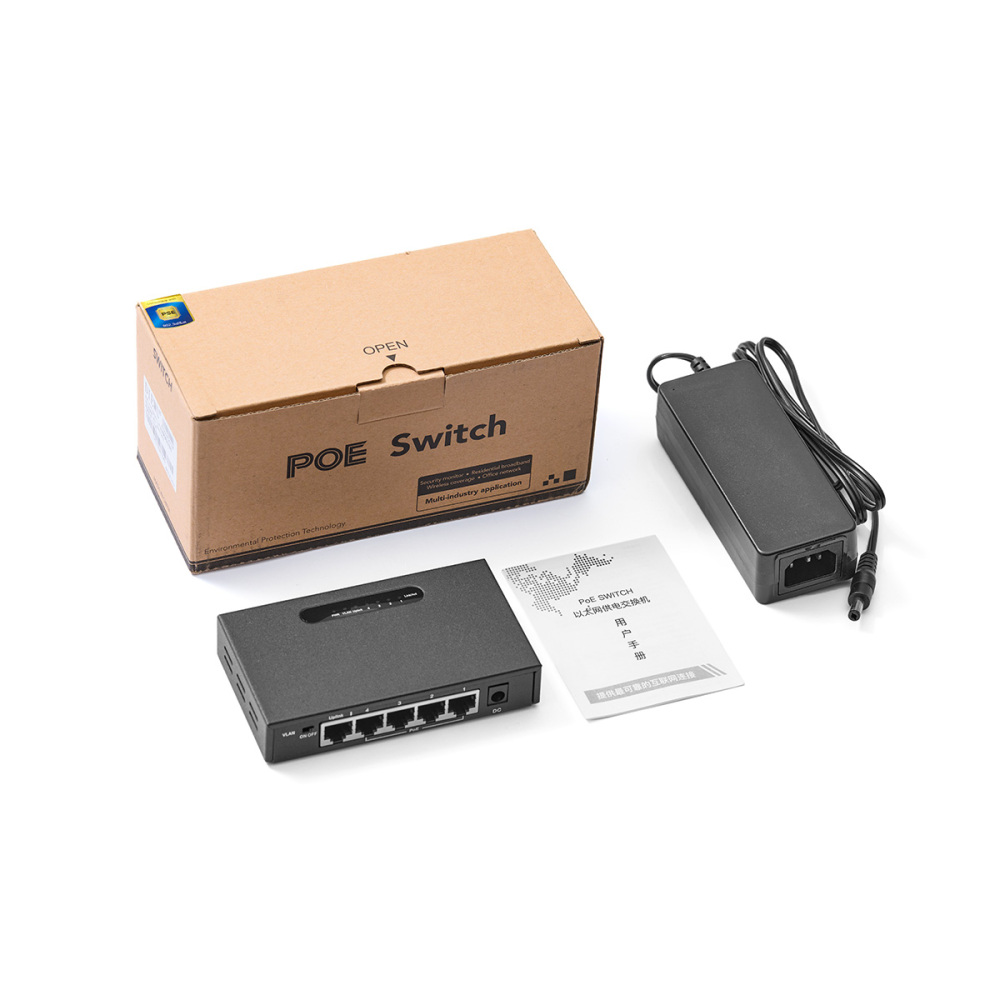

Easy Installation - Designed for hassle-free setup with wall-mountable capability (hardware included) and an external power adapter. Its compact size saves space, while the fanless design ensures quiet operation. Ideal for placement in desktops, low-voltage boxes, cabinets, and other home/office locations.
Widely Applicable & Durable - Boasts a durable metal casing for long-lasting use and LED status indicators for easy monitoring of device power and connection status. With gigabit speeds, it is perfect for IP cameras, wireless access points, home networks, office networks, and more. Lifetime technical support is provided for added peace of mind.

Received successfully

Coupon Code

Technical Highlights

Complies with IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, and IEEE 802.1q standards;

Supports IEEE 802.3at standard and is backward compatible with IEEE 802.3af standard;

VLAN Isolation, meeting the needs of security monitoring;

Flow Control Method: Full-duplex adopts IEEE 802.3x standard, half-duplex adopts Backpressure standard;

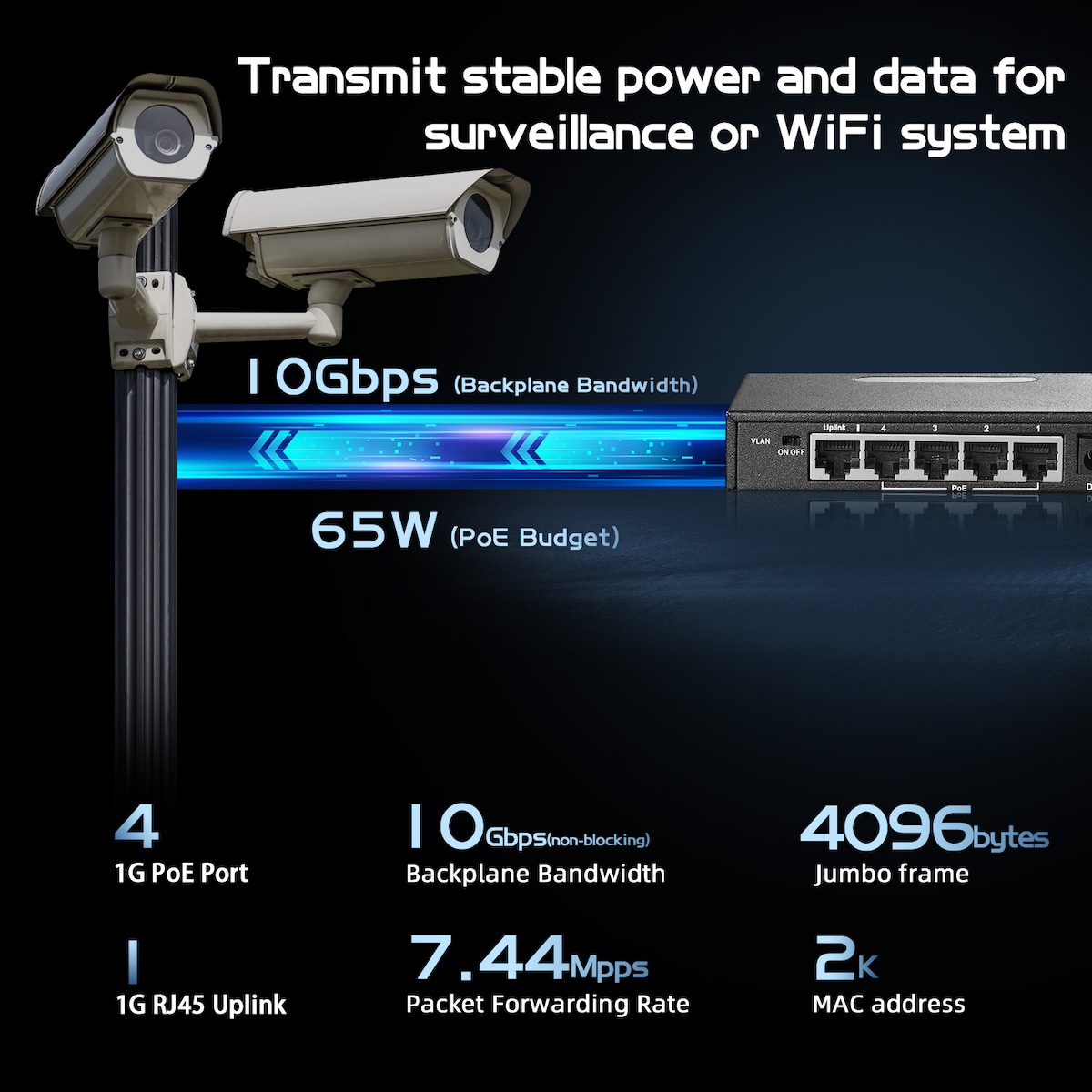

Adopts store-and-forward mode; Backplane Bandwidth up to 10 Gbps;

Maximum PoE output per port: 30W; Maximum total PoE output power: 60W.

Technical Parameter

Model	G05-041GP
Ethernet	5 auto-negotiation 10/100/1000Mbps RJ45 ports (Auto MDI/MDIX)
ChipSet	MT7530BU + XS2184
Standard	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az
Network Media(Cable)	100BASE-TX: UTP category 5, 5e cable（≤100m） 1000BASE-TX UTP category 5e, 5 cable（≤100m）
MAC Address Table	2K, Auto-learning, Auto-updating
Transfer Mode	Store-and-Forward
Switching Capacity	10Gbps
Packet Forward Speed	7.44Mpps
Power supply	External Power Supply: DC 52V, 1.25A
Power Consumption	Maximum (PoE Full Load): 63W (220V/50Hz)
Dimensions (LWH)	1237023mm
PoE Ports (RJ45)	4 PoE ports compliant with IEEE 802.3at/af standards, PoE Output Power: Maximum: 60W
Power Supply Pins	1/2 (+), 3/6 (-)
Temperature	Operating Temperature: 0°C ~ 40 °C Storage Temperature: -40 °C ~70°C

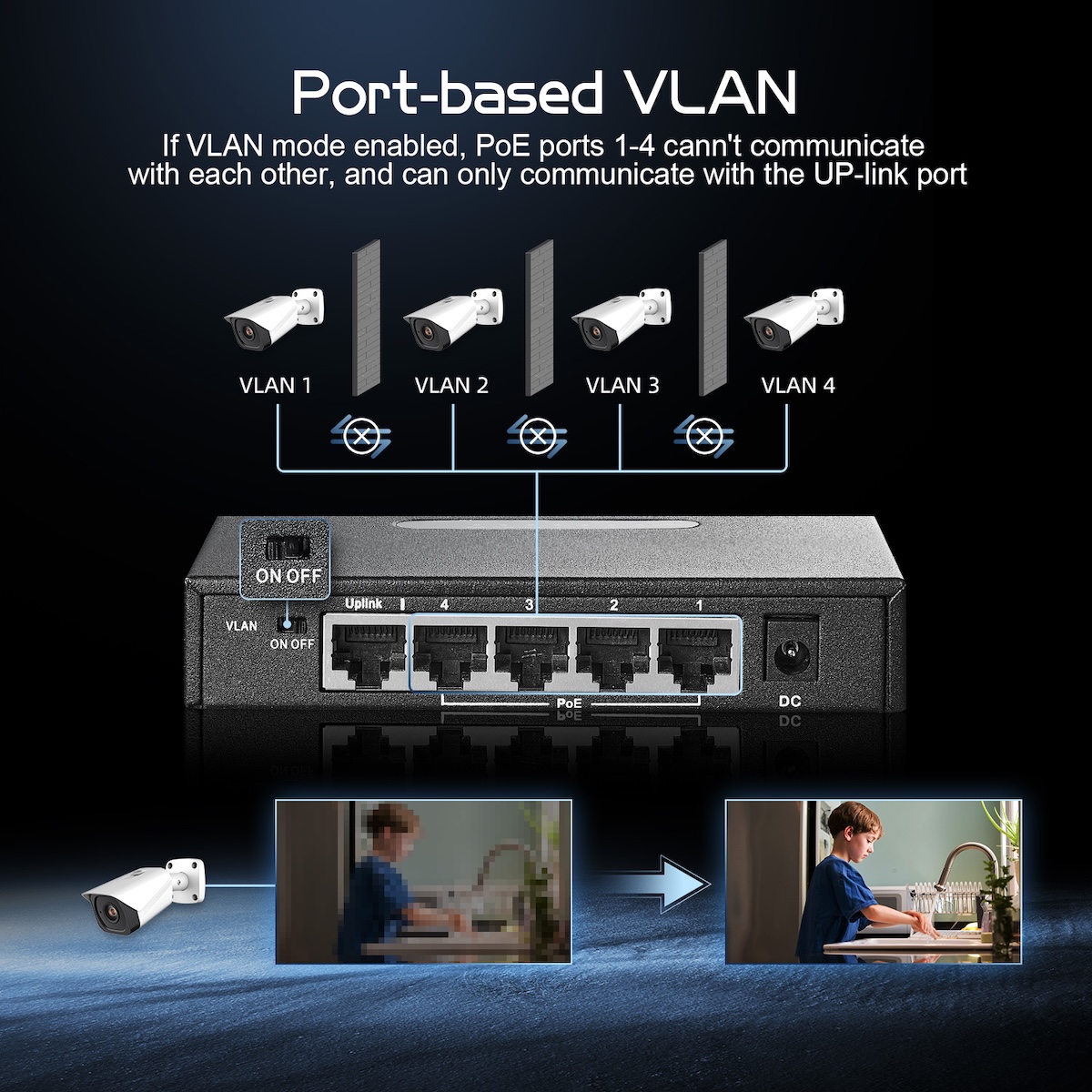

Extend Mode	VLAN：Isolation mode. Ports 1 to 4 are isolated and communicate with the upstream interface. Default：Normal mode, all interfaces can communicate with each other.
Humidity	Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing

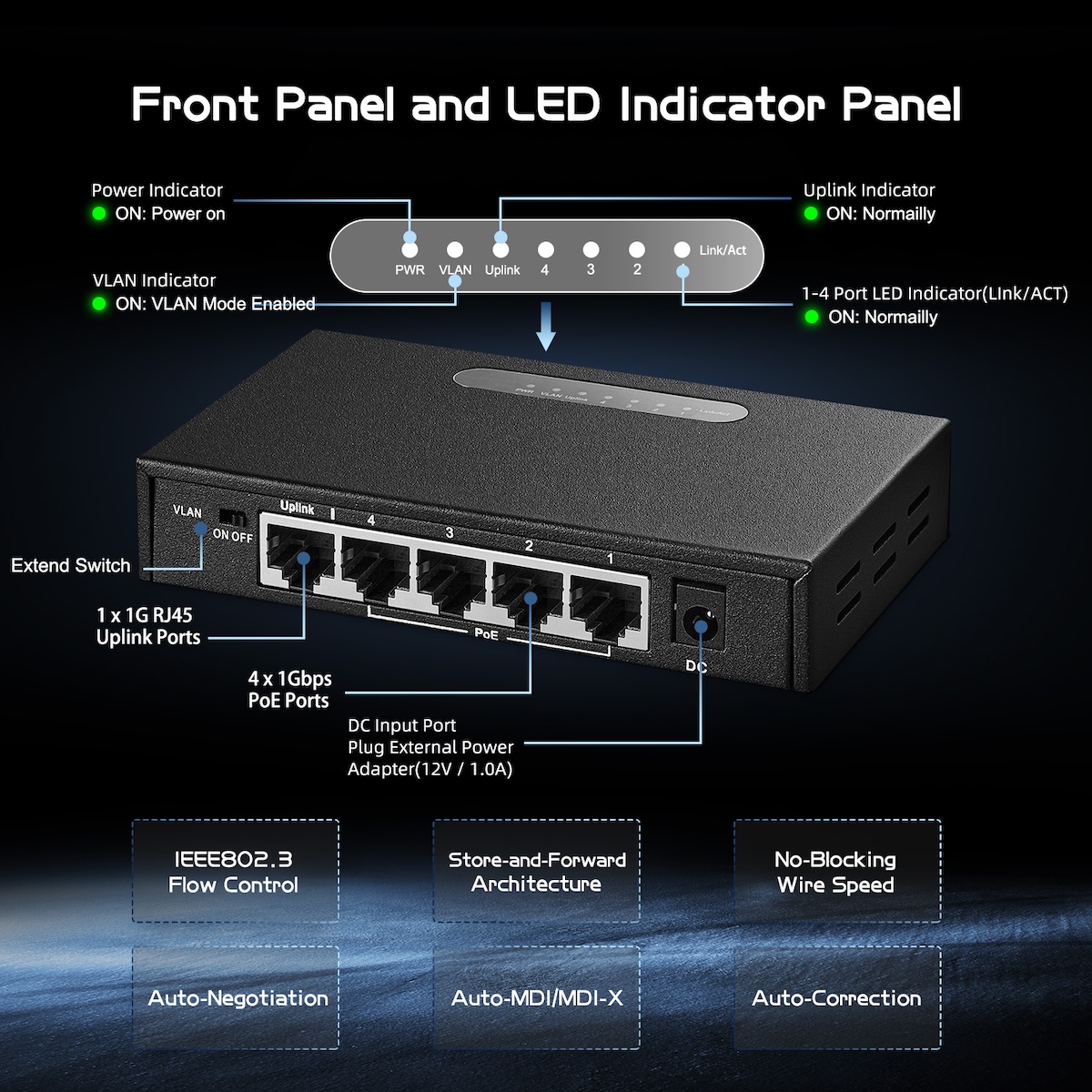

Led Indicator	Per Unit: PowerPer Port: Link/Act
