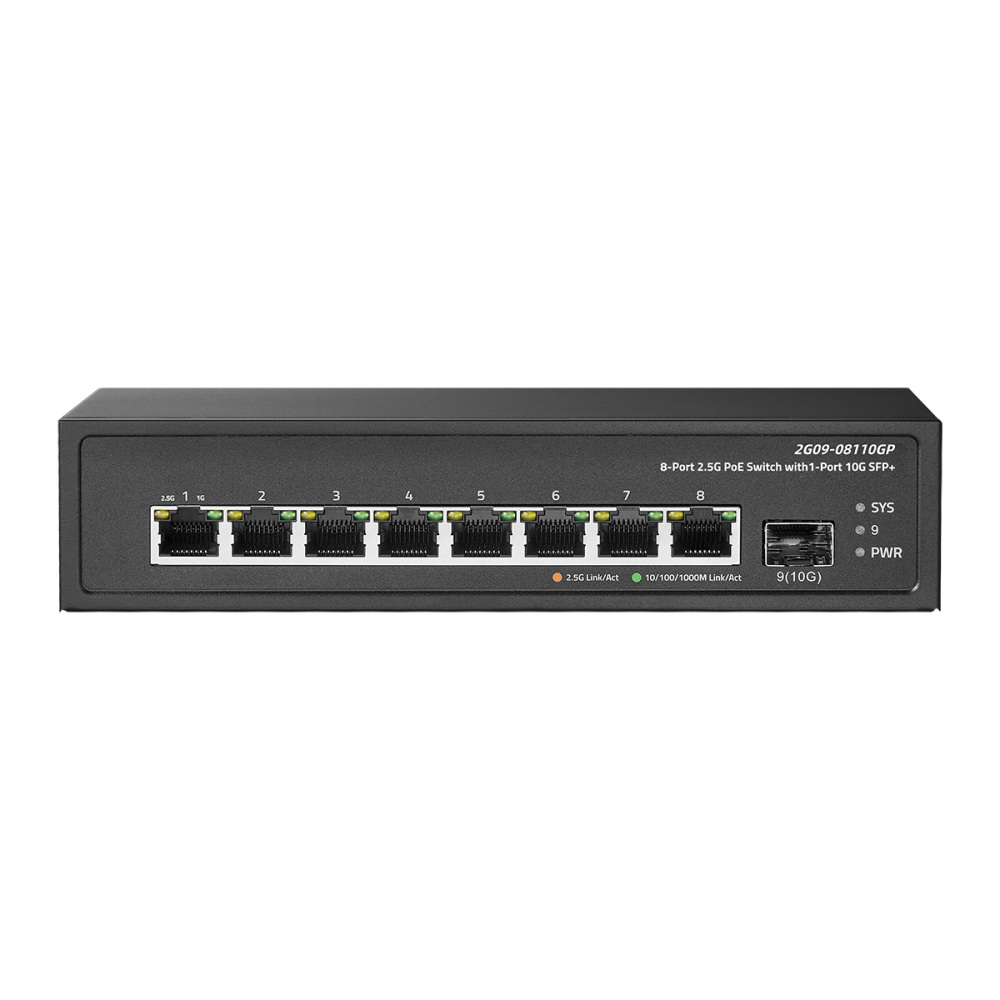

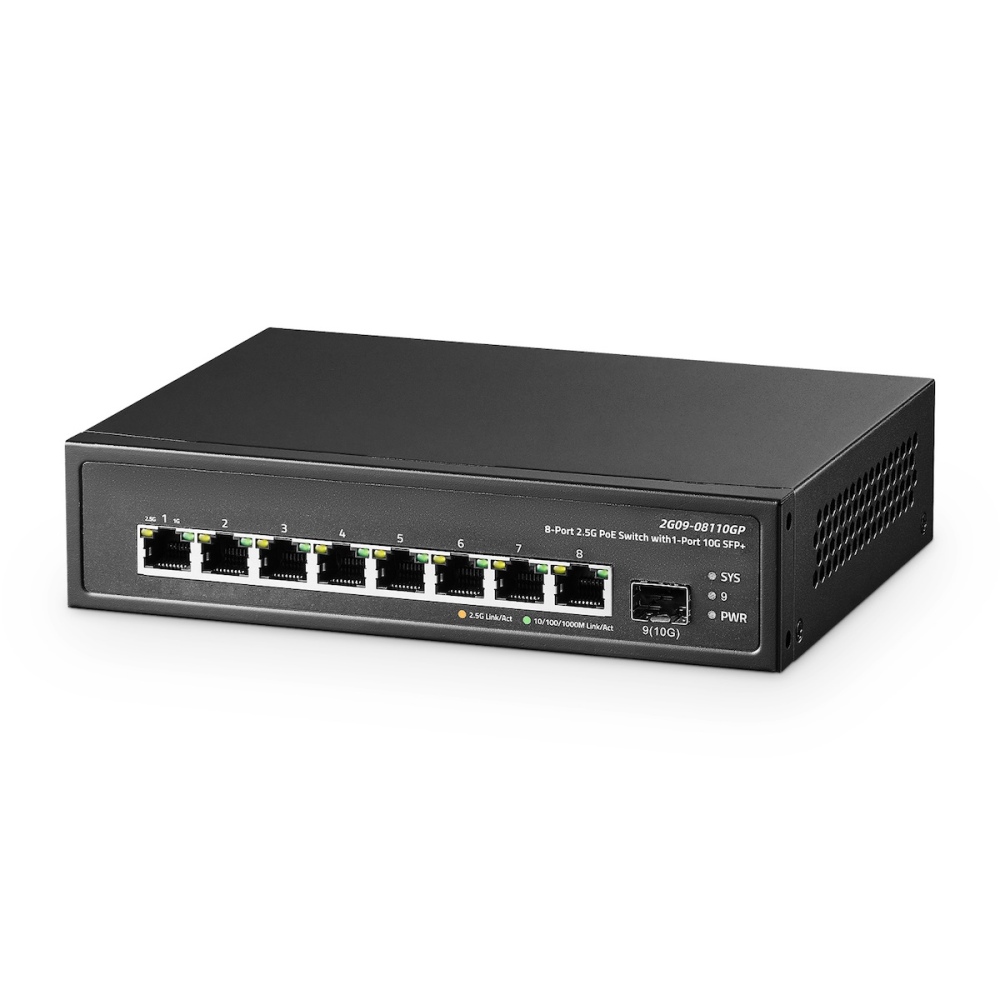

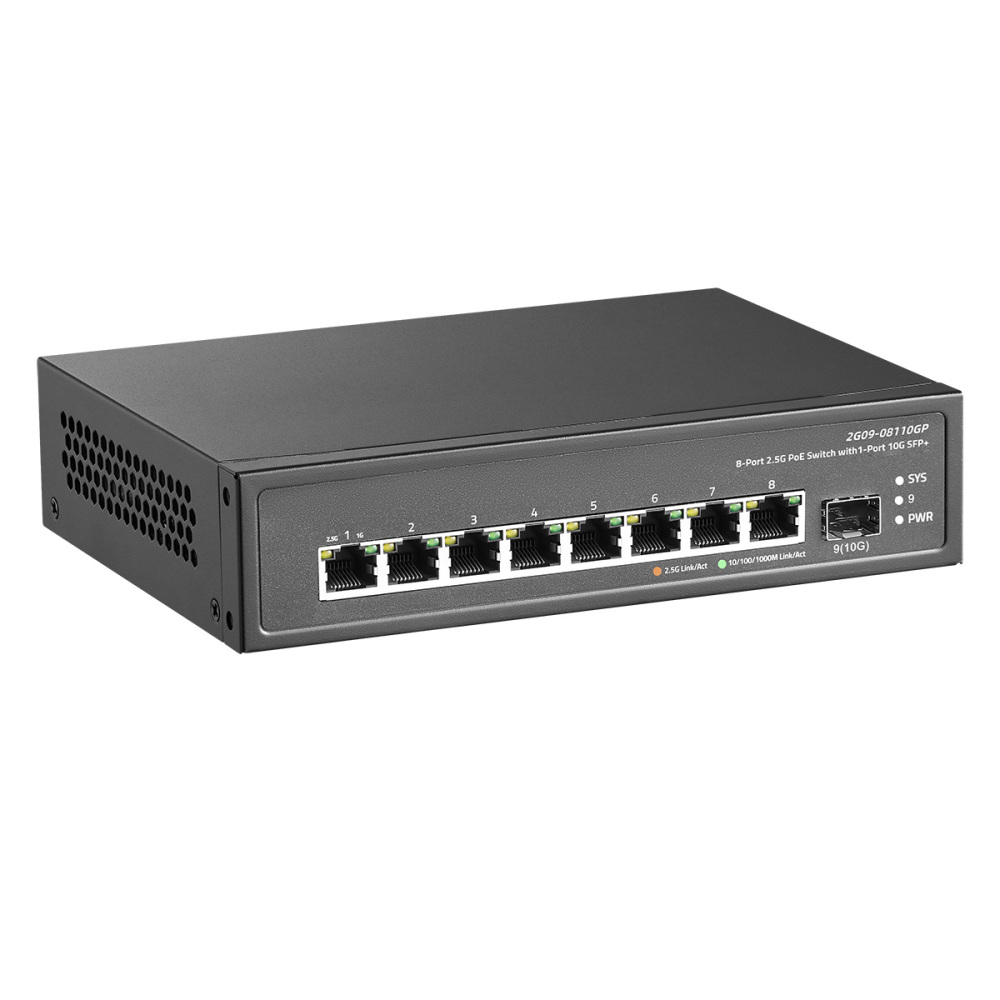

9 Port 2.5G PoE Switch with 10G SFP+ Port, 8x2.5G Base-T Ports Compatible with 100/1000Mbps, IEEE802.3af/at 135W, Unmanaged Fanless Rackmount Ethernet Switch

SKU: 2G09-08110GP

$104.99

2.5G Ports - 8 x 2.5Gigabit ethernet Ports, 2500Mbps/1000Mbps/100Mbps rate auto-adaptive. 1x 10G SFP+ Slot(compatible 1G/2.5G Module, not include SFP Module). 60Gbps backplane bandwidth, excellent data forwarding performance

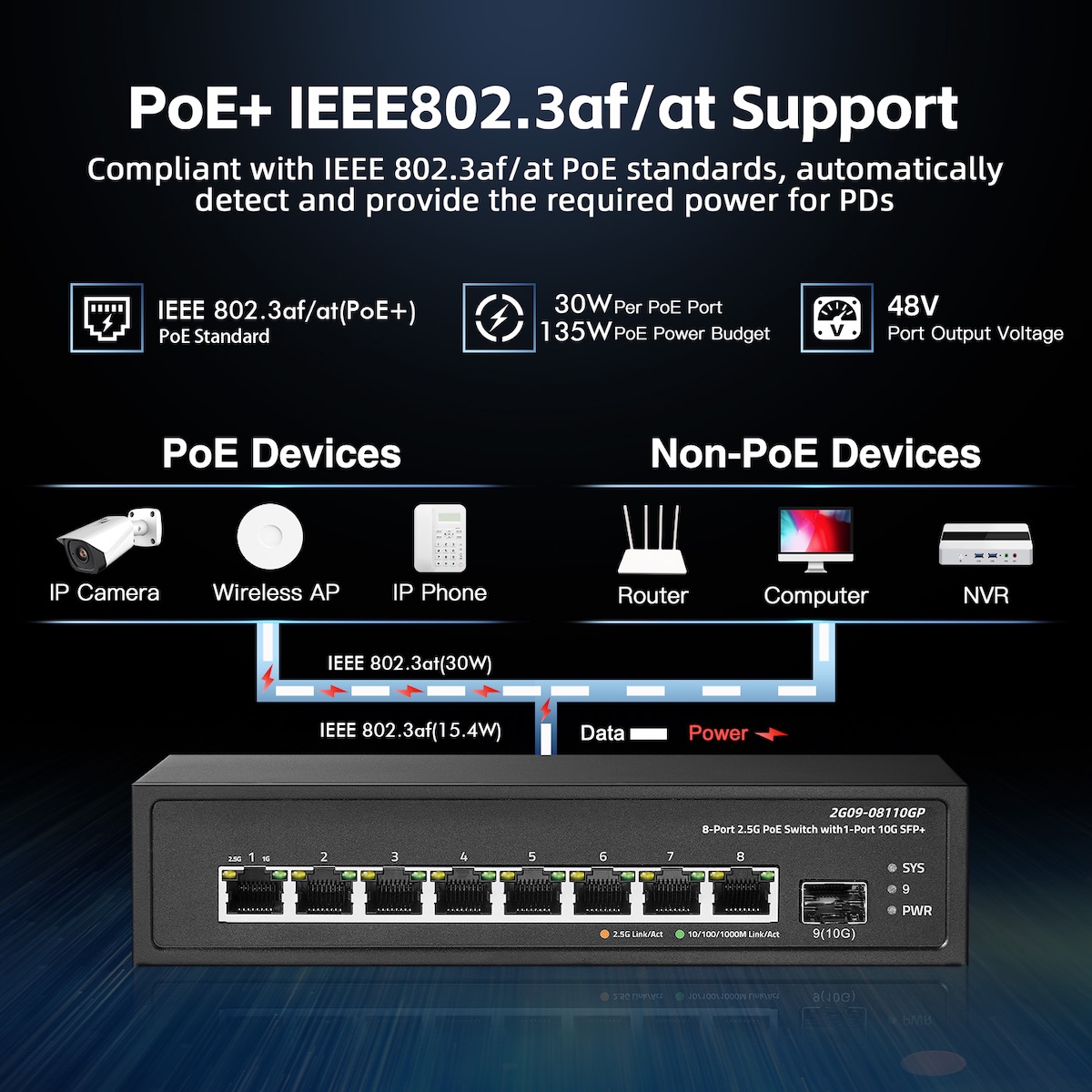

8 PoE - Port 1-8 support IEEE802.3af/at PoE max 30W, the total Power Supply is 135W. Supports automatic POE device detection and can be connected to non-POE devices to provide data connectivity, please note that no power will be supplied to 24V passive POE devices

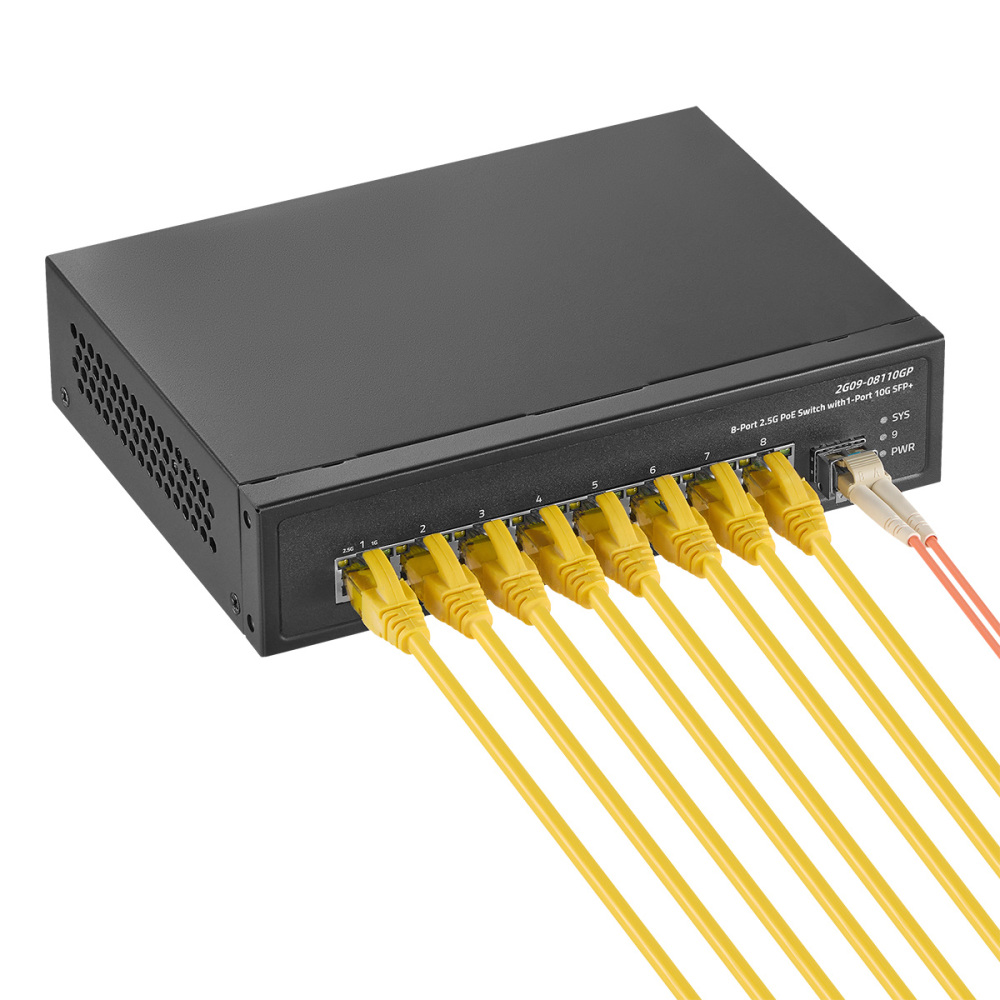

Plug and Play - Unmanaged no need configure, just plug in the power cord and ethernet cable, auto-negotiate connected devices. auto MDI/MDIX, without any configuration.
Easy to Use - Power and port LED light, clearly display working status and port rate status, easy to use and maintain, fanless design lowers energy consumption, quiet no noise and stable operation
Widely Used - Desktop/wall-mount design, metal case, suited for various application, such as home entrainment, 4K video, gaming PC, NAS, PCIe Adapter, Server, WiFi 6 PoE AP, PoE Camera, and more.

Received successfully

Coupon Code

Description

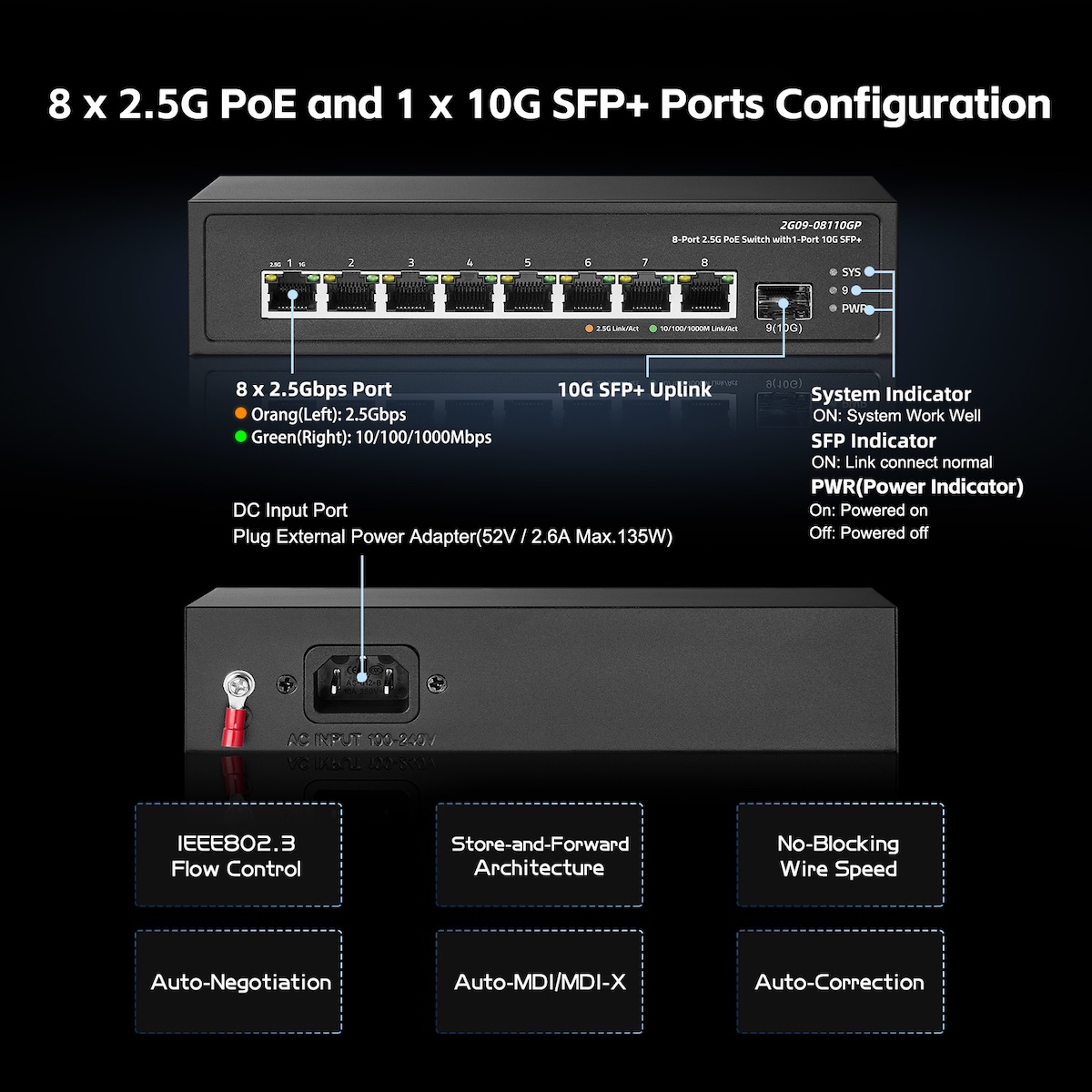

This multi-port high-speed network switch combines performance and practicality. Its core configuration includes 8 x 2.5G Ethernet ports (with auto-adaptive speeds of 2500/1000/100Mbps), 1 x 10G SFP+ slots (compatible with 1G/10G modules), and a 60Gbps backplane bandwidth, enabling smooth and efficient data forwarding.

Its 8 PoE ports (Ports 1-8) support IEEE 802.3af/at standards, with a maximum of 30W per port and a total power budget of 135W. It can automatically detect PoE devices and also connect to non-PoE devices for data transmission.

Designed as unmanaged, it requires no configuration—simply plug in power and Ethernet cables for plug-and-play use, with auto MDI/MDIX support. LED indicators clearly show operating status and port speeds. The fanless design ensures energy efficiency, quiet operation, and stability. Featuring a metal housing with desktop/wall-mountable options, it suits various scenarios including home entertainment, 4K video, NAS, WiFi 6 PoE APs, and PoE cameras.

Product Specification

Model	2G09-08110GP
Fixed port	910/100/1000/2500 Base-T + 110G Base-X
Power interface	AC
LED Indicators	P, S, link/act, speed
Optical fiber interface	SFP
Input voltage	AC 100-240V 50/60Hz
Power consumption	＜135W
Main board power	＜6W
PoE port	1-8
PoE Protocol	802.3af，802.3at
Pin Assignment	1,2+; 3,6-
Switching capacity	60G
Packet forwarding rate	44.64Mpps
MAC address table	4K
Buffer	8.1M
Forwarding delay	<10us
MDX/MIDX	Support
Operating temperature	-10℃~+55℃
Storage temperature	-40℃~+70℃
Relative humidity	10%~90% (non-condensing)
Thermal methods	Fanless design, natural heat dissipation
MTBF	100,000 hours
Surge protection for Ethernet port	Common mode 6KV; differential mode: 2KV
Surge protection for Power	Common mode 4KV; differential mode: 2KV
DIP	Contact 8K, Air 15K
ESD	0.5m
Product size	1757328mm（LxWxH）

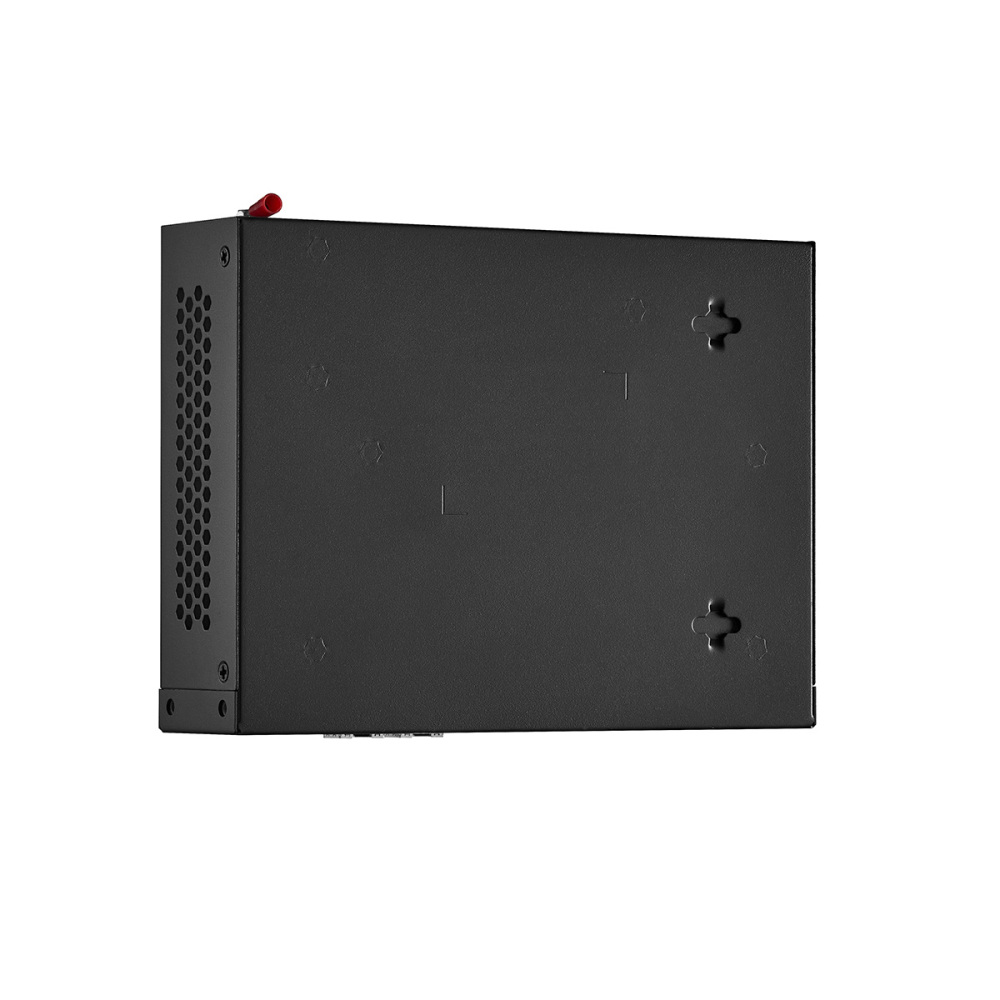

Installation Method	Desktop / Wall Mount
Weight	0.35KG
Accessories	Switch, Manual, Power Code
