8 Port Gigabit PoE Din Rail Industrial Ethernet Switch, 8 PoE IEEE802.3af/at, 16Gbps Switching Capacity, with One 96W PoE Power Supply

SKU: ING08-080GP

$99.99

8 Gigabit Ports - This din rail switch include 8 gigabit ethernet ports, 10/100/1000Mpbs adaptive, exchange capacity is 16Gbps, each port can reach 1Gbps high-speed forwarding.

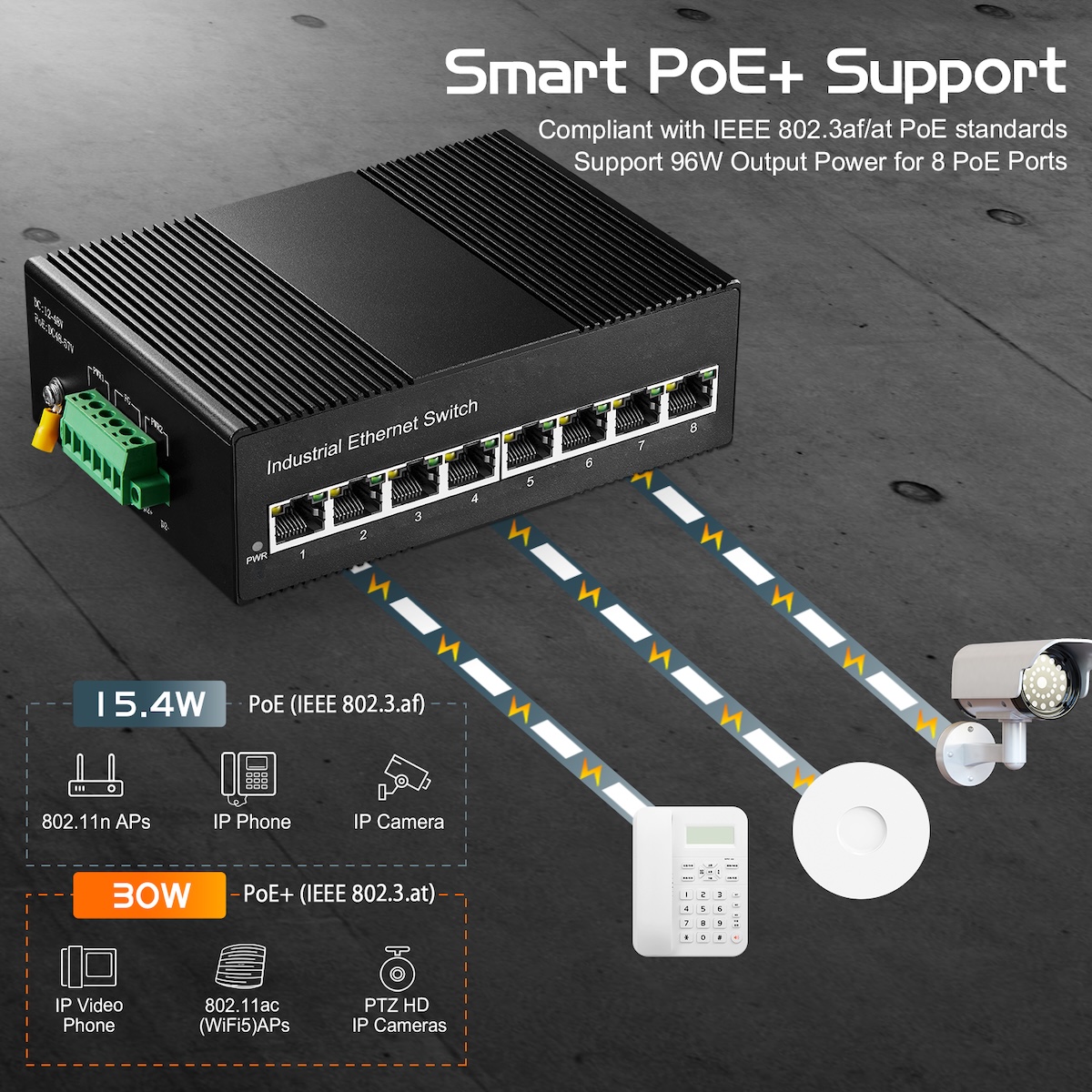

IEEE802.3af/at PoE - Port 1-8 support IEEE802.3af/at standard, max 30W per port, connect multiple poe devices, such as POE camera/ap, etc. Not support passive 24v poe. His POE input DC voltage is 48-55V, please use a input voltage above 48V to provide POE, if it is 12V, it cannot provide POE
Industrial IP40 - This is a industrial grade switch, using sturdy aluminum alloy casing and industrial grade electronic components, working temperature -40~75°C(-40~185°F), anti-lightning, anti-static and anti-overload protection

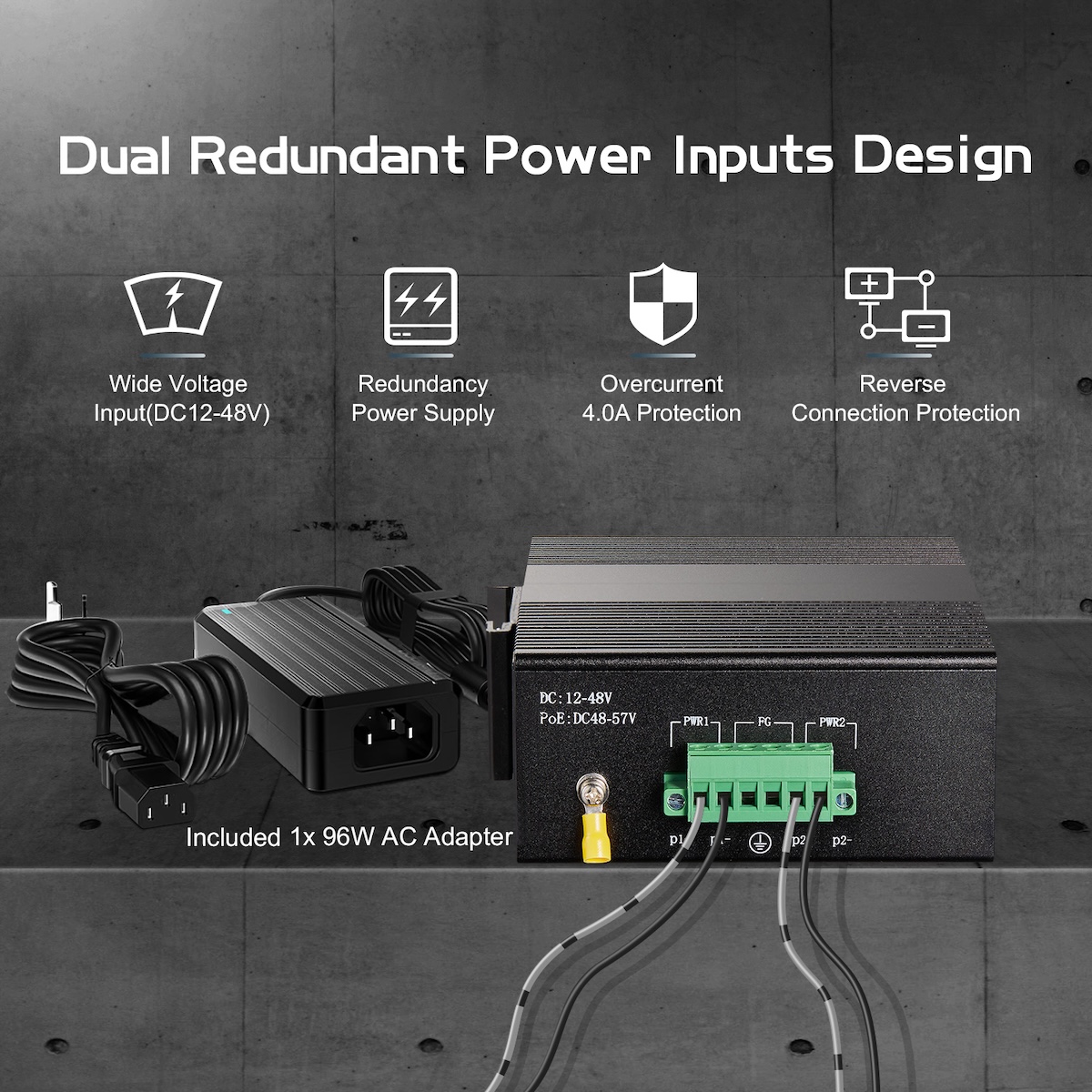

Redundant Power - Support 2-way industrial grade power interface input, automatically switchover when 1-way fails without any downtime, high reliability ensures continuous business operation. Include one commercial power supply
LED & Fanless - Both the power supply and the port have LED indicators, which can clearly observe the running status of the device. Fanless design, heat sink for heat dissipation, quieter and energy saving during operation
Widely Used - Din-rail & Wall mount kit, easy to install, suitable for professional networks such as industrial control, computer room, warehouse, factory, compact control box

Received successfully

Coupon Code

Technical Highlights

Ensures reliable data transmission and a long service life

Supports full-duplex or half-duplex mode, with automatic negotiation capability

Supports IEEE 802.3af/at (max. 30W power output per PoE port)

Network ports support automatic MDI/MDI-X crossover (no need for dedicated crossover cables)

Features a built-in store-and-forward mechanism and supports multiple network protocols

Adopts a green energy-efficient design, utilizing a low-power CPU

Operating power supply: DC 48V-57V, with reverse polarity protection and 4A overcurrent protection

Lightning surge protection (for power supply): 5000A (surge waveform: 8/20μs)

Complies with industrial-grade operating standards, with a mean time between failures (MTBF) of over 300,000 hours

Technical Specifications

Model	ING08-080GP
Ethernet Port	8*10/100/1000Base-T (automatic detection)
Network Protocol	IEEE802.3 - CSMA/CD； IEEE802.3i - 10Base-T； IEEE802.3u - 100Base-TX/FX； IEEE802.3x - flow control； IEEE802.3z - 1000Base-X； IEEE802.3ab - 1000Base-T；
Work Environment	Working temperature: -40~85 ℃ (-40~185 ℉) Storage temperature: -40~85 ℃ (-40~185 ℉) Relative humidity: 5% to 95% (no condensation)
PoE	PoE standard: IEEE802.3af(15.4W), IEEE802.3at(30W) PoE port output voltage: DC 48-52V PoE Pin: (af/at): 1/2+, 3/6-
Power Supply	Input voltage: DC48-52V Access terminal: Phoenix terminal Supports dual power redundancy Supports built-in overcurrent 4.0A protection Support reverse protection
Switch properties	Exchange capacity: 16Gbps Application level: Layer 2 Whole Machine Packet Forwarding Rate: 11.904Mpps MAC table: 8K Packet buffer: 1M Delay time: <4μs Exchange method: store-forward Power consumption: <3W

Mechanical Properties	Shell: IP40 protection grade, metal shell Installation: DIN clips rail type Radiating method: natural cooling, no-fan Weight: 0.64Kg Size: 143 x 101 x 44mm (L x W x H)
LED Indicators	Power indicator light: PWR interface indicator light: Electrical port (Link/ACT)
Authentication	CE、FCC、RoHS、ISO9001、Inspection report from the Ministry of Public Security, telecom grade network access license, and Vettel testing report
MTBF	300,000H
EMI	FCC Part 15 Subpart B Class A，EN 55022 Class A
EMS	IEC(EN)61000-4-2(ESD): ±4kV(contact), ±8kV(air) IEC(EN)61000-4-3(RS): 10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT):PowerPort:±2kV; Data Port: ±1kV IEC(EN)61000-4-5(Surge): Power Port: ±1kV/DM, ±2kV/CM; Data Port: ±1kV
Industry Standards	IEC61000-4-6(CS): 10V(150kHz～80MHz) IEC(EN)61000-4-16(CM EMI) : 30V cont. 300V,1s IEC 60068-2-27 (Shock) IEC 60068-2-32 (Freefall) IEC 60068-2-6 (Vibration)
