Home > Ethernet Switch > 8 Port 10 Gigabit SFP Managed Switch, Support 1G Sfp and 10G Sfp+ Module, 160Gbps Bandwidth, L3 Web Managed, Metal Fanless Fiber Binardat Network Switch

8 Port 10 Gigabit SFP Managed Switch, Support 1G Sfp and 10G Sfp+ Module, 160Gbps Bandwidth, L3 Web Managed, Metal Fanless Fiber Binardat Network Switch

SKU: 10G08-0800GSM
$159.99 $0.00

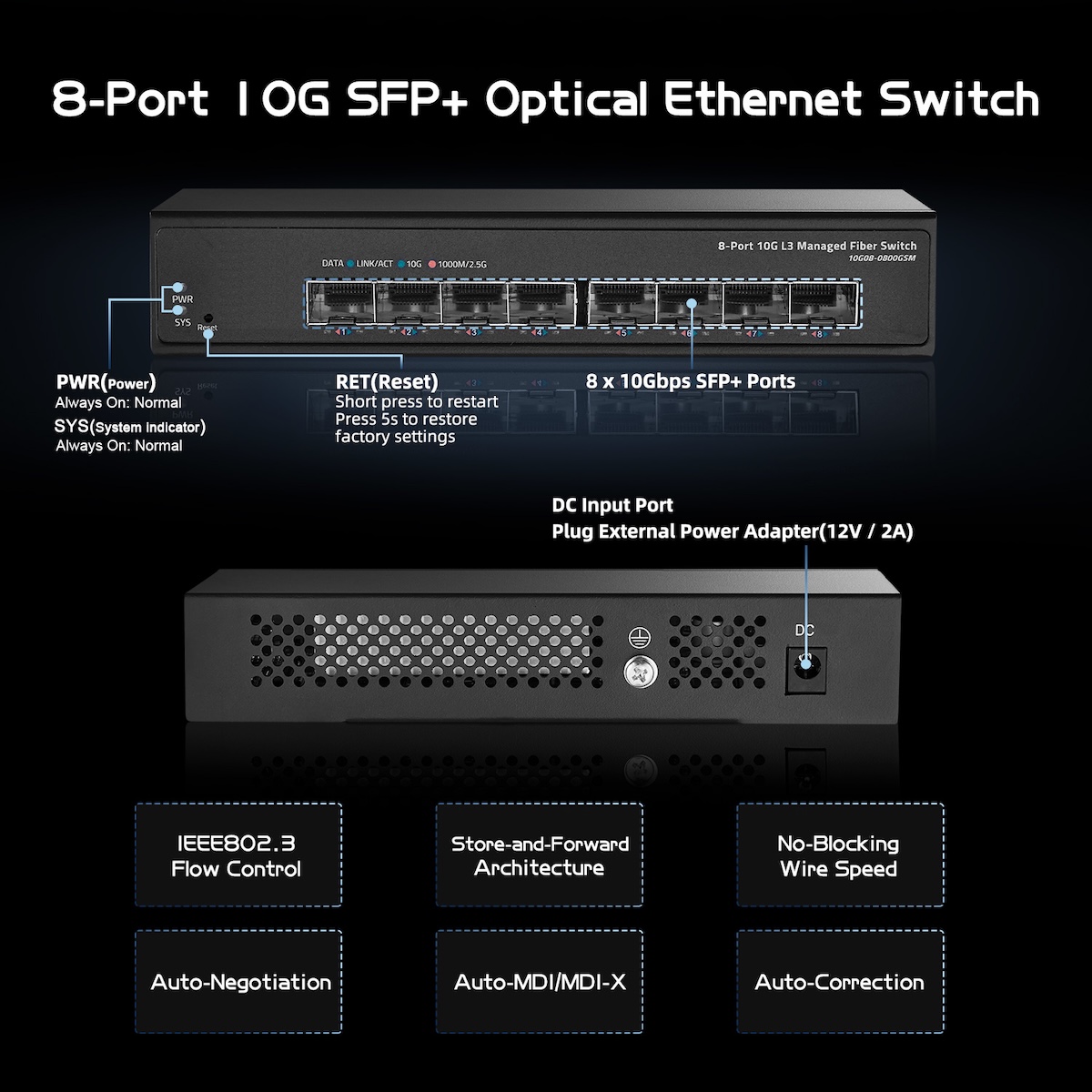

  • 10G SFP+ Ports – Equipped with 8 x 10Gbps SFP+ ports, supporting 1G/10G SFP modules. To ensure optimal transmission performance, the use of high-quality branded optical modules and fibers is recommended.
  • L3/L2 Web Managed – Supports Layer 3 management, IPv4/IPv6, Static Routing, OSPF, RIP, BGP4, DHCP Server, QoS, ACL, SNMP, STP/RSTP/MSTP (ERPS), Bandwidth Control, Flow Control, Spanning Tree, Link Aggregation, and Loop Detection. Also supports VLAN configuration, IP-MAC-VLAN Port Binding, and device/port status query. Compatible with Telnet/SSH.
  • 160Gbps Switching Capacity – Features 160Gbps switching capacity with enhanced data bandwidth. All ports support non-blocking 10G wire-speed forwarding for both upstream and downstream traffic.
  • Standard SFP Compatibility – Boasts an open standard SFP slot interface with no encryption, compatible with multi-mode, single-mode, and SFP-to-RJ45 modules.Does not include SFP modules; direct network cable connection is not supported-** Versatile Application **– Built with a metal chassis and fanless design for quiet, stable operation. Supports desktop and wall-mount installation, making it ideal for high-speed, long-distance fiber networks in home, office, data center, and other environments.
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
  • 8 Port 10 Gigabit SFP Managed Switch, Support 1G Sfp and 10G Sfp+ Module, 160Gbps Bandwidth, L3 Web Managed, Metal Fanless Fiber Binardat Network Switch
  • 8 Port 10 Gigabit SFP Managed Switch, Support 1G Sfp and 10G Sfp+ Module, 160Gbps Bandwidth, L3 Web Managed, Metal Fanless Fiber Binardat Network Switch
  • 8 Port 10 Gigabit SFP Managed Switch, Support 1G Sfp and 10G Sfp+ Module, 160Gbps Bandwidth, L3 Web Managed, Metal Fanless Fiber Binardat Network Switch
  • 8 Port 10 Gigabit SFP Managed Switch, Support 1G Sfp and 10G Sfp+ Module, 160Gbps Bandwidth, L3 Web Managed, Metal Fanless Fiber Binardat Network Switch
  • 8 Port 10 Gigabit SFP Managed Switch, Support 1G Sfp and 10G Sfp+ Module, 160Gbps Bandwidth, L3 Web Managed, Metal Fanless Fiber Binardat Network Switch
  • 8 Port 10 Gigabit SFP Managed Switch, Support 1G Sfp and 10G Sfp+ Module, 160Gbps Bandwidth, L3 Web Managed, Metal Fanless Fiber Binardat Network Switch
  • 8 Port 10 Gigabit SFP Managed Switch, Support 1G Sfp and 10G Sfp+ Module, 160Gbps Bandwidth, L3 Web Managed, Metal Fanless Fiber Binardat Network Switch
  • 8 Port 10 Gigabit SFP Managed Switch, Support 1G Sfp and 10G Sfp+ Module, 160Gbps Bandwidth, L3 Web Managed, Metal Fanless Fiber Binardat Network Switch
1/1
  • 8 Port 10 Gigabit SFP Managed Switch, Support 1G Sfp and 10G Sfp+ Module, 160Gbps Bandwidth, L3 Web Managed, Metal Fanless Fiber Binardat Network Switch
  • 8 Port 10 Gigabit SFP Managed Switch, Support 1G Sfp and 10G Sfp+ Module, 160Gbps Bandwidth, L3 Web Managed, Metal Fanless Fiber Binardat Network Switch
  • 8 Port 10 Gigabit SFP Managed Switch, Support 1G Sfp and 10G Sfp+ Module, 160Gbps Bandwidth, L3 Web Managed, Metal Fanless Fiber Binardat Network Switch
  • 8 Port 10 Gigabit SFP Managed Switch, Support 1G Sfp and 10G Sfp+ Module, 160Gbps Bandwidth, L3 Web Managed, Metal Fanless Fiber Binardat Network Switch
  • Description
10G08-0800GSM is a Layer 3 10G fiber managed switch, featuring 8 x 10Gbps SFP+ fiber ports. It integrates comprehensive security policies, robust QoS capabilities, and rich VLAN functions, simplifying management and maintenance. This switch meets networking and access needs for enterprises, communities, hotels, office networks, and campus networks.

Technical Highlights

  • IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
  • Backward compatible with 1000M/2.5Gbps transmission rate;
  • 10Gbps SFP+ optical modules are required, supporting SR/LR/LRM/ER/ZR and other models;
  • Layer 3 routing protocol control, adaptable to multiple services, efficient and secure information transmission;
  • Support static convergence and dynamic convergence (LACP) 2 convergence modes, effectively increase the link bandwidth, improve the reliability of the link, and at the same time can achieve load balancing, link backup;
  • Flexible and convenient management and maintenance Supports various management modes, such as Telnet, and SSH;
  • Support WEB management, simple and efficient, convenient for installation and debugging of engineering and maintenance personnel;
  • Supports file upload and download management through TFTP.


Technical Parameter

Model 10G08-0800GSM
Interface 8*1000M/2.5Gbps/10Gbps SFP+ Slots
Standard IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3x,IEEE802.1x,IEEE802.1q, IEEE802.1p,IEEE802.1d,IEEE802.1w,IEEE 802.3ad,IEEE802.3bz,IEEE802.3ae
Network Media(Cable) 1000BASE-X: MMF, SMF
10GBASE-X: MMF, SMF
10GBASE-SR: OM1/OM2/OM3 or above MMF (2m~300m)
10GBASE-LR: IEC's B1.1 and B1.3 SMF (2m~10000m)
LED Indicator PWR(Green), LNK/ACT(Green/Orange), SYS(Green)
MAC Address Table 16K, Auto-learning, Auto-aging
Jumbo Frame 12KByte
Packet Buffer 12Mbit
Transfer Mode Store-and-forward
Switching Capacity 160Gbps
Packet Forward Speed 119.04Mpps
Input Power Supply External adapter,DC,12V/2A
Dimensions(L*W*H) 168*94*32mm, Black
Operating Temperature 0°C ~ 40 °C
Storage Temperature -40 °C ~ 70 °C
Operating Humidity 10% ~ 90% non-condensing
Storage Humidity 5% ~ 90% non-condensing
Surge Rating
Power Supply
Differential mode ±2KV,Common mode ±4KV
Electrostatic Standard Contact ±6KV,Air ±8KV
MTBF >100000 hours
L3 Features DHCP Server, DHCPv6 Server, Static Route(IPV4/IPV6), Route Aggregation, RIP v1/v2, OSPF v2, BGP4
L2 Features VLAN, QoS, Link Aggregation, LLDP, IGMP, EEE, STP/RSTP/MSTP
