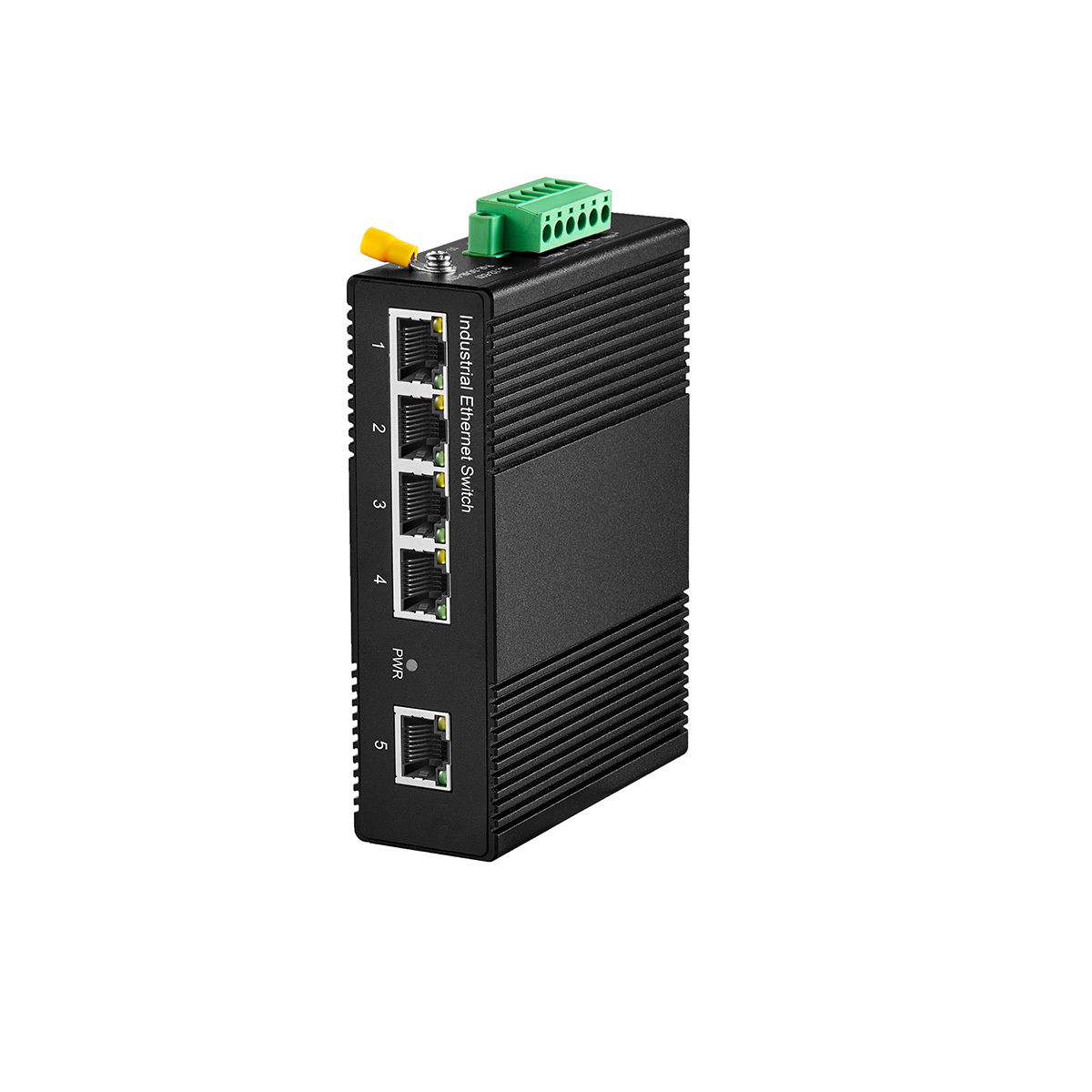

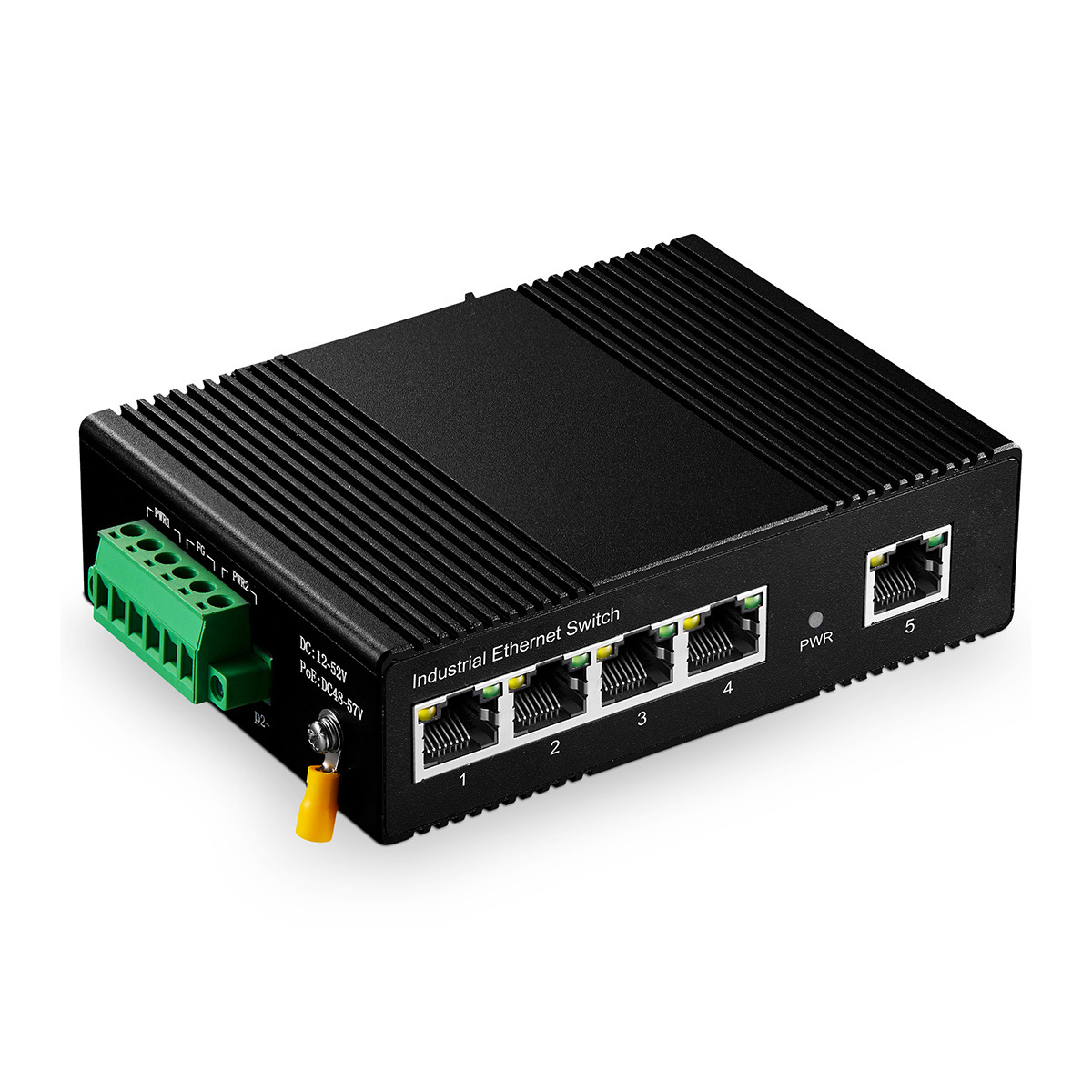

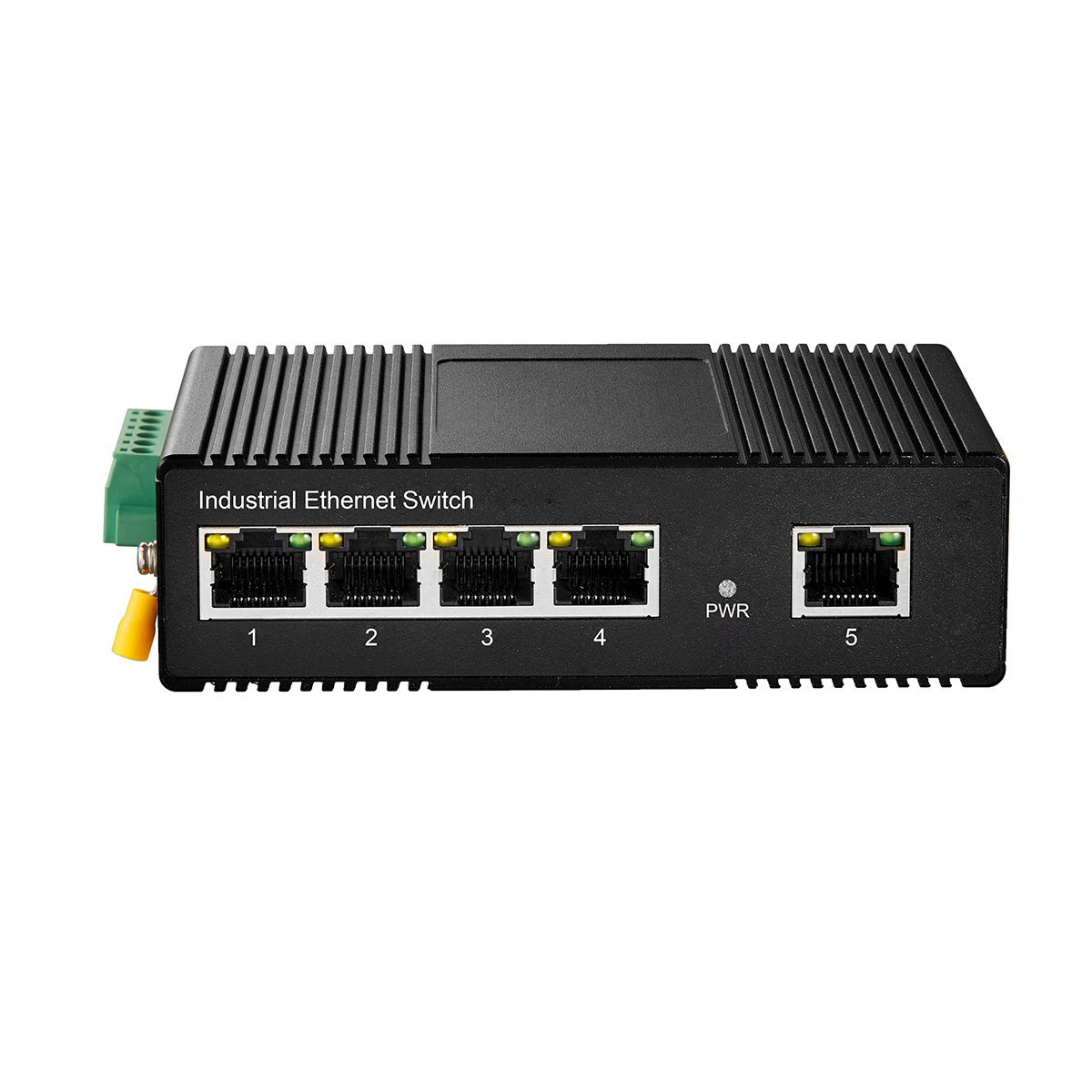

The ING05-041G is a 5-port Gigabit Industrial Ethernet switch, featuring 5×10/100/1000Base-T Ethernet ports.
Engineered for harsh environments, this industrial Ethernet switch operates within a wide temperature range of -40°C to 85°C, enabling reliable performance in tough outdoor cabinet settings. It also comes equipped with DIN rail mounting capability (ideal for industrial cabinet deployment), an IP40 protection rating (dust-resistant), and LED indicators (for real-time status monitoring)—all combining to make it a true plug-and-play industrial-grade device.
Leveraging its exceptional performance and rugged design, the ING05-041G delivers reliable and efficient network solutions for diverse industrial environments. As industrial scenarios like intelligent manufacturing, smart mining, and smart transportation advance rapidly, the application of industrial Ethernet switches (such as the ING05-041GC) will become increasingly widespread—playing a significant role in driving the implementation of Industry 4.0.
Technical Highlights

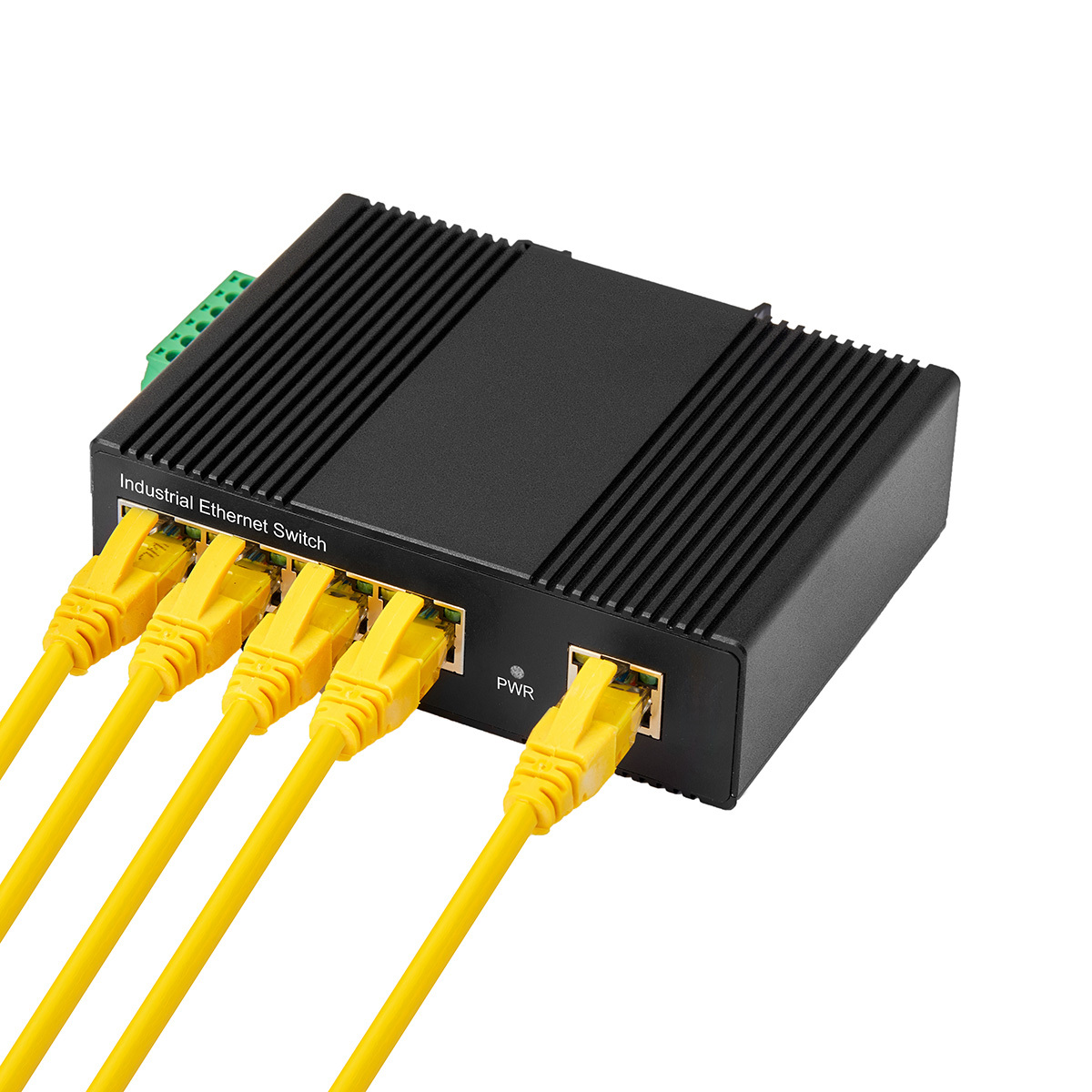

- Provides 5×10/100/1000Base-T RJ45 electrical ports for flexible high-speed wired connectivity.
- Supports full-duplex/half-duplex modes with automatic negotiation capability, adapting to different network device requirements.

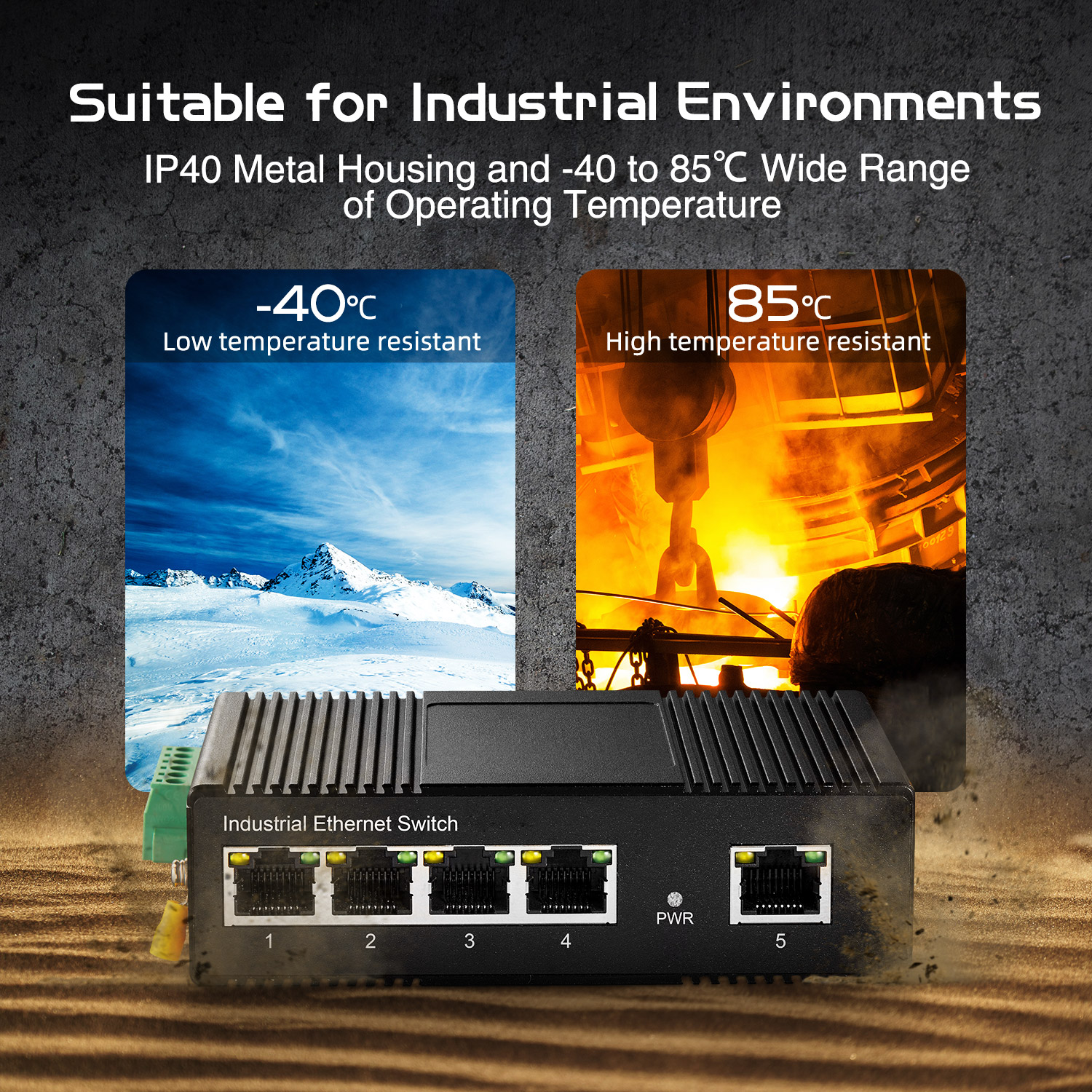

- Operates within a wide temperature range of -40°C to 85°C, suitable for harsh industrial or outdoor environments.

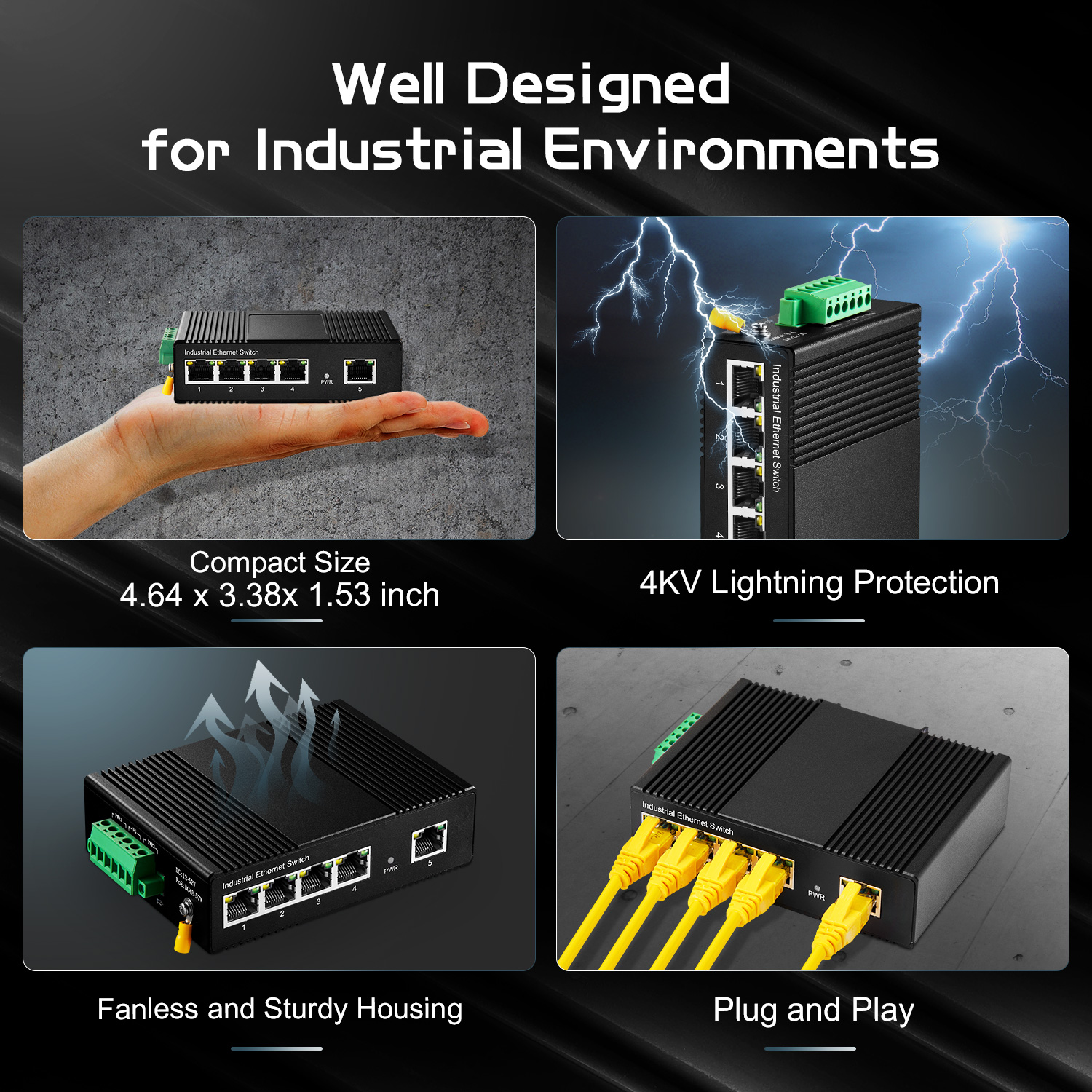

- Features IP40 protection rating, fanless design, and natural heat dissipation—ensuring dust resistance and stable operation without noise.
- Equipped with a durable metal housing, supporting DIN-rail mounting as standard or optional wall mounting for flexible installation.

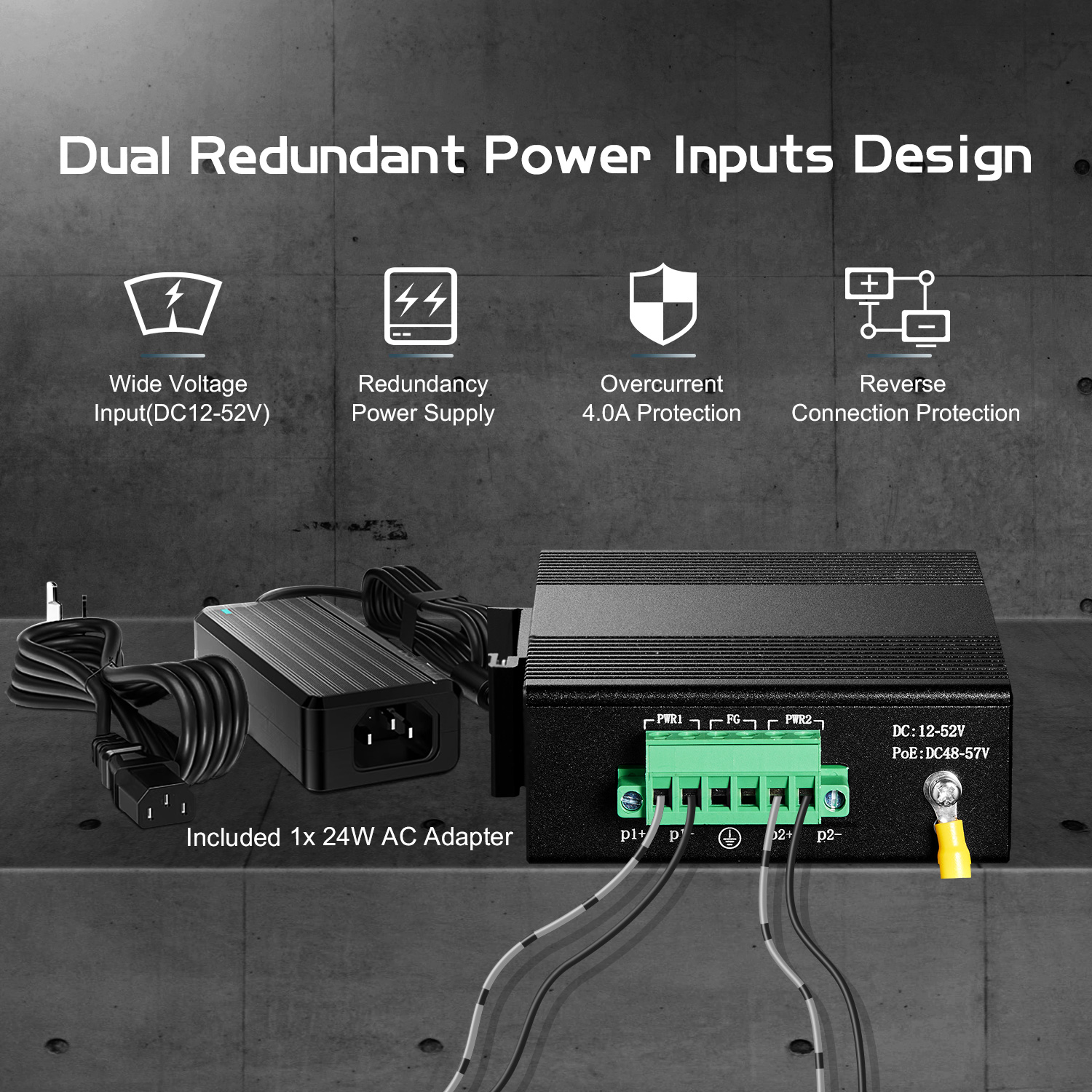

- Supports dual power supply redundant input with DC 12V–57V power input.
- ESD Protection: ±8kV (air discharge), ±4kV (contact discharge) to resist static interference.
- Network Port Lightning Protection: ±2kV (common mode), ±1kV (differential mode) for enhanced reliability in lightning-prone scenarios.
Technical Specifications
| Model |
ING05-041G |
| Ethernet Port |
5*10/100/1000Base-T (automatic detection)
Full/Half Duplex MDI/MDI-X (Adaptive)
Transmission distance: ≤ 100 meters |
| Network Protocol |
IEEE802.3 - CSMA/CD；
IEEE802.3i - 10Base-T；
IEEE802.3u - 100Base-TX/FX；
IEEE802.3x - flow control；
IEEE802.3z - 1000Base-X；
IEEE802.3ab - 1000Base-T； |
| Work Environment |
Working temperature: -40~85 ℃ (-40~185 ℉)
Storage temperature: -40~85 ℃ (-40~185 ℉)
Relative humidity: 5% to 95% (no condensation) |
| Power Supply |
Input voltage: DC12-52V
Access terminal: Phoenix terminal
Supports dual power redundancy
Supports built-in overcurrent 4.0A protection
Support reverse protection |
| Switch properties |
Application level: Level 2
Backplane bandwidth: 10Gbps
Whole machine packet forwarding rate: 7.44Mpps
MAC table: 2K
Package buffer: 1M
Delay time:<10 μs
Exchange method: store forward
Power consumption of the whole machine:<3W |
|
|
| Mechanical Properties |
Shell: IP40 protection level, metal shell
Installation: DIN rail mounted, wall mounted
Heat dissipation method: natural cooling, no fan
Weight: 0.36Kg
Dimensions: 118 x 86 x 39mm (length x width x height) |
| LED Indicators |
Power indicator light: PWR interface indicator light: Electrical port (Link/ACT) |
| Authentication |
CE、FCC、RoHS、ISO9001、Inspection report from the Ministry of Public Security, telecom grade network access license, and Vettel testing report |
| MTBF |
300,000H |
| EMI |
FCC Part 15 Subpart B Class A，EN 55022 Class A |
| EMS |
IEC(EN)61000-4-2(ESD): ±4kV(contact), ±8kV(air)
IEC(EN)61000-4-3(RS): 10V/m(80～1000MHz)
IEC(EN)61000-4-4(EFT):PowerPort:±2kV; Data Port: ±1kV
IEC(EN)61000-4-5(Surge): Power Port: ±1kV/DM, ±2kV/CM; Data Port: ±1kV |
| Industry Standards |
IEC61000-4-6(CS): 10V(150kHz～80MHz)
IEC(EN)61000-4-16(CM EMI) : 30V cont. 300V,1s
IEC 60068-2-27 (Shock)
IEC 60068-2-32 (Freefall)
IEC 60068-2-6 (Vibration) |
