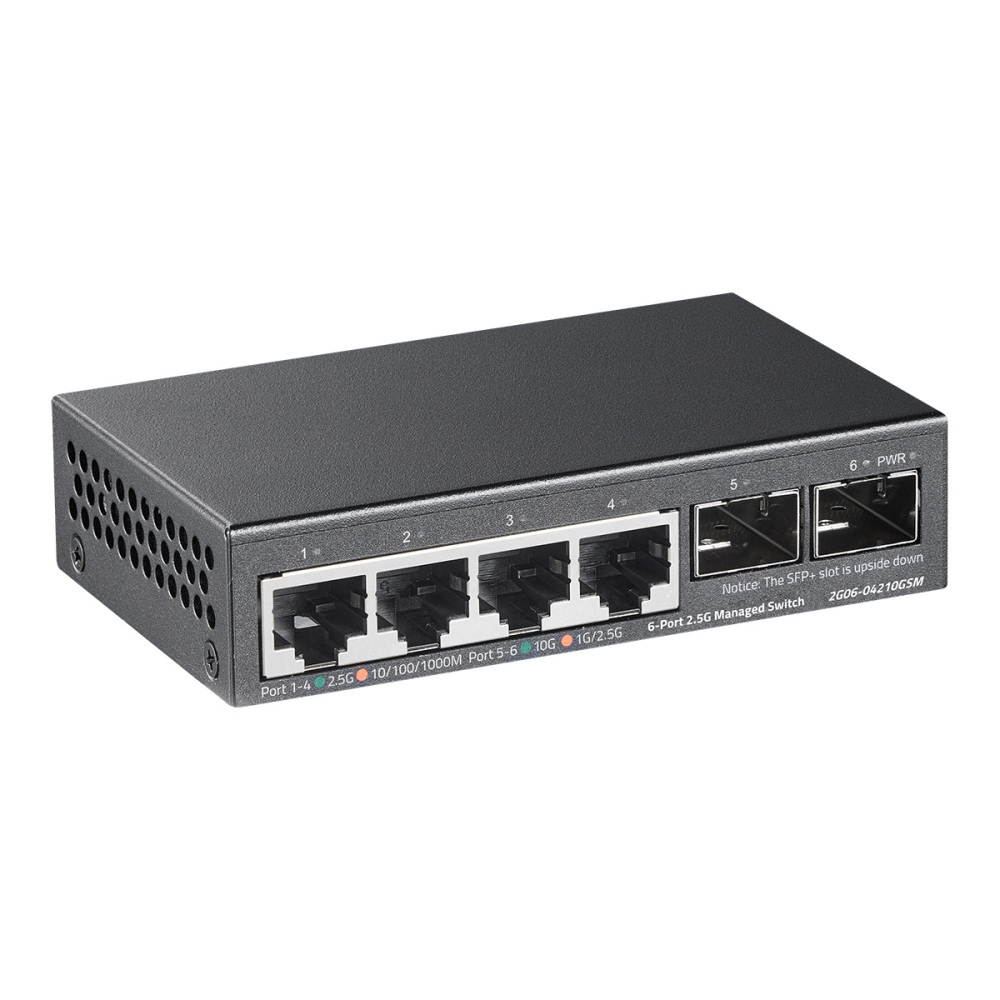

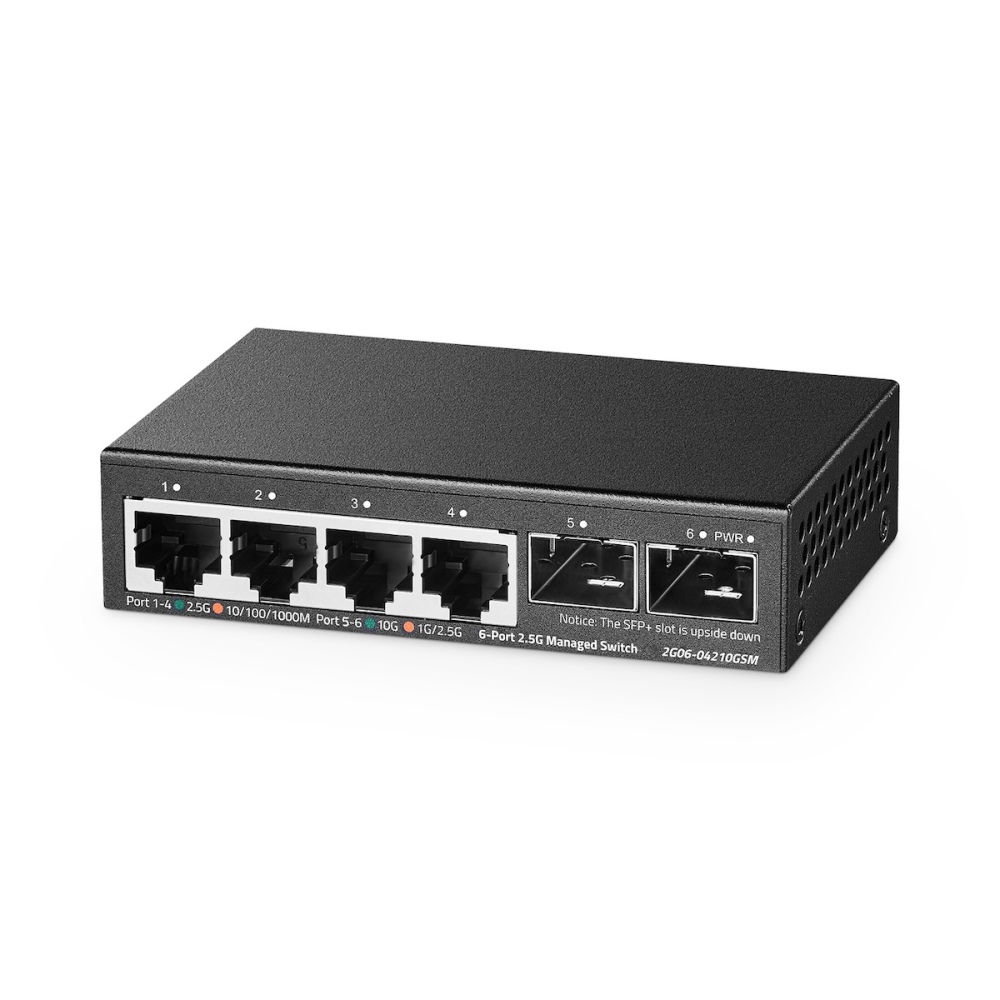

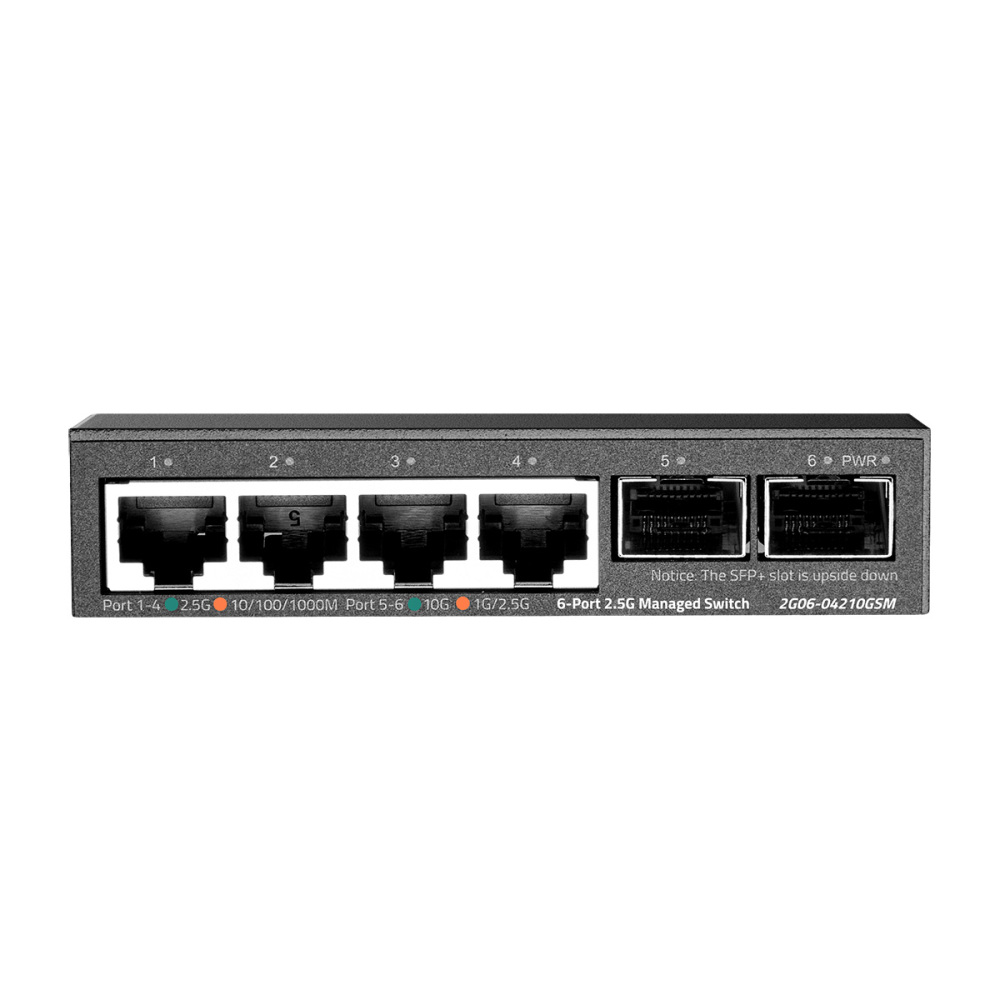

4 Port 2.5G Web Managed Switch with 2x10G SFP+ Slot, Ultra-Mini Size, Support Trunk/LACP/VLAN/QOS, Metal Multi-Gigabit Desktop/Wallmount Network Switch

SKU: 2G06-04210GSM

$79.99

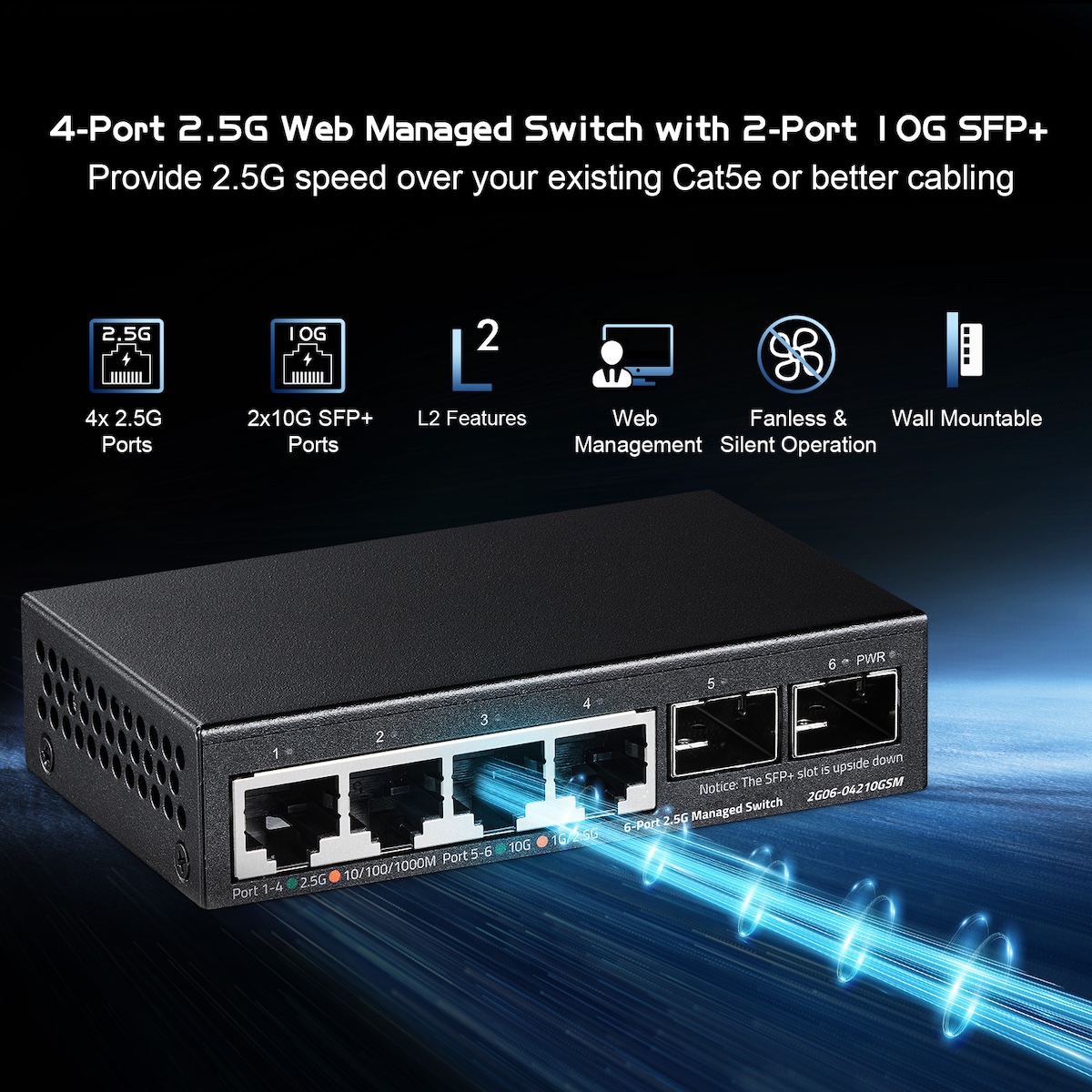

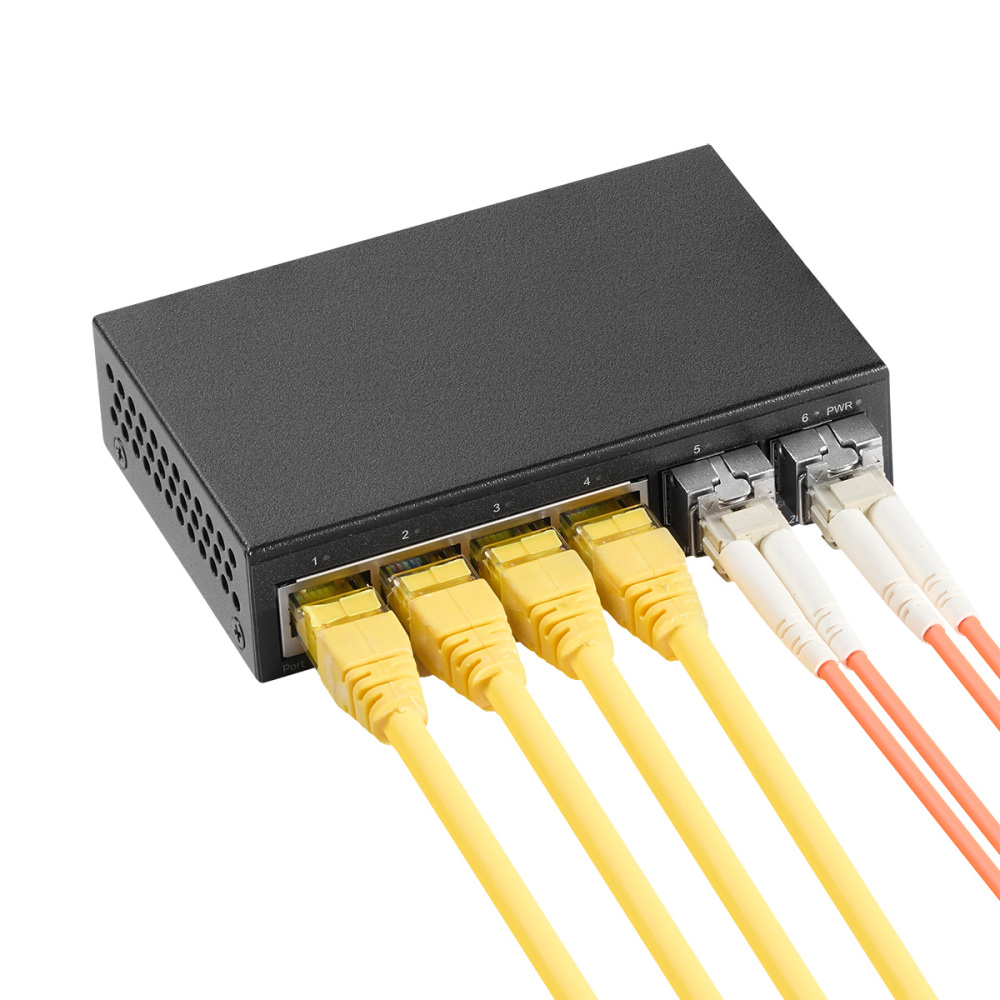

2.5G Ports - 4 x 2.5Gigabit ethernet Ports, compatible 100Mbps/1Gbps. 2x10G SFP+ Slot, Compatible with 1G/2.5G/10G optical modules (modules not included by default). 60G switching capacity.

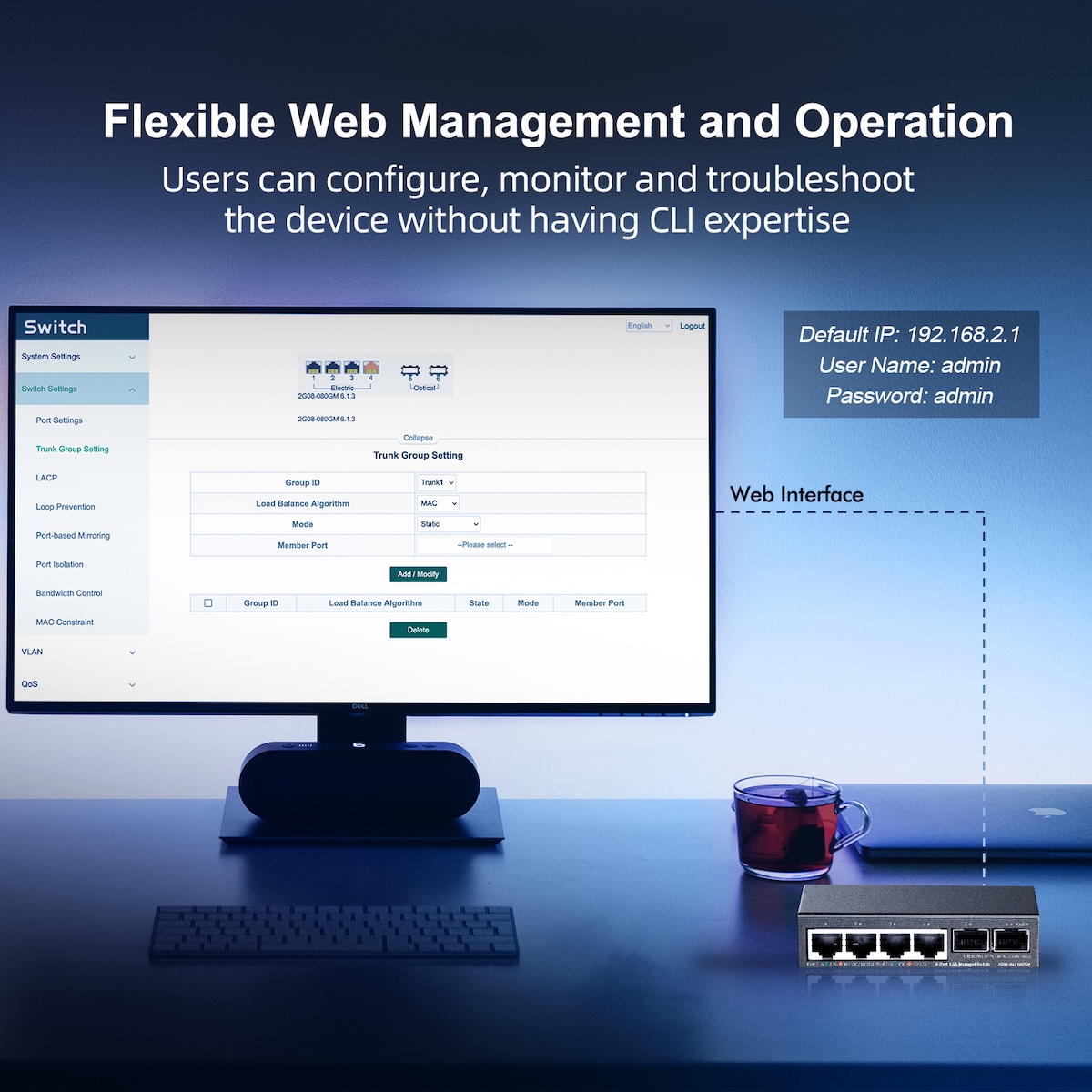

Esay Web Managed - Support Web GUI, include various L2 configuration: such as Trunk, Isolation, Loop, Mirror, Bandwidth, VLAN, QoS, security, IGMP, MAC address, Monitor, etc. Also support device/port status query, data statistics, more clearly know the real-time operation status of switch
Ultra-Mini Size - Excellent hardware design, ultra minimum size, space saving, metal case, support desktop and wall mount, can be installed at various locations
Easy to Use - Just plug in the power cord, connect the ethernet cable directly to the device, auto MDI/MDIX, auto-negotiation rate. Power and port led indicator light, clearly display the running status and port rate status, installation and maintenance are very simple
Widely Used - Fanless design, lower energy consumption, for home and office use without noise. 2.5G and 10G high speed, suited for various application, such as home entrainment, 4K video, gaming PC, NAS, PCIe Adapter, Server, WiFi 6 AP and more.

Received successfully

Coupon Code

Technical Highlights

RJ45 supports port auto-flip (Auto MDI/MDIX);

10G optical port support standard module 10G/2.5G/1G ;

Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;

Use of adaptive 10G/2.5G/1G standard optical modules, support SR/LR/LRM/ER/ZR and other models;

Supports 802.1Q VLAN, Port VLAN, QoS, bandwidth control, storm suppression;

Supports port traffic statistics, port monitoring, cable detection, and loopback protection;

Panel lights monitor operating status and assist in failure analysis;

Operating temperature: 0 °C ~ 40 °C.

Technical Parameter

Model	2G06-04210GSM

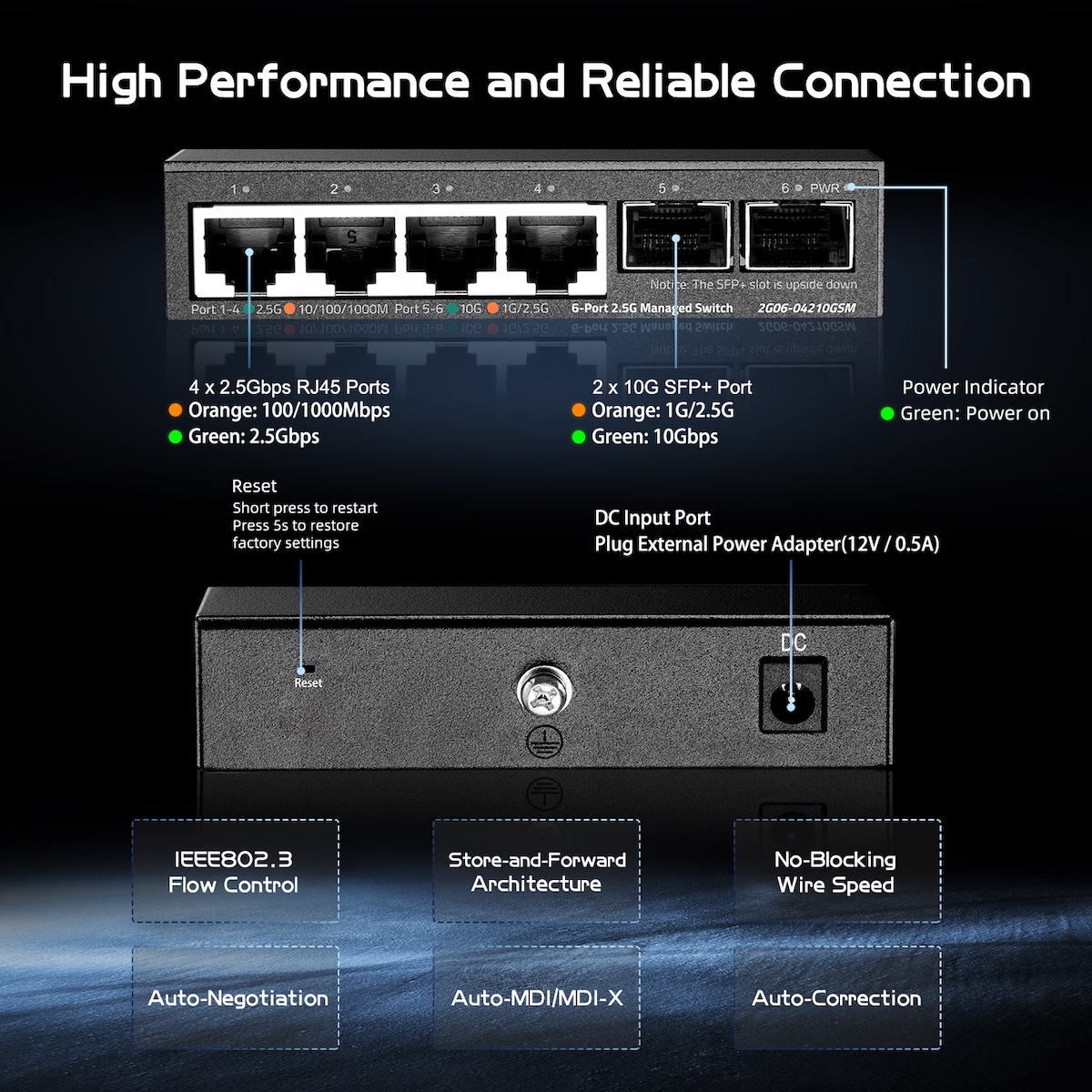

Interface	410M/100M/1000M/2.5Gbps RJ45 Ports 21000M/2.5G/10Gbps SFP+ Slots
Network Media(Cable)	10BASE-T:UTP category 3, 4 , 5 cable(≤100m) 100BASE-TX:UTP category 5, 5e cable(≤100m) 1000BASE-X:UTP category 5e, 6 cable(≤100m) 2.5GBASE-X:UTP category 6, 6A cable(≤100m) 1000BASE-X:MMF, SMF 10GBASE-X:MMF, SMF 10GBASE-SR:OM1/OM2/OM3 or above MMF (2m~300m) 10GBASE-LR:IEC's B1.1 and B1.3 SMF (2m~10000m)
Standard	IEEE802.3,IEEE802.3i ,IEEE802.3u,IEEE802.3ab,IEEE802.3bz,IEEE802.3ae,IEEE802.3x,IEEE802.3z, IEEE802.1q,IEEE802.1p
Indicator	PWR(Green), LNK/ACT(Green/Orange)
MAC Address Table	4K, Auto-learning, Auto-updating
Jumbo Frame	12KByte
Packet Buffer	8Mbit
Transfer Mode	Store-and-forward
Packet Forward Speed	44.64Mpps
Switching Capacity	60Gbps
Dimensions(LWH)	10063.724mm, Black
Input Voltage	AC: 100-240V,50/60Hz,0.5A Max
Operating Temperature	0°C ~ 40°C
Storage Temperature	-40°C ~ 70°C
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Surge Rating	Power Supply: Differential mode ±1KV,Common mode ±2KV Network Port: Differential mode ±2KV,Common mode ±4KV
Electrostatic Standard	Contact ±6KV,Air ±8KV
MTBF	>100000 hours
L2 Features	VLAN, QoS, Link Aggregation, LLDP, IGMP
