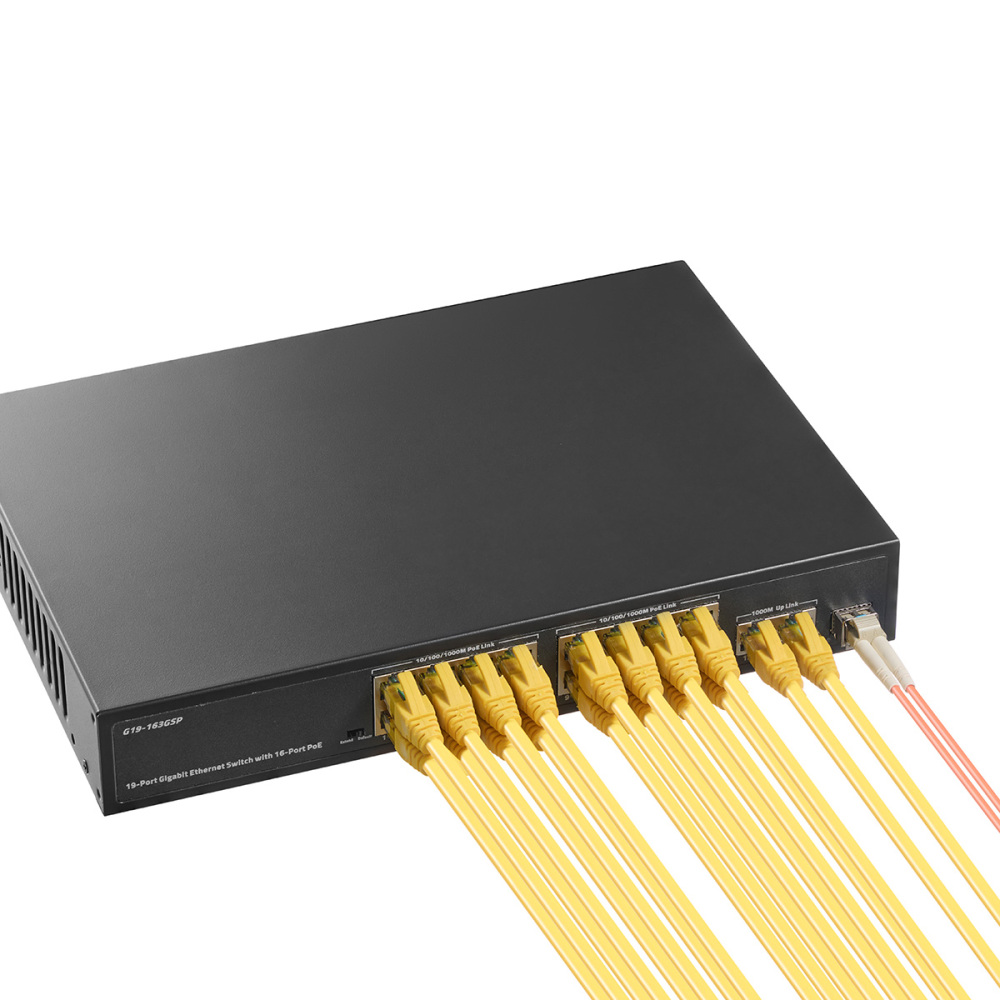

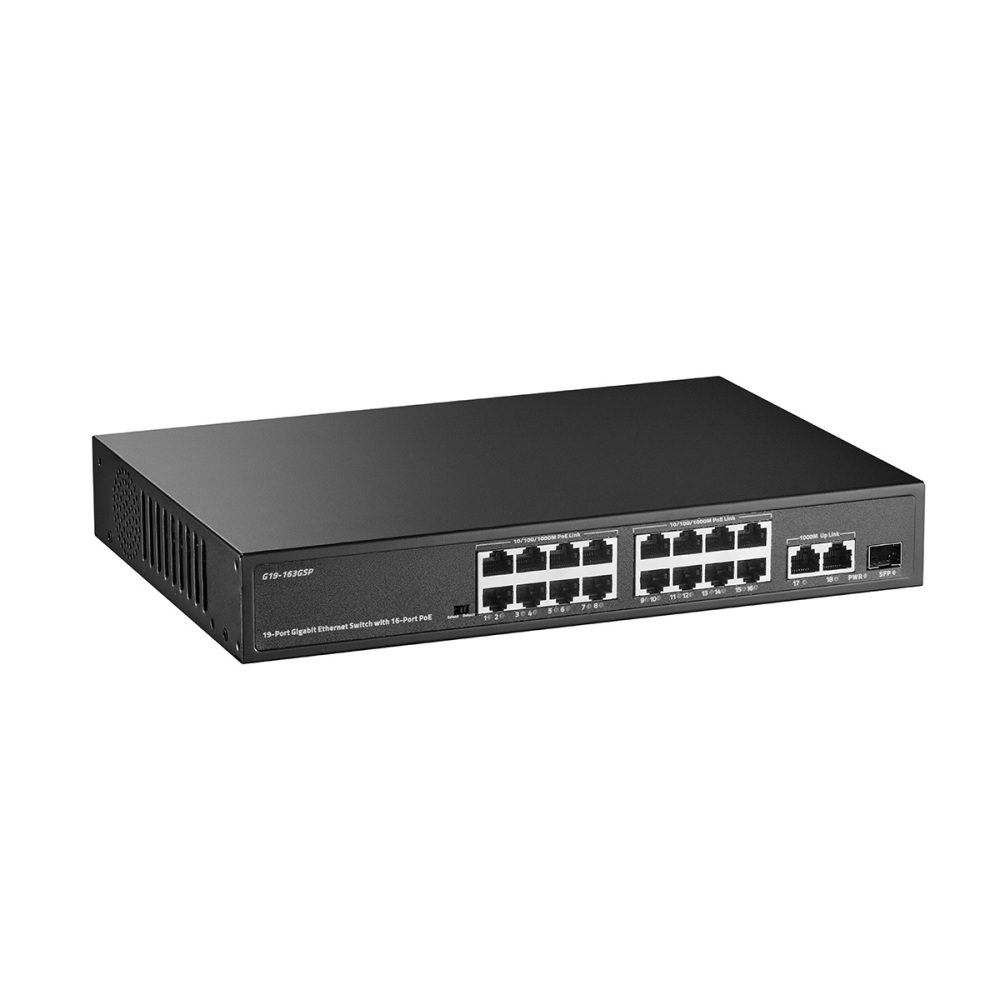

Binardat 19 Port POE Switch - 16 POE+ Ports (1000Mbps), 2 Gigabit Uplink, 1 SFP, IEEE802.3af/at, 300W Internal Power Supply, Metal Case Unmanaged Plug and Play

SKU: G19-163GSP

$105.99

19 Gigabit Ports - Features 16 x 1 Gigabit PoE ports, 2 Gigabit uplink ports (non-PoE), and 1 Gigabit SFP port—all ports support 10/100/1000 Mbps speeds. With a total bandwidth of 38 Gbps, each port is capable of delivering full gigabit performance.

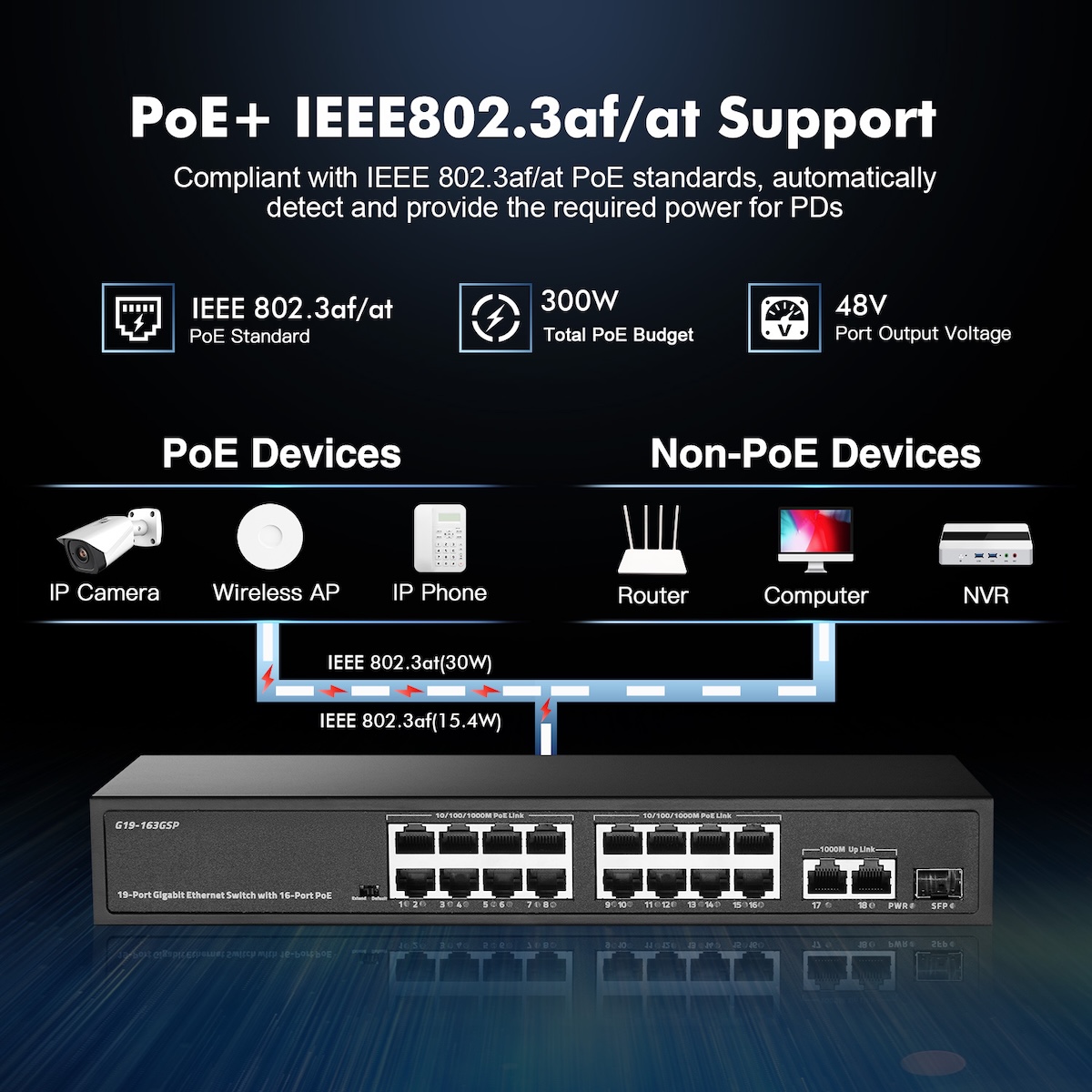

IEEE 802.3 af/at Compliance - Complies with IEEE 802.3af/at PoE standards, equipped with a built-in 300W power supply. Each port supports a maximum power delivery of 30W, with an output voltage range of 44–57V. Note: This unit does not provide power for passive 24V PoE devices.
Unmanaged Plug & Play - Integrates Power Detection functionality to automatically identify PoE-enabled devices. It is also compatible with non-PoE devices for seamless data transmission. Enjoy true plug-and-play convenience: simply connect the power cord and Ethernet cable directly to your devices—no additional configuration required.

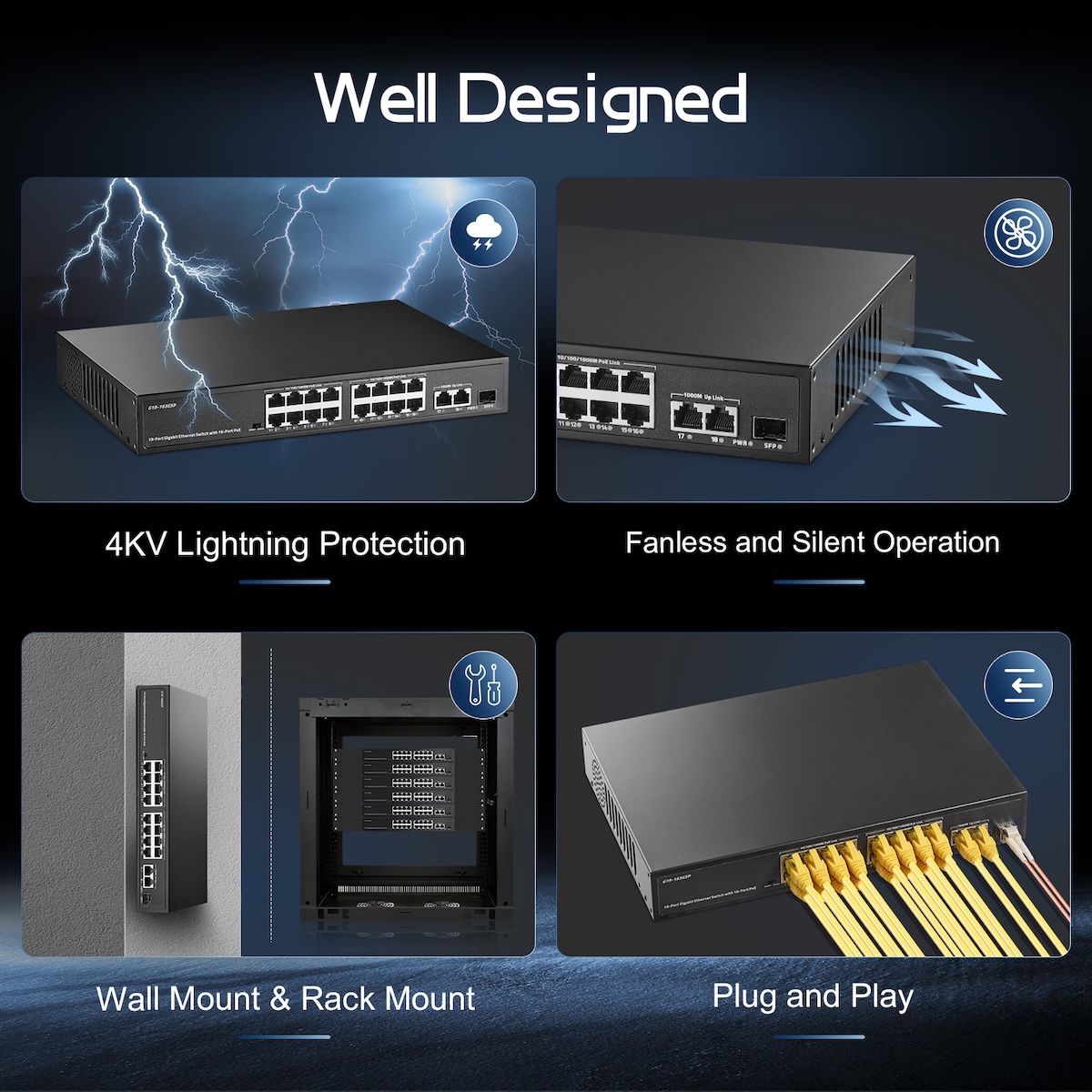

Easy Installation - Supports wall mounting for flexible placement. Its fanless design ensures silent operation, making it suitable for diverse locations such as desktops, low-voltage boxes, and equipment racks. Additional features include an extender function, plus VLAN isolation for ports 1–16 (these ports only communicate with uplink ports for enhanced network security).
Wide Application Range - Boasts a durable metal housing and LED indicator lights for real-time status monitoring. With reliable gigabit speeds, it is widely used for IP cameras, wireless access points, home networks, and office networks. Lifetime technical support is provided for long-term peace of mind.

Received successfully

Coupon Code

Description

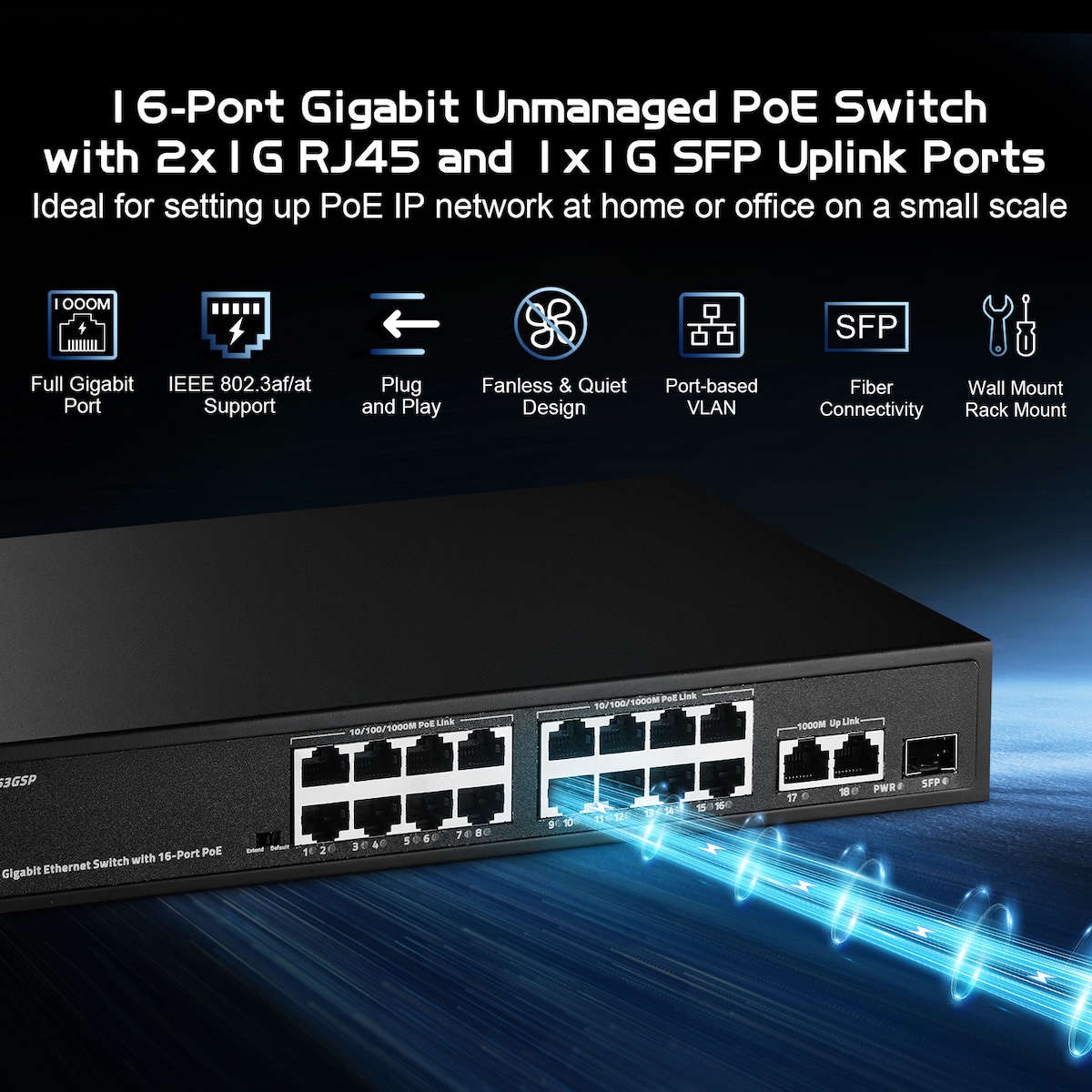

The G19-163GSP is a high-performance, low-power Gigabit Ethernet switch, serving as an ideal choice for building small and medium-sized local area networks (LANs). It comes with 16 x 10/100/1000Mbps ports, supplemented by 2 x 10/100/1000Mbps electrical uplink ports and 1 x 10/100/1000Mbps Gigabit SFP uplink port—these uplink ports enable connection to upstream devices with higher bandwidth.

Adopting store-and-forward technology, the switch ensures efficient bandwidth allocation to each individual port. It supports full-wire-speed Gigabit connections to workgroups or servers and features hassle-free plug-and-play functionality. Its flexible non-blocking architecture frees users from constraints related to bandwidth or media networks. The switch supports both half-duplex and full-duplex operating modes, and all switching ports are equipped with an auto-negotiation function (operating in store-and-forward mode).
Combining exceptional performance, simple operation, and intuitive usability, the F19-163GSP provides an ideal networking solution for workgroup users and small-scale LANs.

Technical Highlights

Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x and IEEE 802.3az standards;
Supports the IEEE 802.3at standard and is backward compatible with the IEEE 802.3af standard;

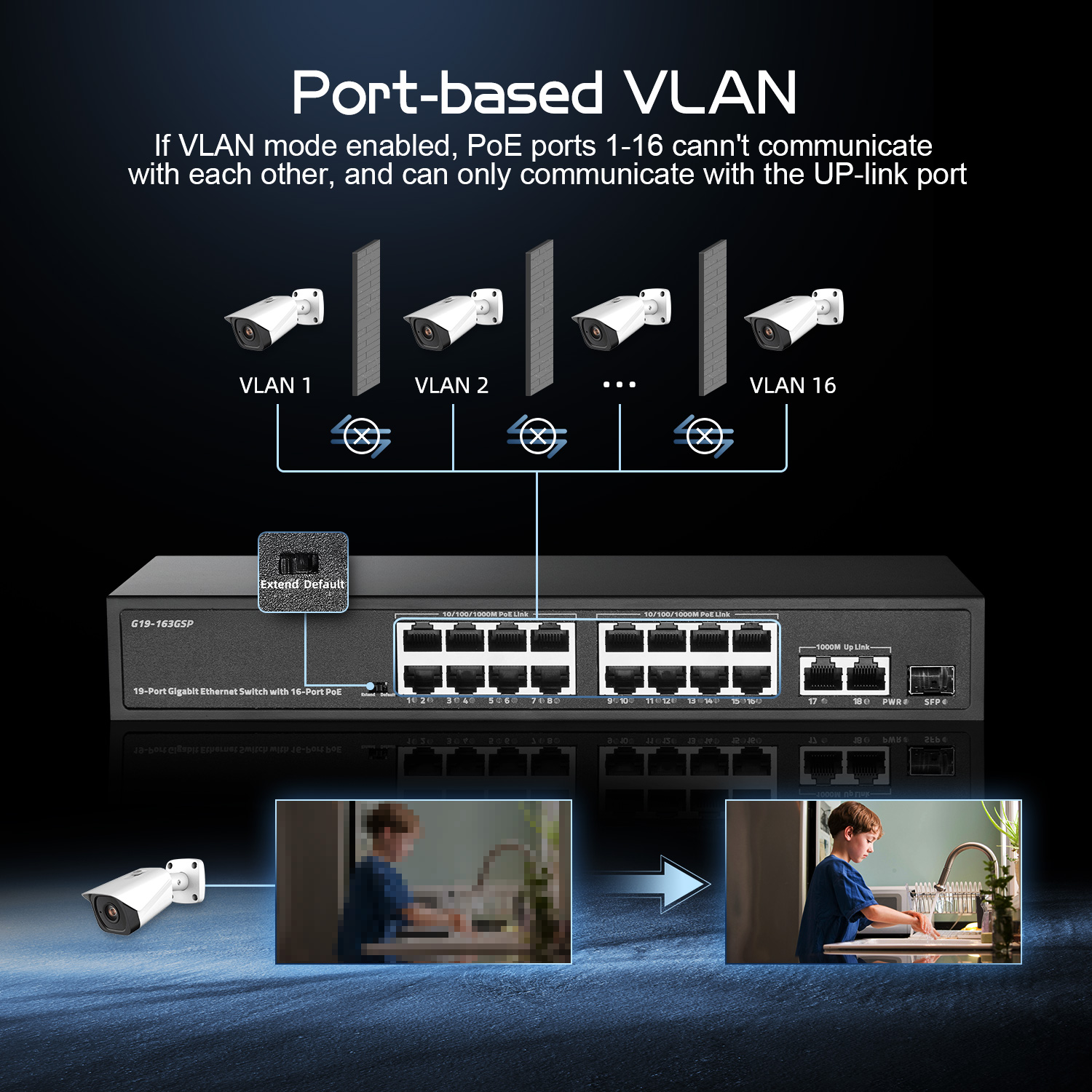

Equipped with VLAN Isolation to meet the needs of security monitoring;
Flow control mode: Full-duplex adopts the IEEE 802.3x standard, and half-duplex adopts the Backpressure standard;
Adopts the store-and-forward mode;
The maximum PoE output per port is 30W, and the maximum total PoE output power reaches 300W.

Technical Parameter

Model	G19-163GSP
Ethernet	16 x 10/100/1000M RJ45 ports (Auto Negotiation/Auto MDI/MDIX) 2 x 10/100/1000M uplink ports 1 x SFP 10/100/1000Mbps uplink port
ChipSet	4RTL8367S+2IP808AR
Standard	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az
Network Media(Cable)	100BASE-TX: UTP category 5, 5e cable（≤100m） 1000BASE-TX UTP category 5e, 5 cable（≤100m）
MAC Address Table	2K, Auto-learning, Auto-updating
Transfer Mode	Store-and-Forward
Switching Capacity	38Gbps
Packet Forward Speed	28.272Mpps
Packet Buffer	1.5Mbits

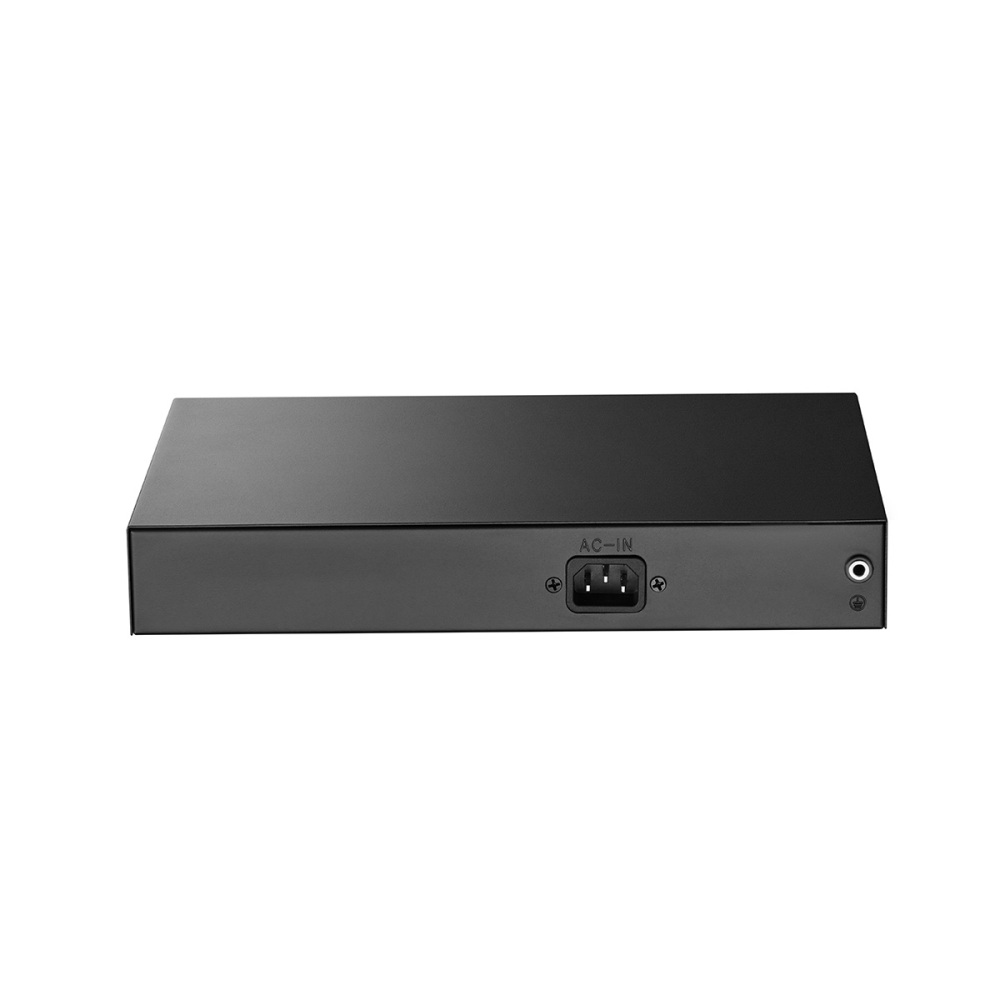

Power supply	Built-in DC: 52V, 300W
Dimensions (LWH)	290×200×44mm
PoE Ports (RJ45)	1-16 PoE port compliant with IEEE 802.3at/af standards, Maximum 30W per port
Power Supply Pins	1/2 (+), 3/6 (-)
Temperature	Operating Temperature: 0°C ~ 40 °C Storage Temperature: -40 °C ~70°C
Humidity	Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing

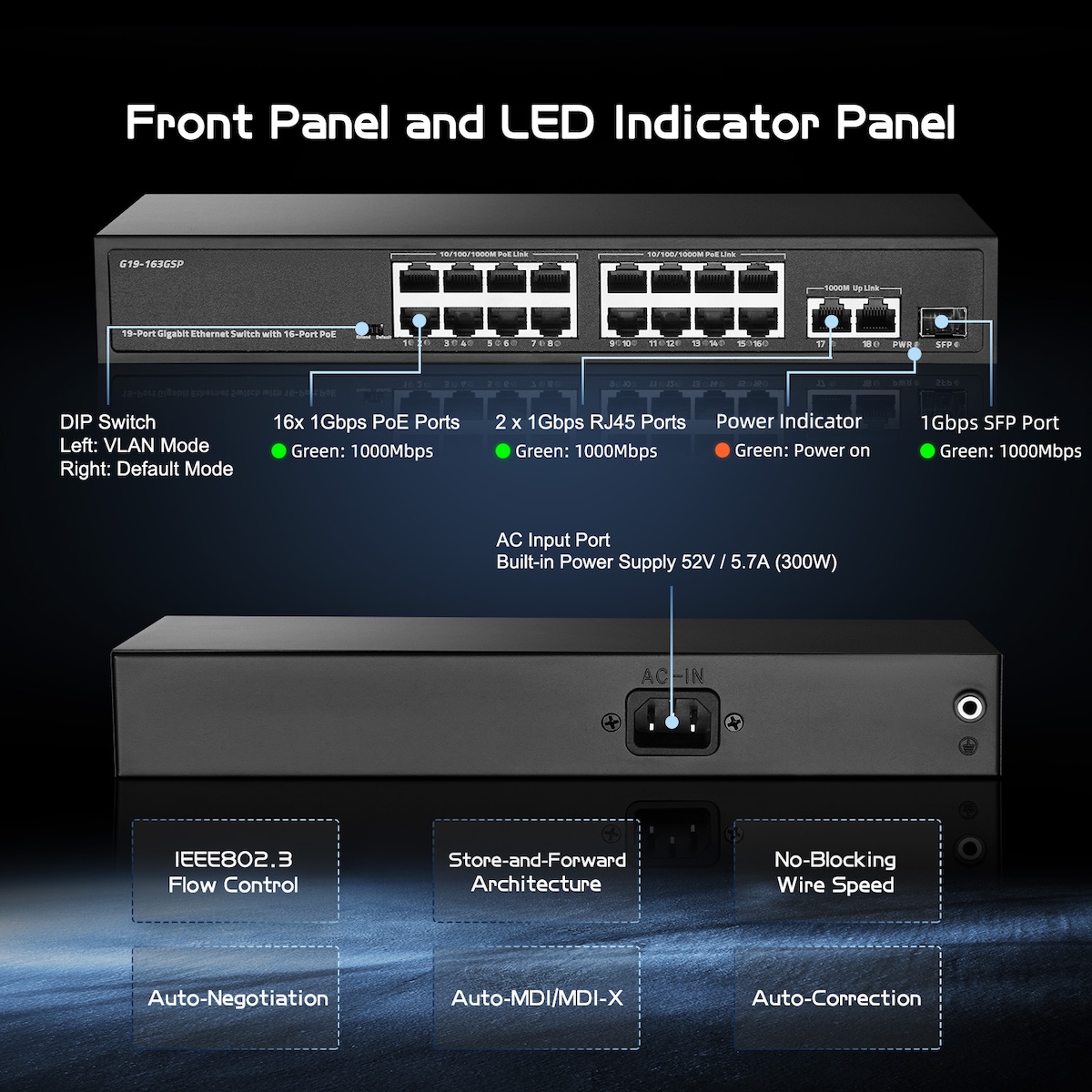

Led Indicator	Per Unit: Power.System (Power: Red Light) – Steady on when loaded Per Port: Link/Activity (Link/Act: Green Light) – Blinking when signal is connected
