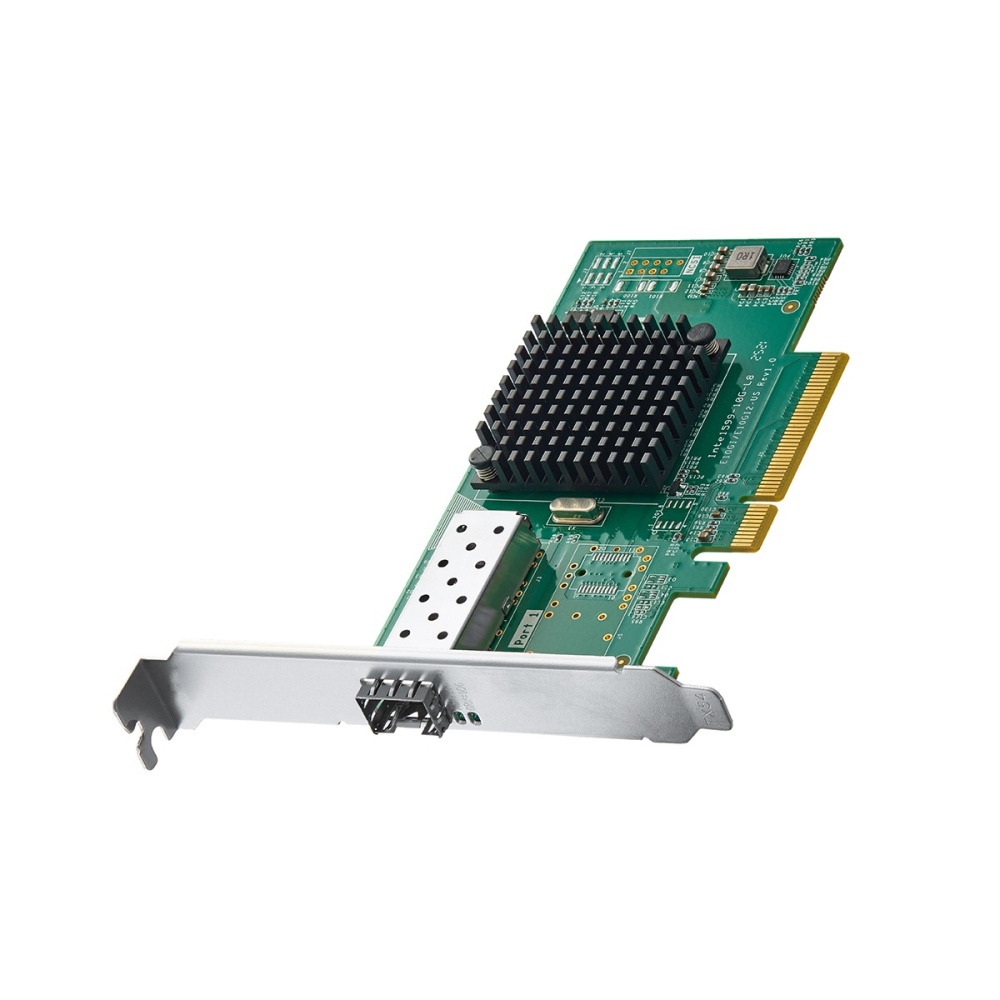

10Gbps SFP+ PCIe Network Adapter - Intel X520 82599 Controller, SFP+ NIC (10/G/1G/100Mbps) for Windows/Linux/VMware

SKU: NA10G1S

$59.99

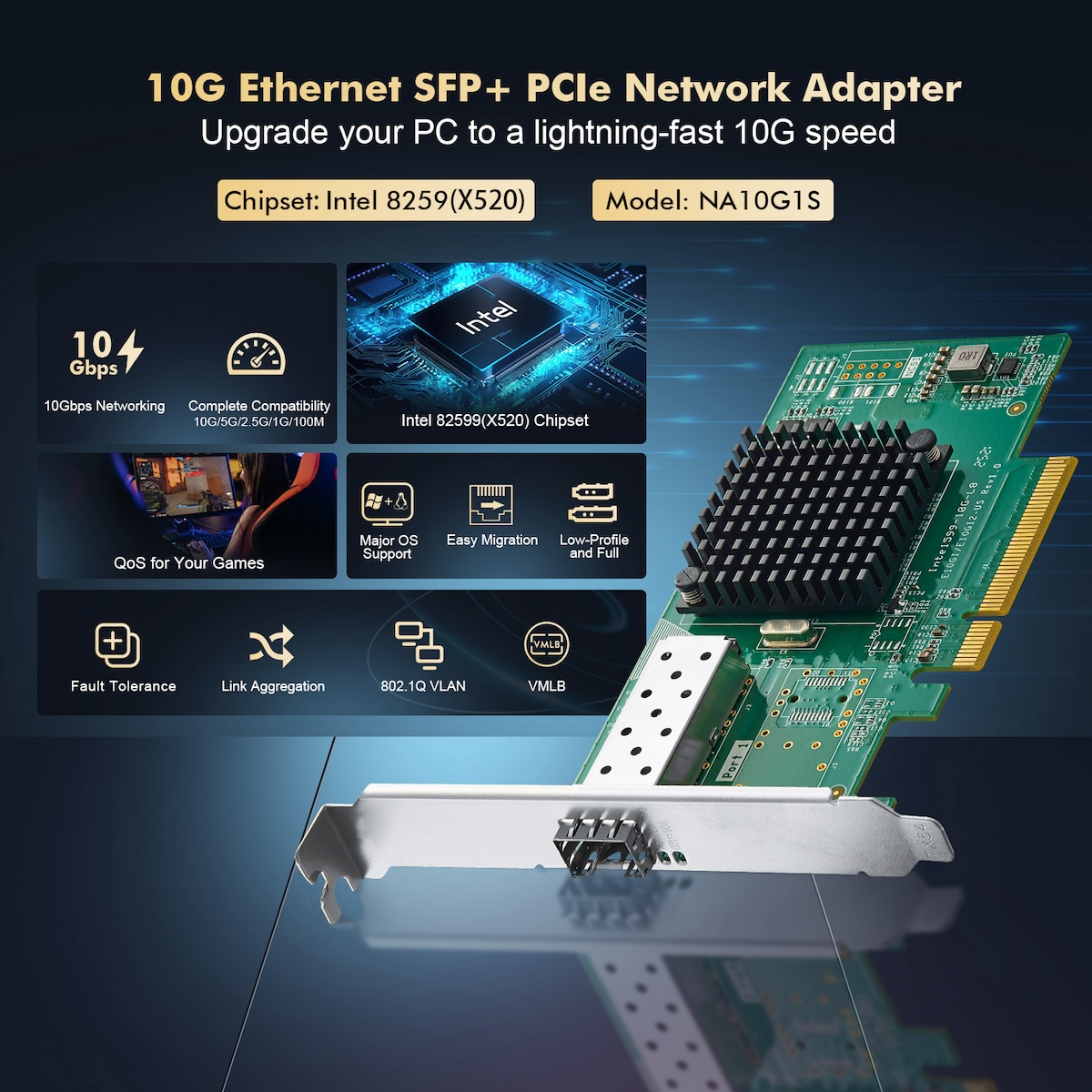

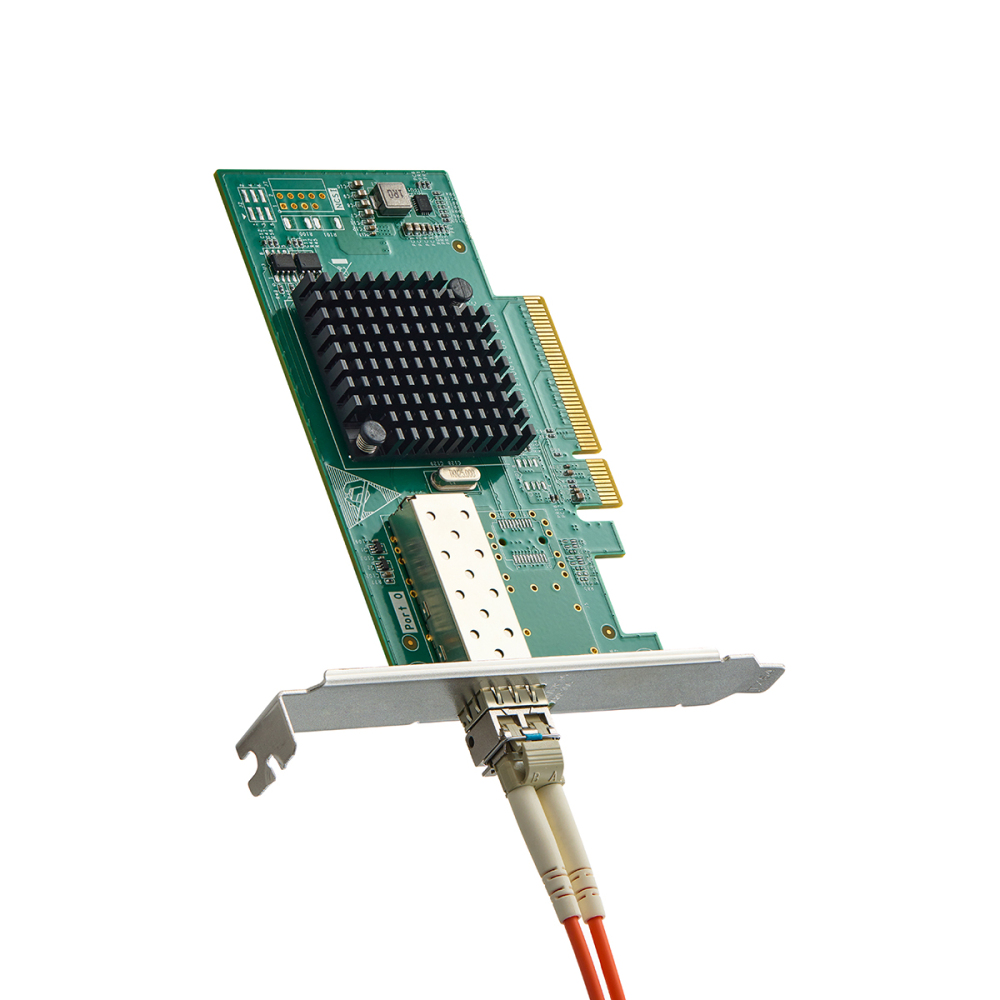

10Gbps Network Performance - This adapter features a single 10 Gigabit SFP+ port, powered by the Intel X520 82599 chipset. It supports 1Gbps/100Mbps/10Mbps speeds and includes 1x SFP+ slot compatible with SFP+ SR, SFP+ LR modules, and direct-attach SFP+ cables. Note: Module not included by default.

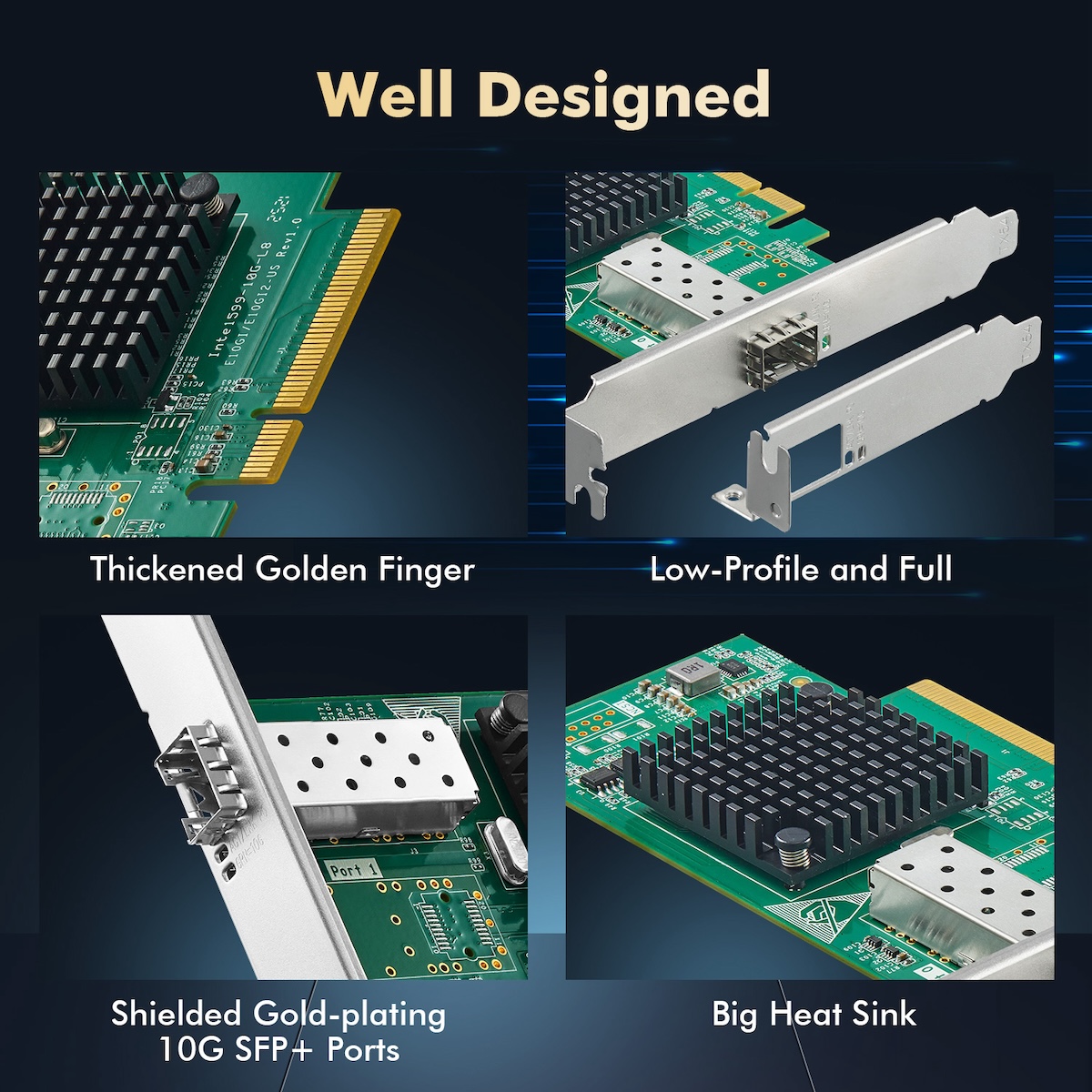

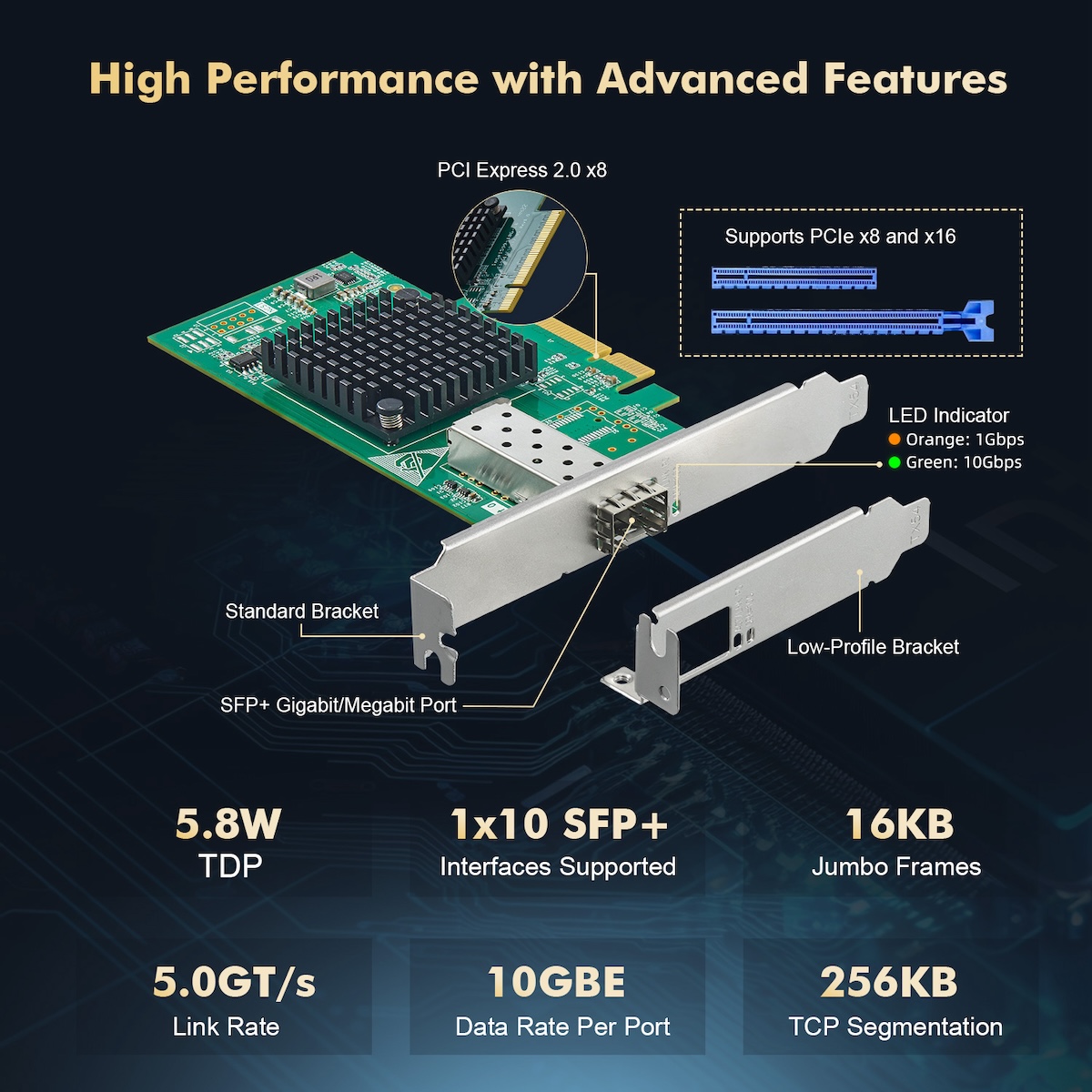

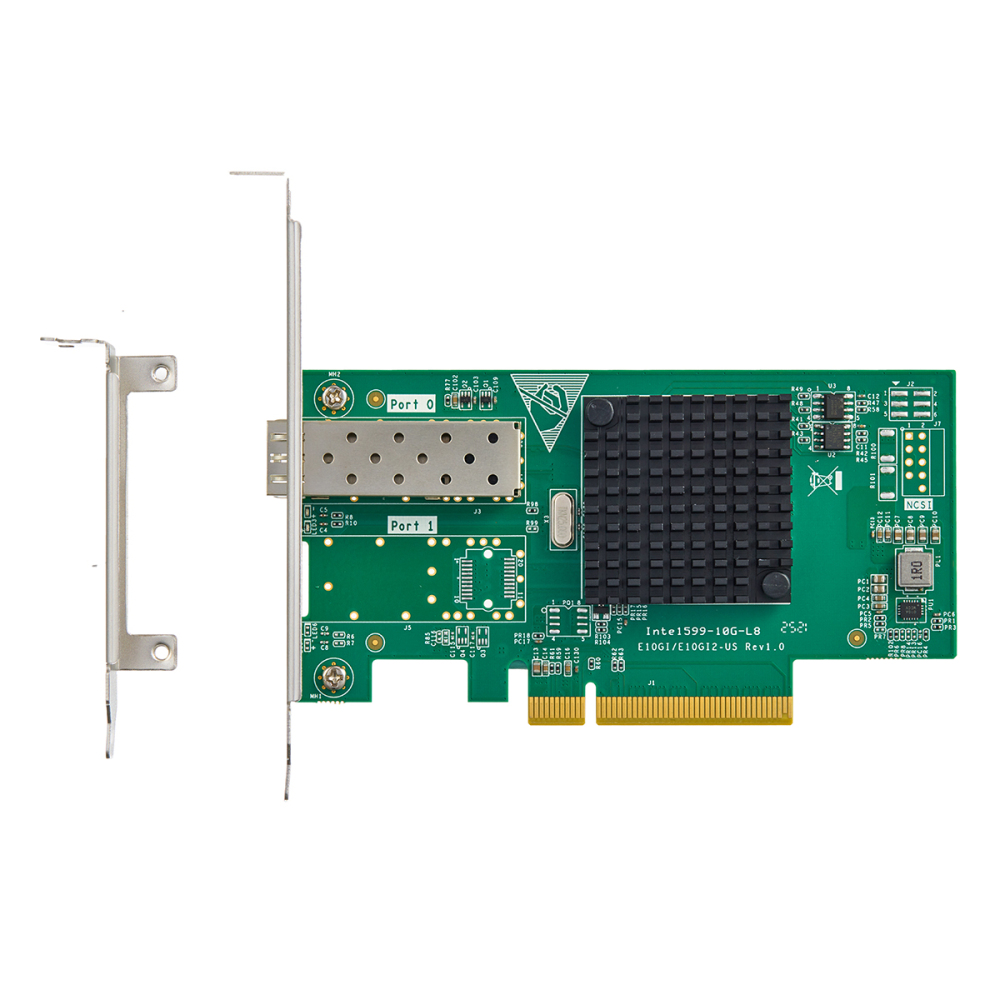

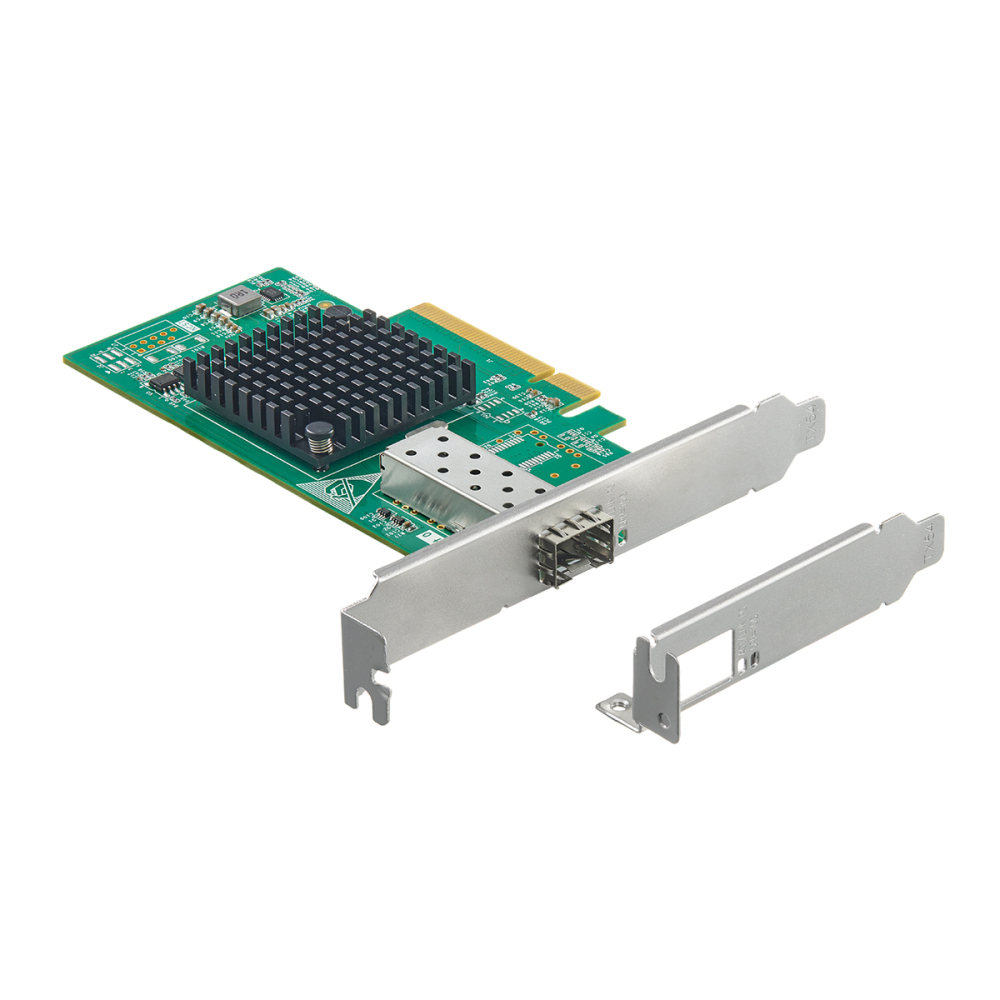

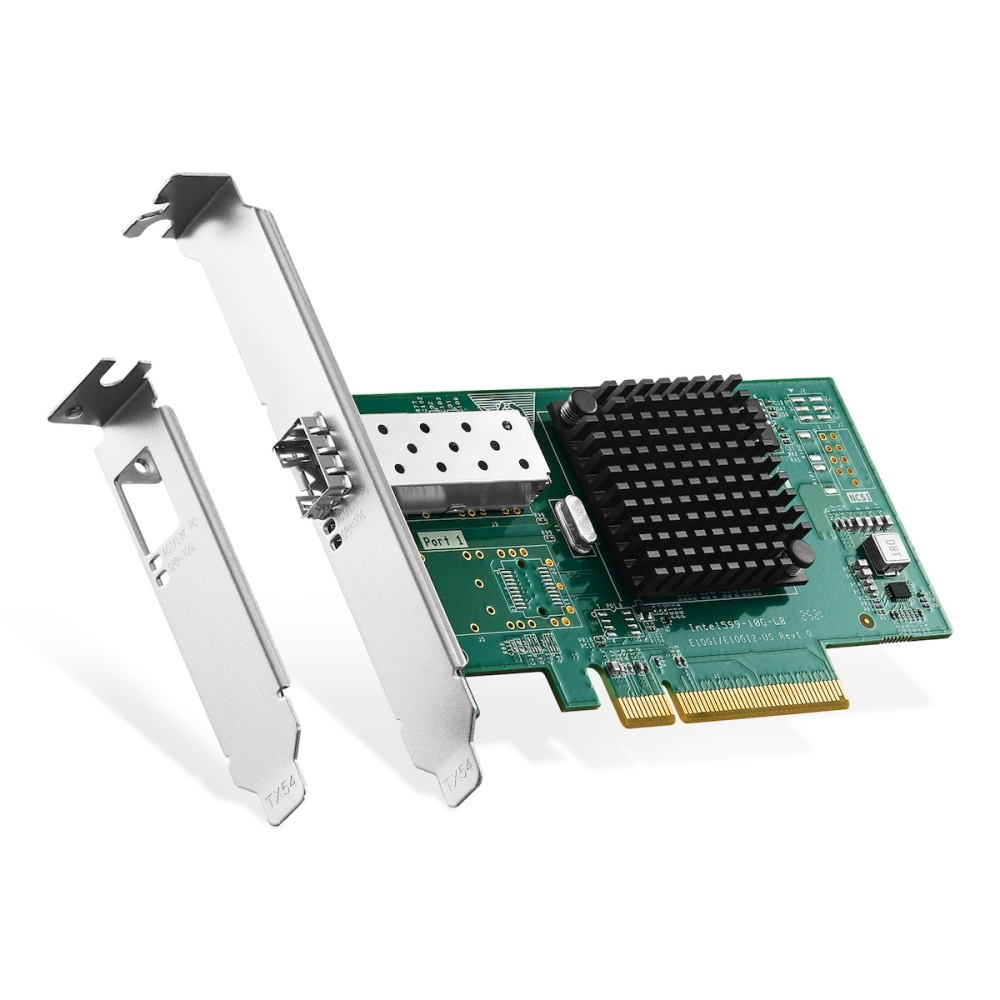

PCIe x8 Slot Compatibility - Equipped with a PCI Express 2.0 (5.0 GT/s) bus, it is compatible with PCIe X8 and X16 slots. It comes with a standard bracket and a low-profile bracket, supporting versatile installations in devices such as PCs, servers, workstations, and NAS. Note: Not compatible with PCI slots.
Multi-OS Support - Supports Windows 7/8/10, Server 2003/2008, Linux, FreeBSD, and VMware ESX. Drivers are easily downloadable via CD-ROM, user manual, Binardat’s official website, or Intel’s official website.
Network Features - Complies with IEEE 802.3 (1000BASE-SX, 1000BASE-LX, 1000BASE-ZX) standards, featuring an LC interface. Supports Intel Virtualization Technology for connectivity, as well as IPsec/LinkSec security protocols.
Easy to Use - Select the suitable bracket based on your chassis size, insert the adapter into the PCIe slot, install the driver, and connect to the network. LED indicators display link status and speed.

Received successfully

Coupon Code

Product Specifications

Model	NA10G1S
Chipset	Intel 82599 Ethernet Controller
Port number	SFP+ Slots 1, 1 LC fiber-optic connectors
Standard	IEEE802.3(1000BASE-SX,1000BASE-LX,1000BASE-ZX),LC
Data rate	10/100/1000/10G/Mbps
Interface	PCI express 8x
LED Indicator	2 (1/port,) Link (solid) and Activity (blinking) Link Speed (green = 10G / yellow = 1G)
Dimension	128.368.922mm
Support OS	Windows* Vista* SP1 Windows Server* 2003 SP2 Windows* Unified Storage Solution 2003 Windows Server* 2008 Linux* Stable Kernel version 2.6 Linux* RHEL 4,Linux* RHEL 5 Linux* SLES 9,Linux* SLES 10 FreeBSD* 7.0,UEFI* 1.1 VMware ESX* 3.x
Environment	Operating Temperature: 0 ℃-55 ℃ Relative Humidity: 10%-90%(non-condensing) Storage Temperature: -0℃-80℃ Relative Humidity: 5%-90%(non-condensing)
Other Features	• Speed/port: 10Gbps (fiber for servers and workstations) • Ethernet controller: Intel 82599ES • Connector and cable medium: LC fiber optic • Cabling type: MMF 62.5/50µm, up to 300m • Maximum bus speed and slot width: PCI Express 2.0/5.0GT/s x 8 lane • Ports: 1* SFP+ slots for SFP+ SR, SFP+ LR modules and direct attach SFP+ cables • Bus type: PCI express 2.0 (5 GT/s) • Bus width: PCI-E x 8/x 16 • Data rate supported per port: optical: 1GbE/10GbE direct attach: 10GbE • Network standards: IEEE 802.3 • Interrupt levels: INTA, MSI, MSI-X • Supported slot height(s): low profile and full height • Intel VT for connectivity1: virtual machine device queues (VMDq), virtual machine direct connect (VMDc) • Security features: IPSEC/LinkSec • IWARP/RDMA: NA • Typical power consumption: maximum power 10.7W, typical power: 10.0W • LED indicators: LINK (solid) and ACTIVITY (blinking), LINK SPEED (green = 10G/yellow = 1G)
