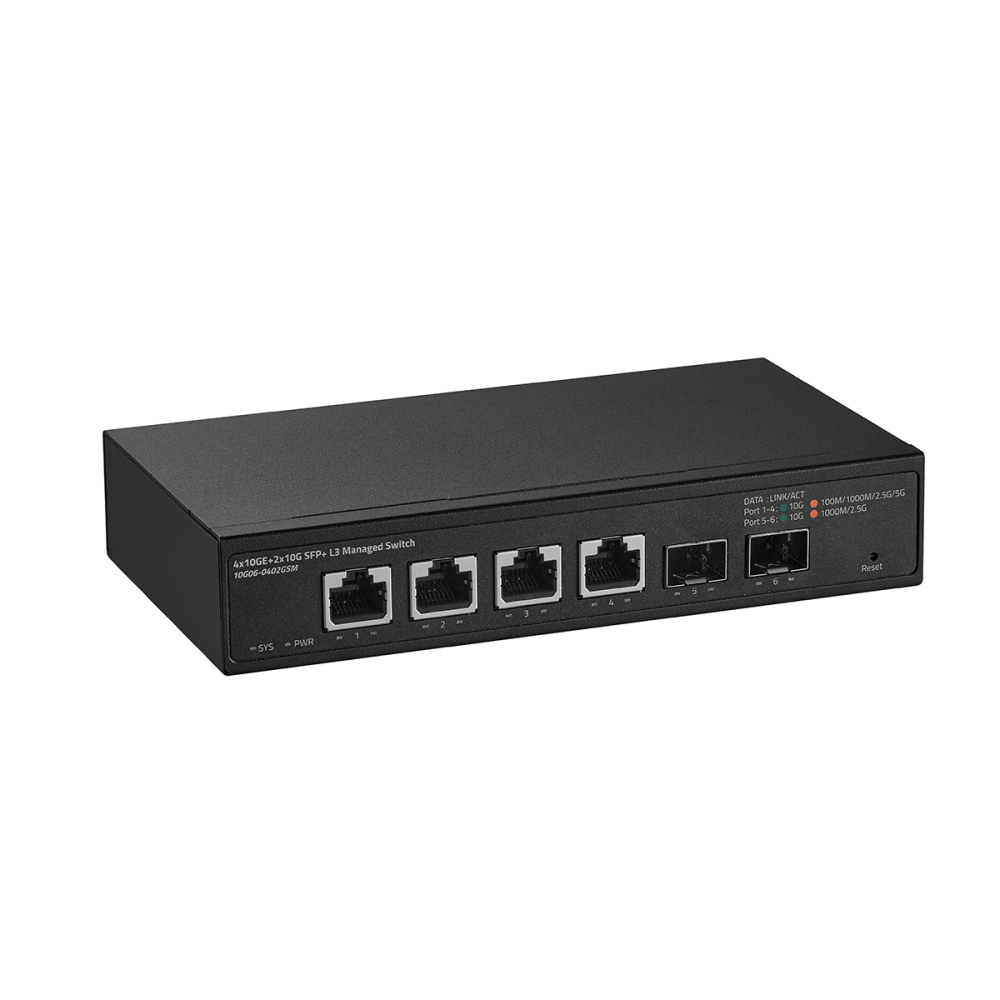

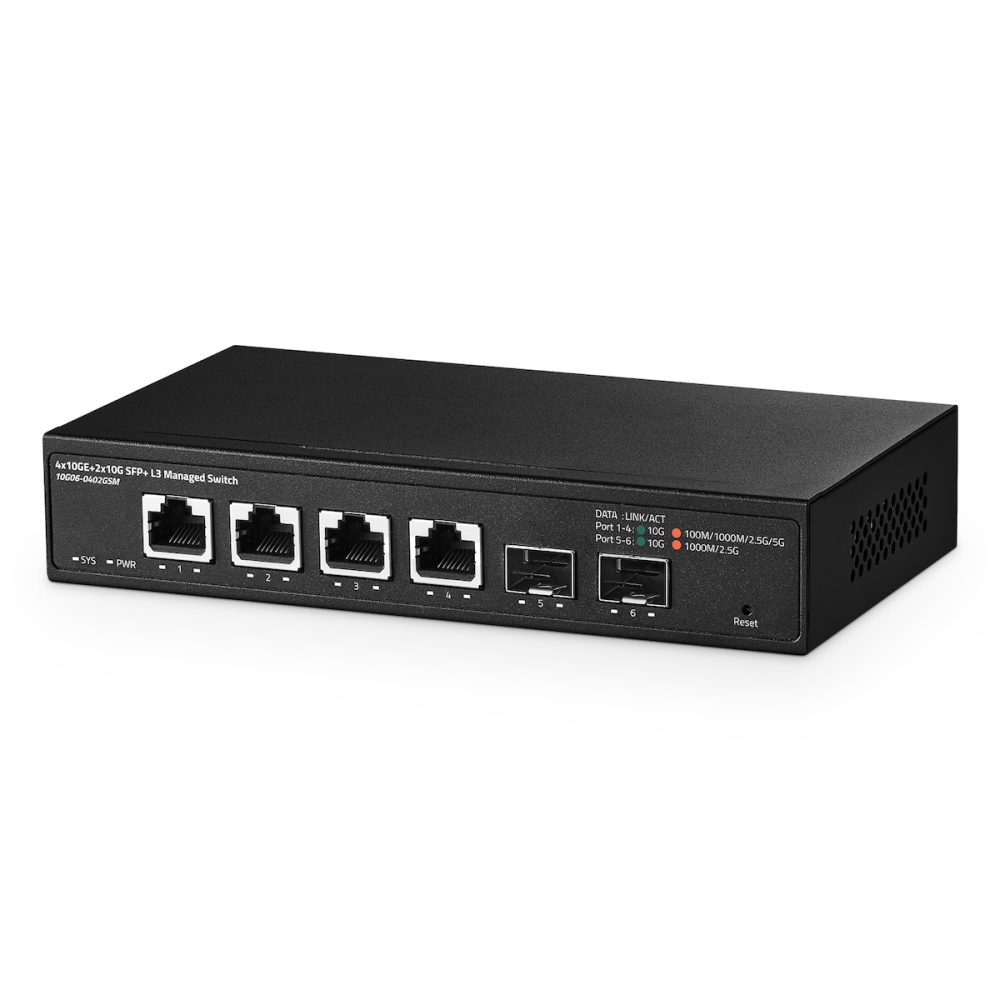

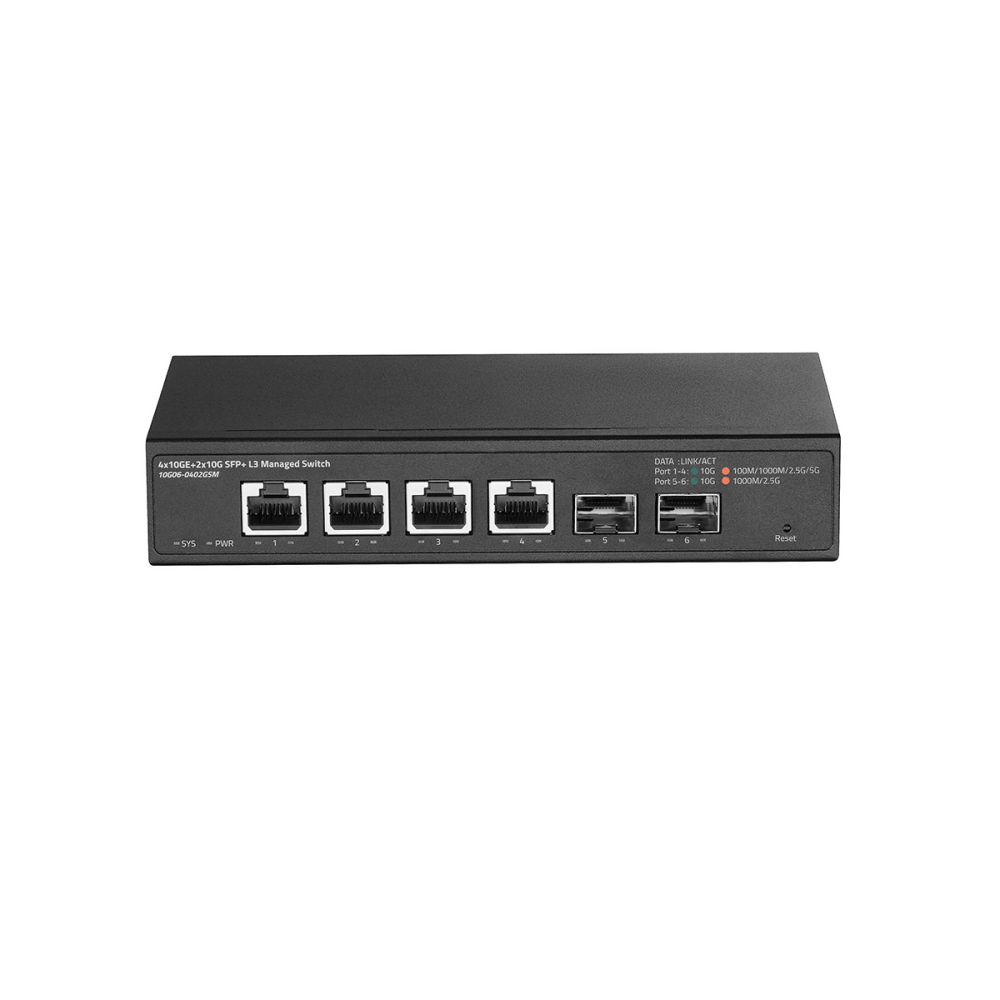

6 Port 10 Gigabit Managed Switch, 4x10G RJ45 Ethernet,Support 1G/2.5G/5G/10G, 2x10G SFP+, 120Gbps Bandwidth, L3 Web Managed, Binardat Metal Small Network Switch

SKU: 10G06-0402GSM

$209.99

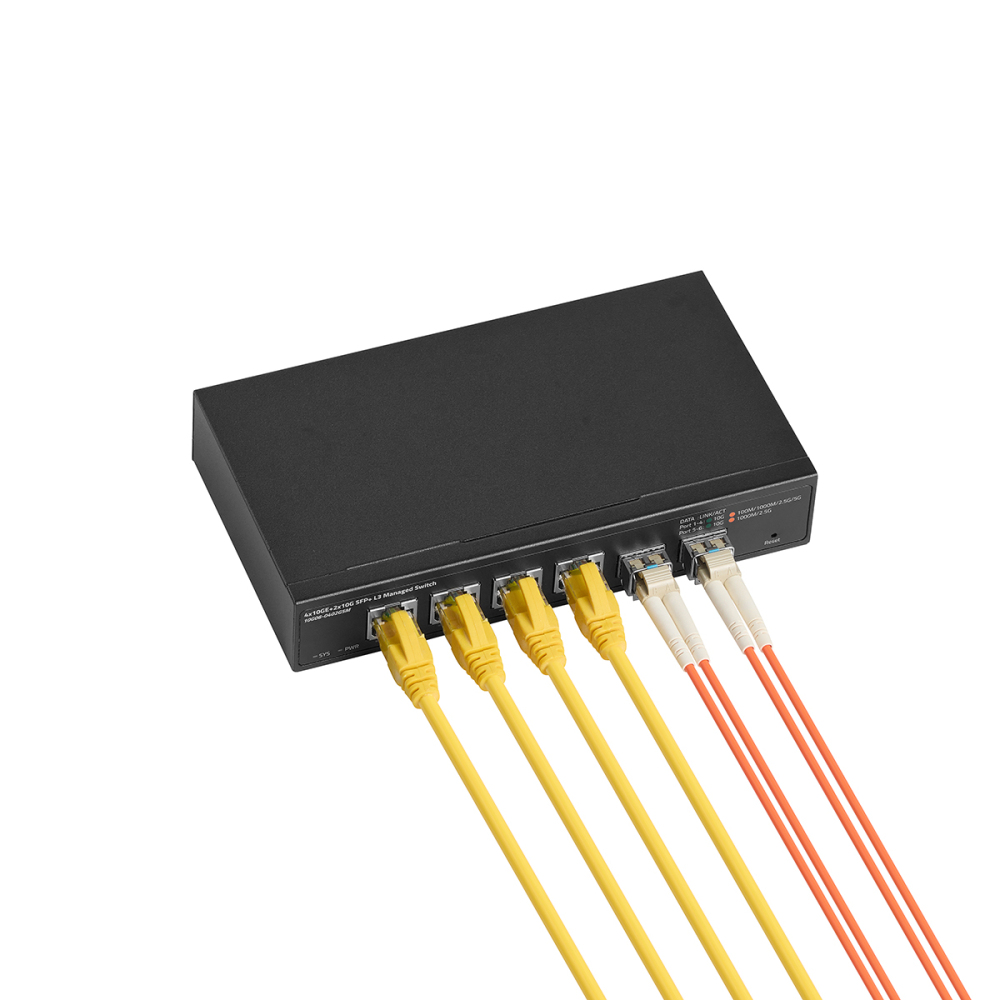

10 Gigabit - 4 x 10Gbps ethernet ports, every port auto-adaptive 10G/5G/2.5G/1G/100M rate; 2x10G SFP+ Slot, support standard SFP module 10G/2.5G/1G adaptive. Enable high-bandwidth connected, support wider rate range.
L3/L2 Web Managed - Support L3 Management, IPv4/IPv6, Static Route, OSPF, RIP, BGP4, DHCP Server, QoS, ACL, SNMP, STP/RSTP/MSTP(ERPS), Bandwidth Control, Flow Control, Spanning Tree, link aggregation LACP, loop detection; Support VLAN config, IP-MAC-VLAN Port Binding, device/port status query.
120Gbps Bandwidth - Switching capacity is 120Gbps, all ports can achieve non-blocking 10G line speed forwarding, with excellent data performance.
Network Protocol - Support IEEE802.3ae (10G Ethernet), IEEE802.3bz (2.5G/5G Ethernet), IEEE802.3ab (Gigabit Ethernet), IEEE802.3x (Flow control), IEEE802.3az (Efficient and energy-saving). 1000Base-TX: Cat5 or above UTP(≤100m), 2.5G/5G BASE-TX UTP Cat6 or above UTP(≤100m)，10GBASE-TX UTP Cat6A or above UTP(≤100m).Open standard SFP+ slot, support SR/LR/LRM/ER/ZR and other models(defalut without module)

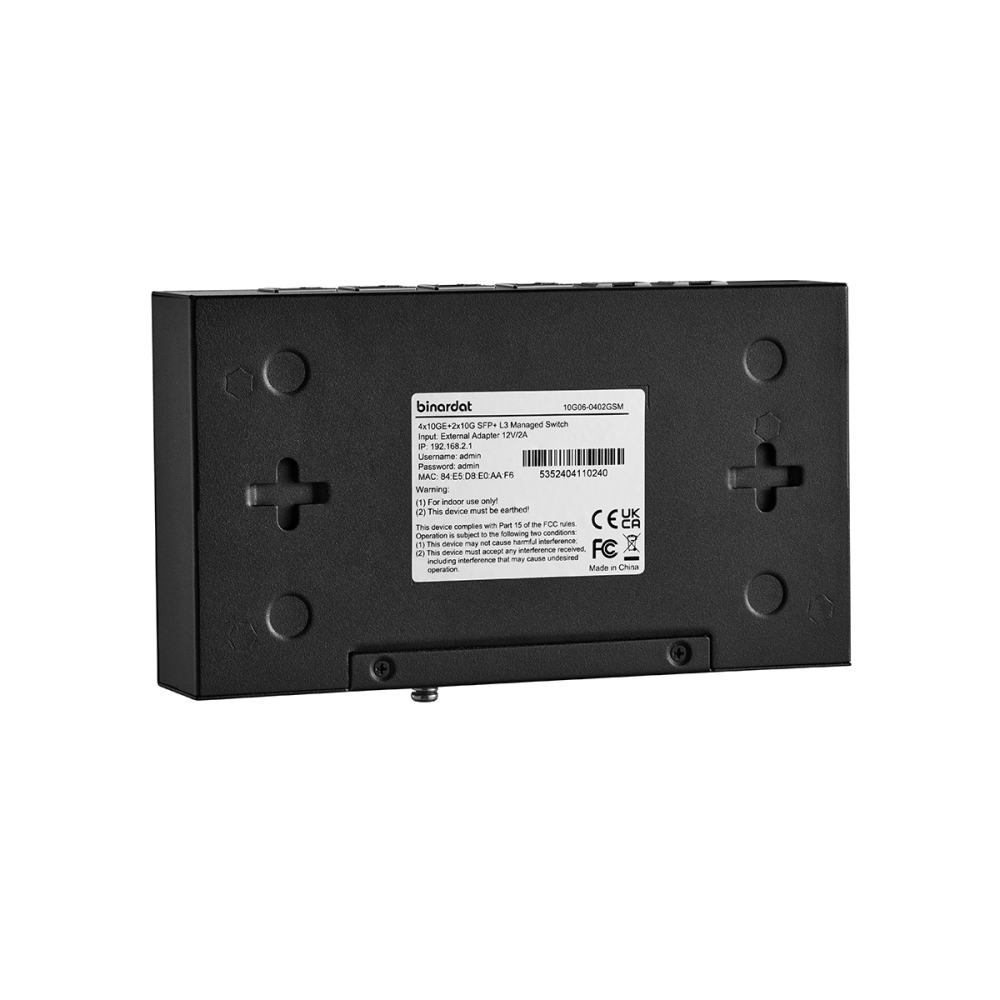

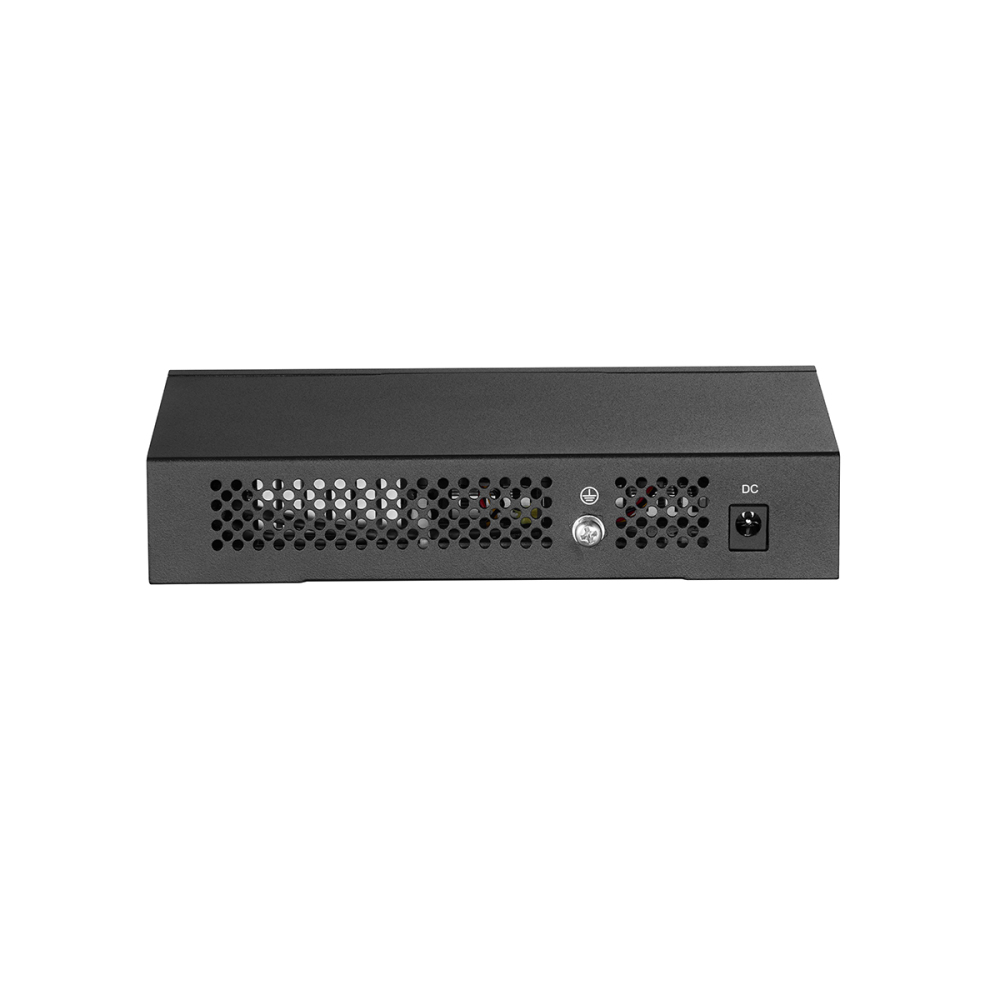

Widely Used - Metal case, LED indicators, Built-in fan for good heat dissipation(** About 40 decibels of sound, suggest install it in the chassis to reduce noise **), small size can be installed everywhere. Desktop/Wallmount, can be used as a core, distribution or access layer switch. Multiple devices can be connected, such as 2.5G/5G/10G WiFi6 AP, NAS, PCIe Adapter/NIC, Server, 8K video, and more.

Received successfully

Coupon Code

Technical Highlights

RJ45 ports support automatic port flipping (Auto MDI/MDIX);

Front-panel indicator lights monitor operational status and assist in fault analysis;

Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control;

Layer 3 routing protocol control adapts to diverse services, enabling efficient and secure information transmission;

IP dynamic routing protocols include support for RIP, OSPFv2, and IPv4/IPv6 static routes;

Supports two link aggregation modes: static aggregation and dynamic aggregation (LACP). This effectively increases link bandwidth, enhances link reliability, and enables load balancing and link backup;

Supports web-based management—more intuitive and efficient, facilitating installation and debugging for engineering and maintenance staff;

Supports HTTP/TFTP/FTP for file upload and download management.

Technical Parameter

Model	10G06-0402GSM
Interface	4100M/1000M/2.5G/5G/10Gbps RJ45 Ports 21000M/2.5G/10Gbp SFP+ Slots
Standard	IEEE802.3,IEEE802.3z,IEEE802.3ae,IEEE802.3x,IEEE802.1X,IEEE802.1Q，IEEE802.1p,IEEE802.1d,IEEE802.1w,IEEE802.3ad
Network Media(Cable)	100BASE-TX:UTP category 5, 5e cable（≤100m), 1000BASE-X:UTP category 5e,6 cable（≤100m） 2.5GBASE-X:UTP category 6,6A cable（≤100m） 1000BASE-X: MMF, SMF 10GBASE-X: MMF, SMF 10GBASE-SR:OM1/OM2/OM3 or above MMF (2m~300m) 10GBASE-LR:IEC's B1.1 and B1.3 SMF (2m~10000m)

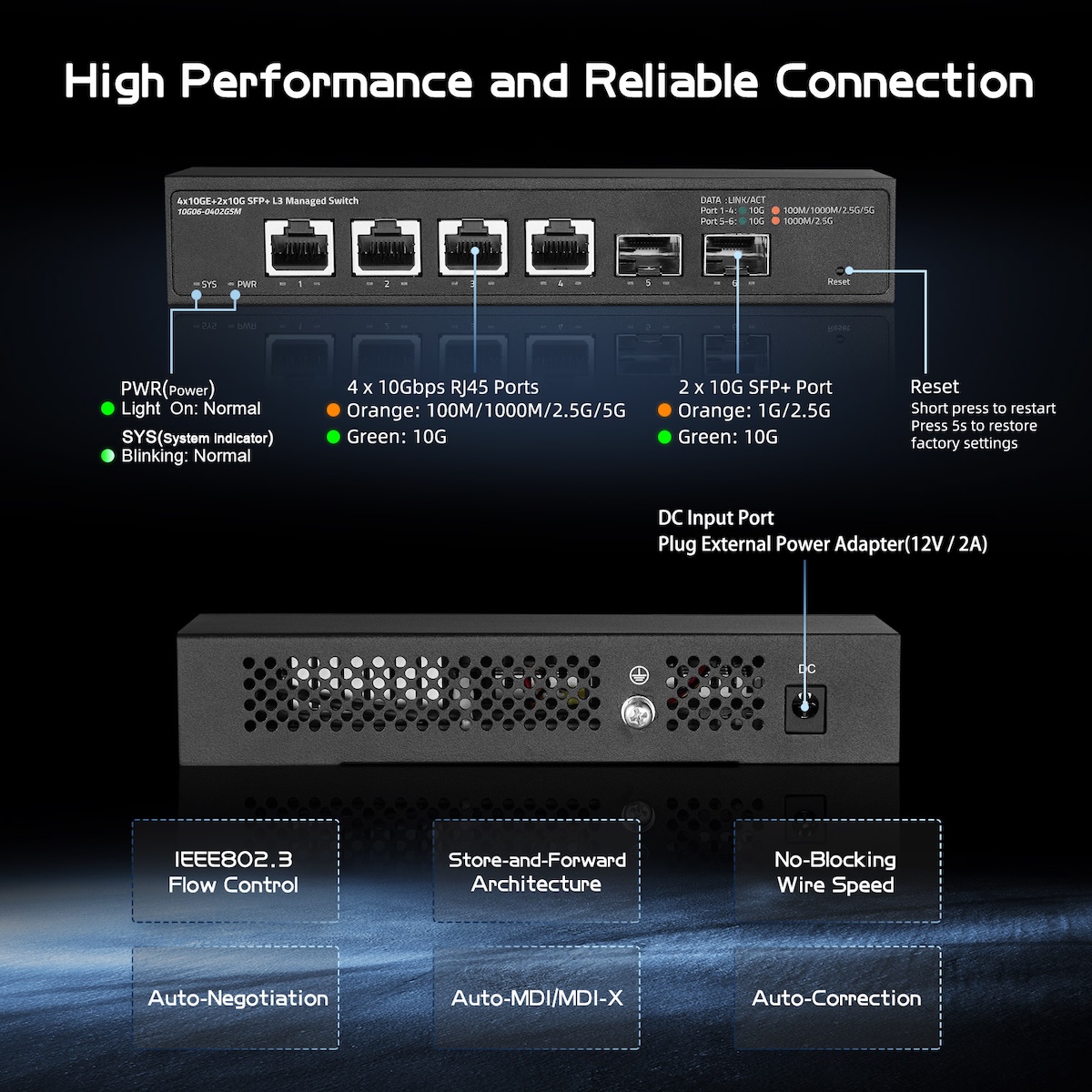

LED Indicator	PWR(Green), LNK/ACT(Green/Orange), SYS(Green)
MAC Address Table	16K, Auto-learning, Auto-aging
Jumbo Frame	12KByte
Packet Buffer	12Mbit
Transfer Mode	Store-and-forward
Switching Capacity	120Gbps
Packet Forward Speed	89.28Mpps
Input Power Supply	AC: 100-240V,50/60Hz
Dimensions(LWH)	1689432mm
Operating Temperature	0°C ~ 40 °C
Storage Temperature	-40 °C ~ 70 °C
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Surge Protection	Differential mode ±1KV,Common mode ±2KV
Electrostatic Standard	Contact ±6KV,Air ±8KV
L3 Features	DHCP Server, DHCPv6 Server, Static Route(IPV4/IPV6), Route Aggregation, RIP v1/v2, OSPF v2, BGP4
L2 Features	VLAN, QoS, Link Aggregation, LLDP, IGMP, EEE, STP/RSTP/MSTP
