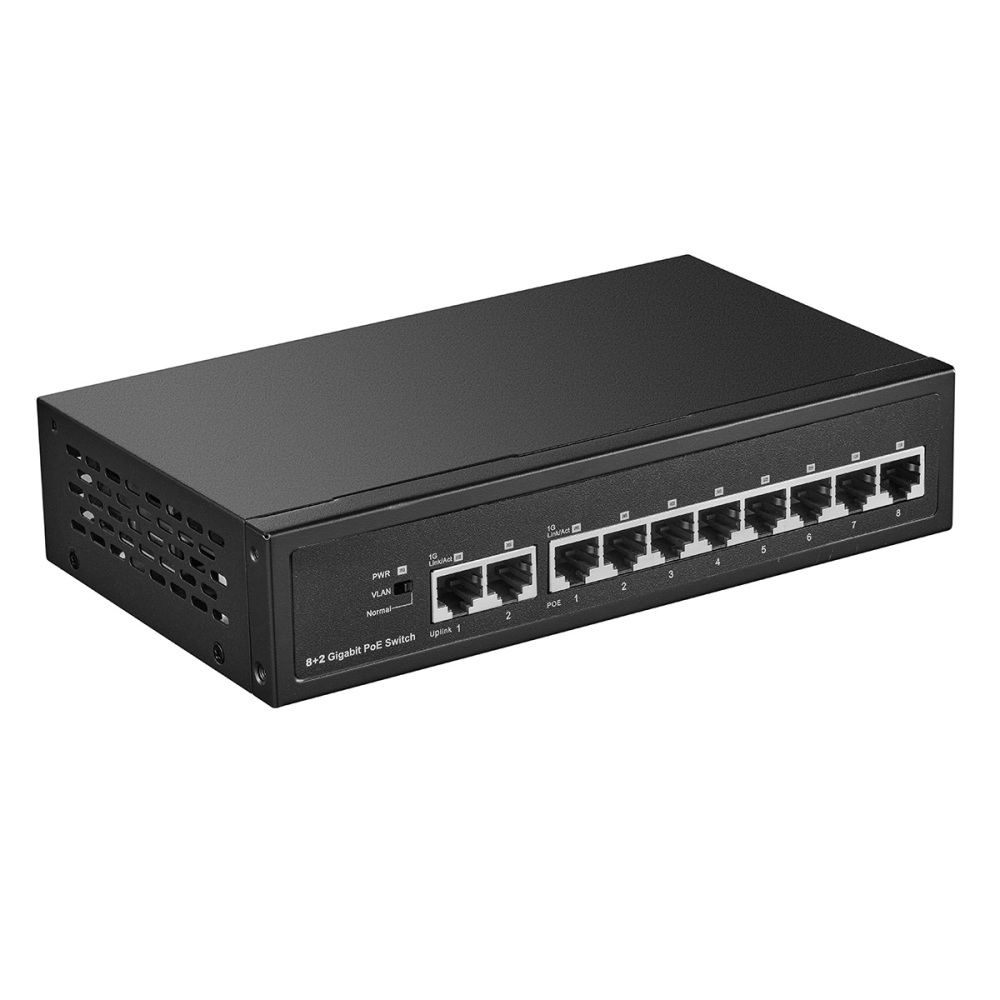

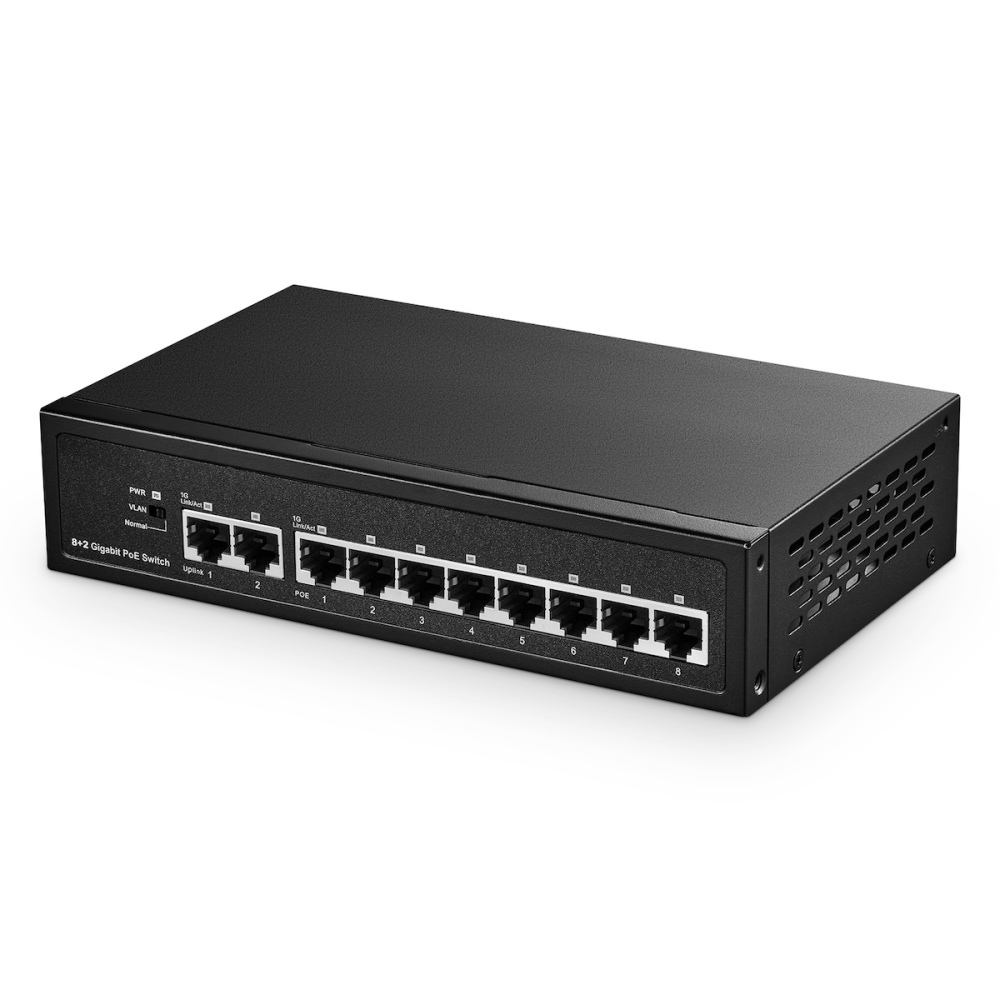

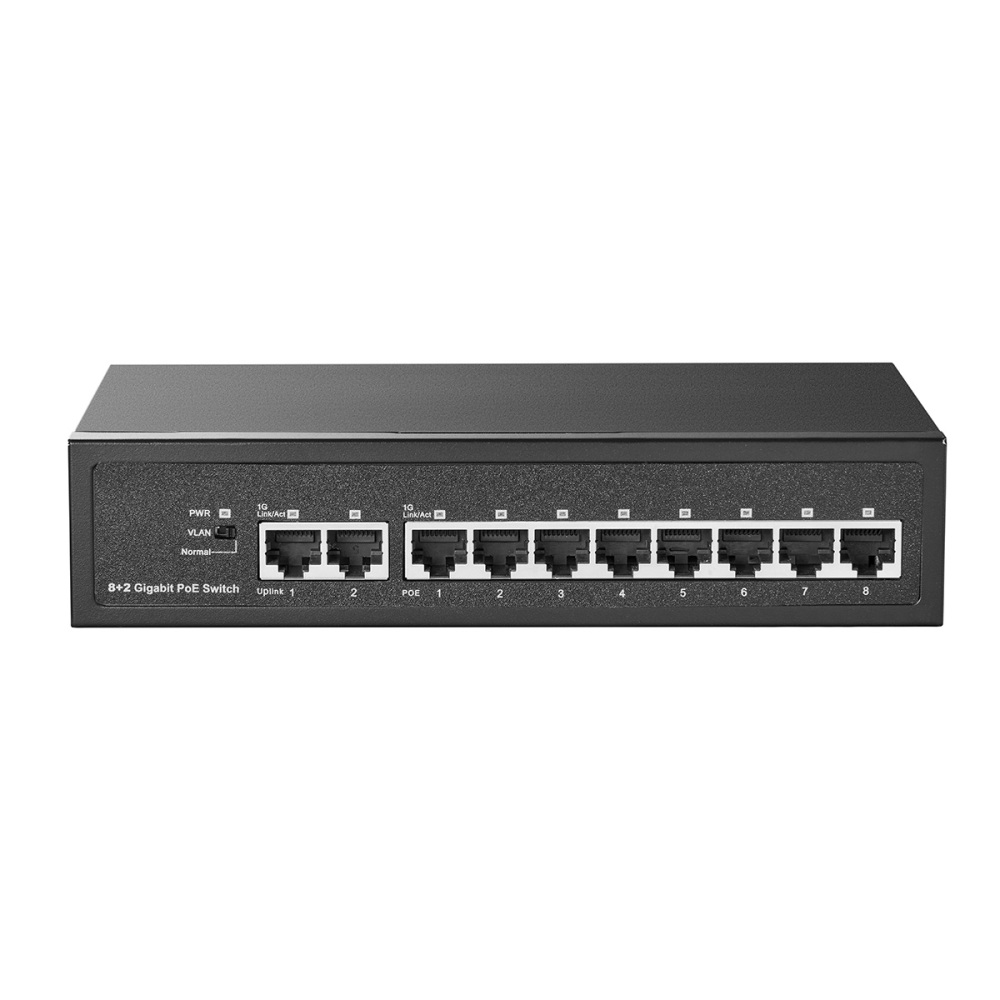

10 Port Gigabit POE Switch, 8 POE+ 1000Mbps, 2 Gigabit Uplink, IEEE802.3af/at, 120W Internal Power Supply, Metal Case Unmanaged Plug and Play Binardat Switch

SKU: G10-082GP

$51.99

10 Gigabit Ports - Features 8 Gigabit PoE ports and 2 Gigabit uplink ports (non-PoE). All ports support 10/100/1000Mbps speeds, with a total bandwidth of 20Gbps and gigabit speed available per port.

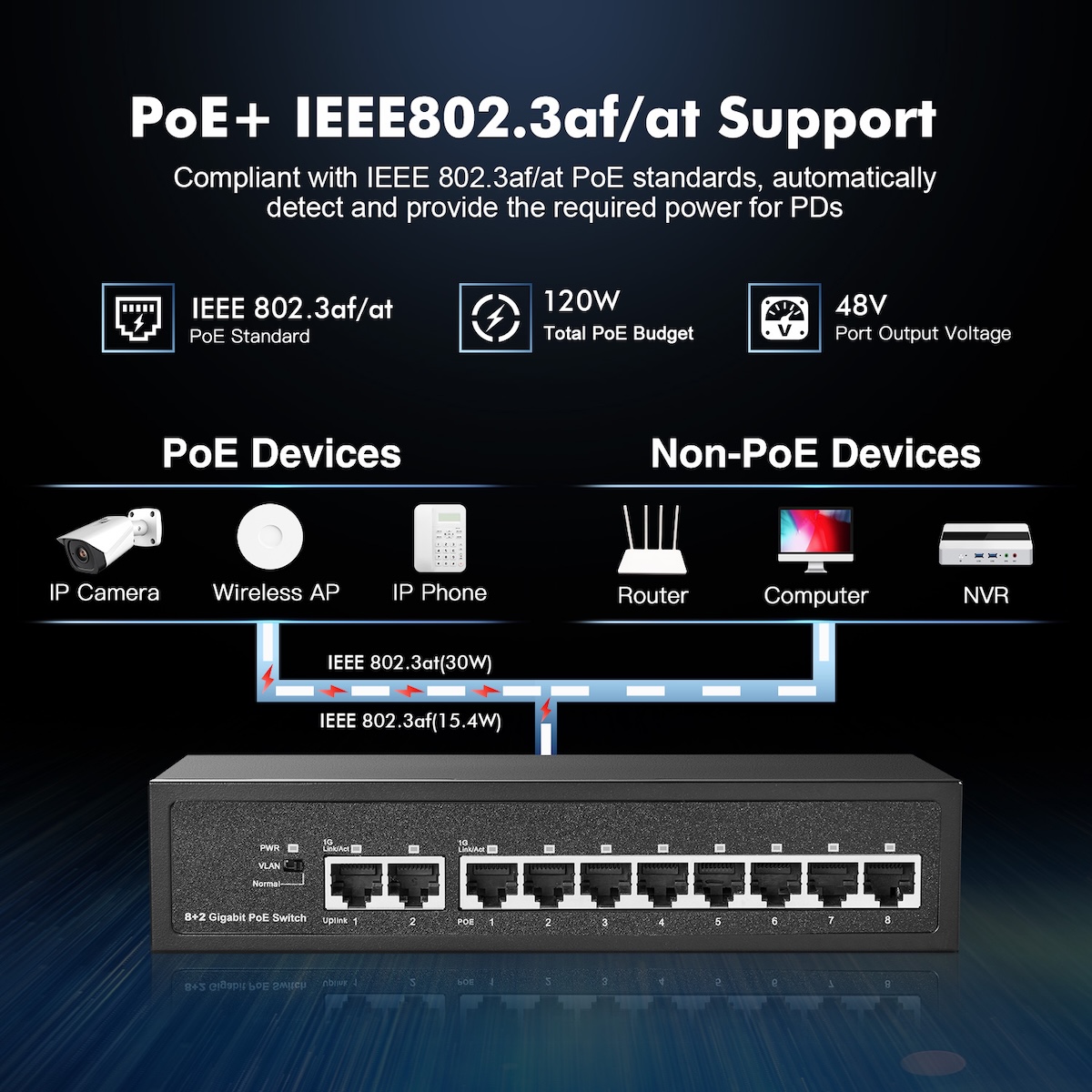

IEEE 802.3 af/at Compliance - Delivers PoE power that meets IEEE 802.3af/at standards, with a built-in 120W power supply. The maximum power output per port reaches 30W, and the output voltage ranges from 44V to 57V. Does not support power delivery for passive 24V PoE devices.
Unmanaged Plug & Play - Supports power detection to automatically identify PoE-enabled devices. It is also compatible with non-PoE devices for data transmission. Simply connect the power cord and Ethernet cable to your devices—no additional configuration is required.
Easy Installation - Built with a metal casing and fanless design, it operates silently during use. Suitable for installation in various locations, such as desktops, low-voltage boxes, and cabinets.
Wide Application - Features a durable metal housing and LED indicator lights. With gigabit speeds, it is ideal for IP cameras, wireless access points, home networks, and office networks. Lifetime technical support is provided.

Received successfully

Coupon Code

Description

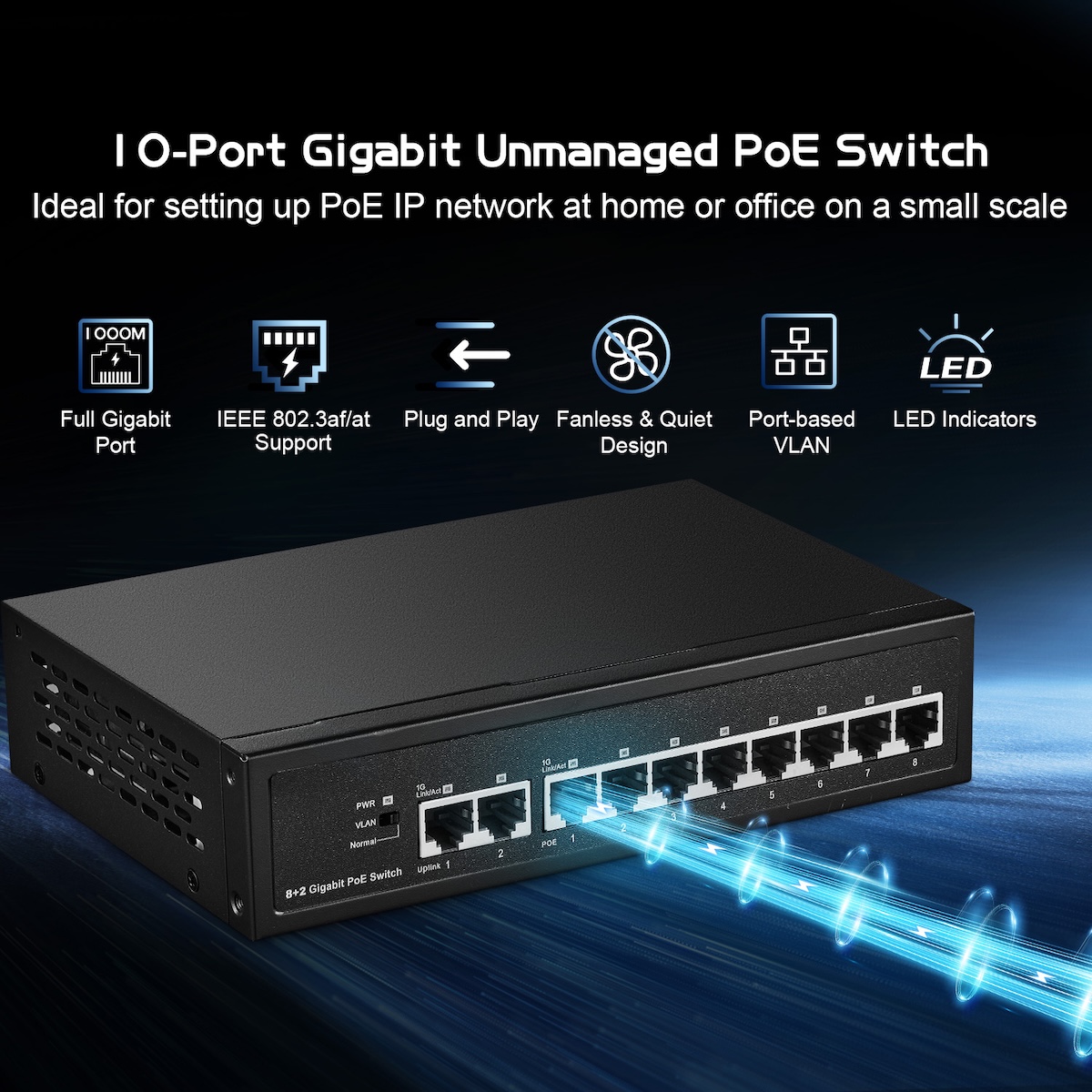

The G10-082GP is a gigabit unmanaged PoE switch, featuring 10 auto-negotiating 10/100/1000Mbps RJ45 ports—all supporting wire-speed forwarding. Of these ports, 8 include PoE capability: they comply with the IEEE 802.3at standard and offer backward compatibility with IEEE 802.3af. As a PoE source device, it automatically detects and identifies Powered Devices (PDs) that meet IEEE 802.3at/af standards, then supplies power to them directly via Ethernet cables.
Integrated Exclusive VLAN Isolation addresses the networking needs of diverse security monitoring systems. The dedicated Uplink port ensures seamless handling of sudden traffic surges while maintaining an unobstructed uplink channel.
Designed for simplicity and convenience, the TXE226 requires no configuration and supports plug-and-play functionality. It enables flexible expansion of home and office networks—free from the constraints of power line layouts—making it an ideal solution for small-to-medium-sized PoE switch applications.

Technical Highlights

Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x and IEEE 802.3az standards;
Supports the IEEE 802.3at standard and is backward compatible with the IEEE 802.3af standard;
Equipped with VLAN Isolation to meet the needs of security monitoring;
Flow control mode: Full-duplex adopts the IEEE 802.3x standard, and half-duplex adopts the Backpressure standard;
Adopts the store-and-forward mode;
The maximum PoE output per port is 30W, and the maximum total PoE output power reaches 90W.

Technical Parameter

Model	G10-082GP
Ethernet	10 auto-negotiation 10/100/1000Mbps RJ45 ports (Auto MDI/MDIX)
ChipSet	EN8850DH*2 + JW5858
Standard	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az
Network Media(Cable)	100BASE-TX: UTP category 5, 5e cable（≤100m） 1000BASE-TX UTP category 5e, 5 cable（≤100m）
MAC Address Table	2K, Auto-learning, Auto-updating
Transfer Mode	Store-and-Forward
Switching Capacity	20Gbps
Packet Forward Speed	14.88Mpps
Power supply	180-240VAC, 50/60Hz
Power Consumption	Maximum (PoE Full Load): 94W (220V/50Hz)
Dimensions (LWH)	200×119×44.5mm
PoE Ports (RJ45)	1-8 port compliant with IEEE 802.3at/af standards, PoE Output Power: Maximum: 90W
Power Supply Pins	1/2 (+), 3/6 (-)
Temperature	Operating Temperature: 0°C ~ 40 °C Storage Temperature: -40 °C ~70°C

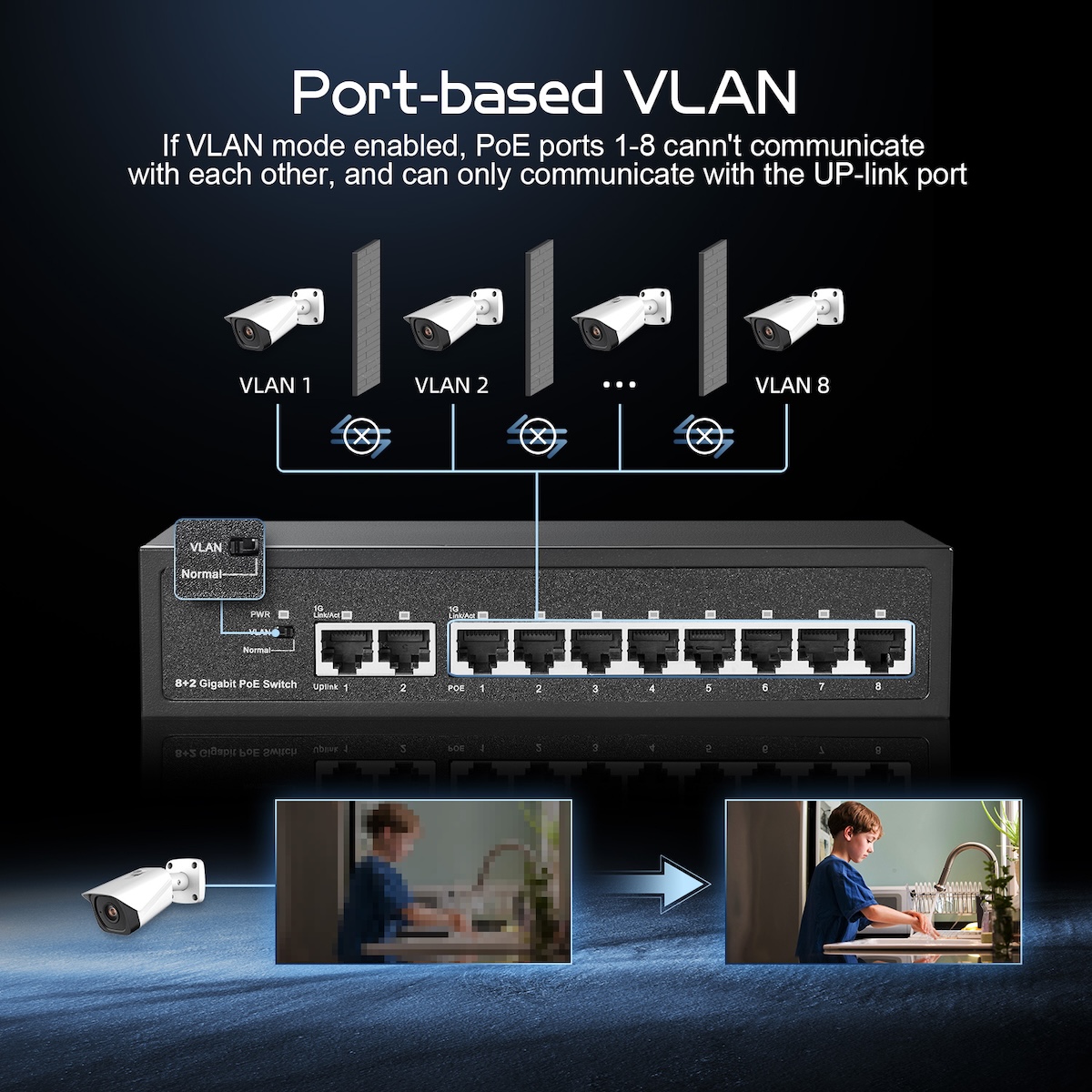

Extend Mode	VLAN：Isolation mode. Ports 1 to 8 are isolated and communicate with the upstream interface. Default：Normal mode, all interfaces can communicate with each other.
Humidity	Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing

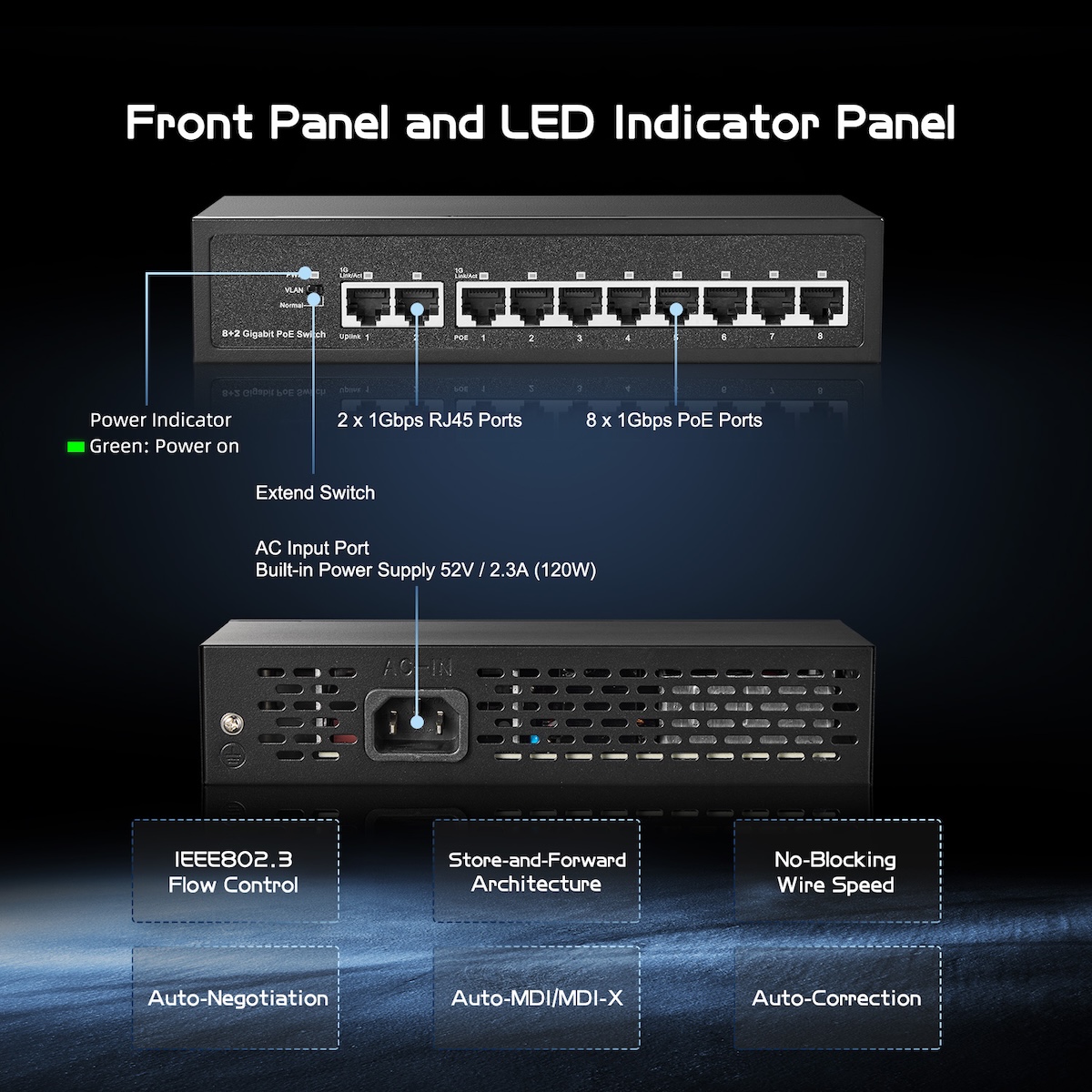

Led Indicator	Per Unit: PowerPer Port: Link/Act
